FRAME FITTINGS
KZ1100B2 GPZ 1982 USA CANADA

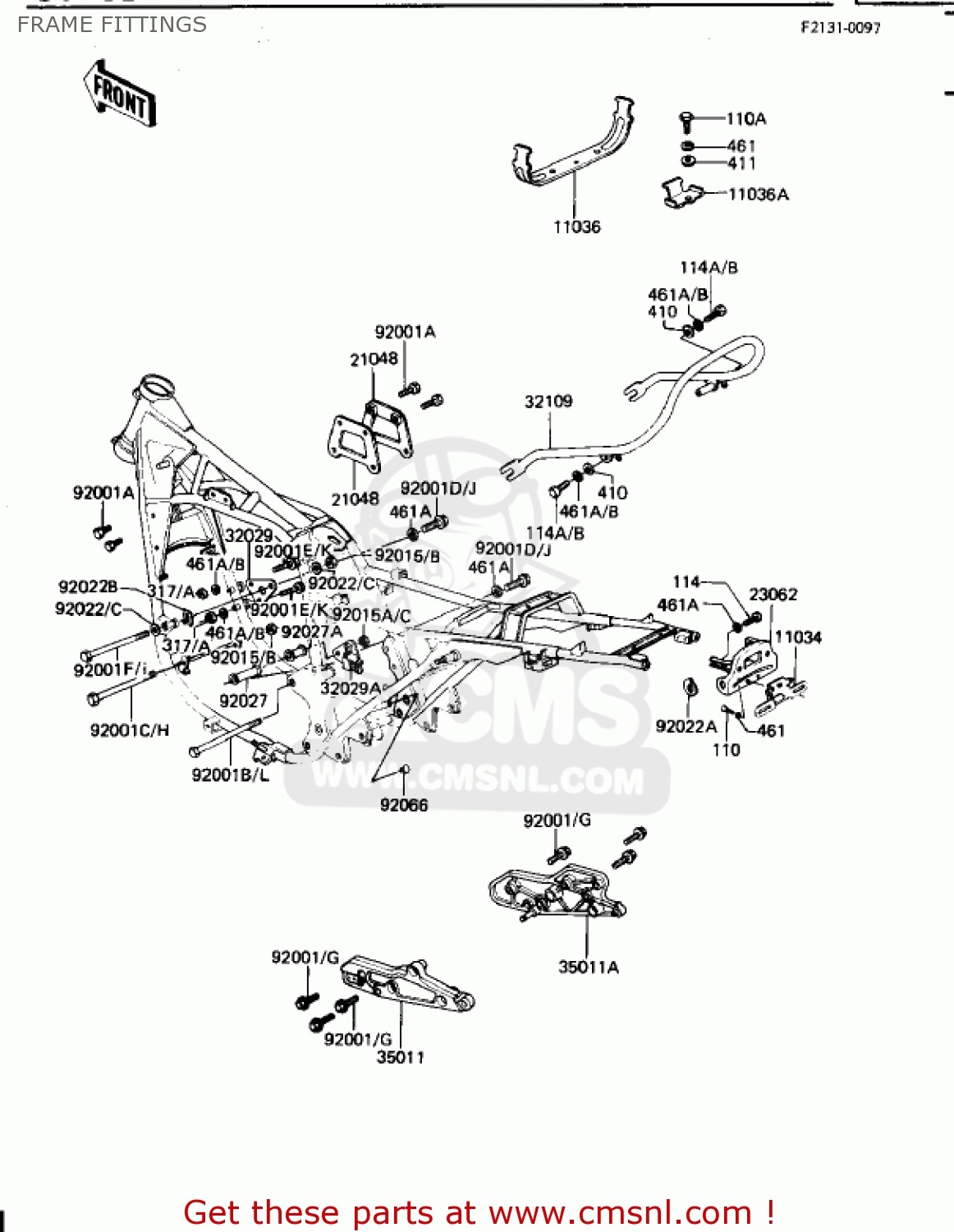

Frame fittings diagram KZ1100B2 GPZ 1982 USA CANADA
FRAME FITTINGS KZ1100B2 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11034
110341922
ref: 11034
BRACKET,LICENSE PLATE
€ 13.50
11036
110361065
ref: 11036
BRACKET-A,CNTRL UNIT
€ 8.50
11036A
110361066
ref: 11036A
BRACKET-A,CNTRL UNIT
€ 3.00
21048
210481001
ref: 21048
PLATE-COIL
€ 14.00
23062
230621032
ref: 23062
BRACKET-COMP,TAIL LAM
€ 117.50
32029
320291142
ref: 32029
BRACKET-ENGINE,FR,UPP
€ 13.00
32029A
320291153
ref: 32029A
BRACKET-ENGINE,RR,RH
€ 13.50
32109
321091029
ref: 32109
GRIP-FRAME,BLACK
€ 129.50
35011
350111207
ref: 35011
STAY,MUFFLER,LH
€ 262.50
35011A
350111208
ref: 35011A
STAY,MUFFLER,RH
€ 285.00
92001
920011095
ref: 92001
BOLT,8X28
€ 4.50
92001A
92001137
ref: 92001A
BOLT,HEX HEAD,6M/M
€ 4.00
92001B
920011655
ref: 92001B
BOLT,FLANGED,12X28.5,
€ 27.00
92001C
920011585
ref: 92001C
BOLT,FLANGED,10X155
€ 14.00
92001D
920011579
ref: 92001D
BOLT,FLANGED,8X45
€ 3.00
92001E
920011582
ref: 92001E
BOLT,FLANGED,8X65
€ 3.50
92001F
920011624
ref: 92001F
BOLT FLANGED
€ 26.00
92001G
920011508
ref: 92001G
BOLT,FLANGED,8X28,BLA
€ 3.00
92001H
920011620
ref: 92001H
BOLT
€ 14.00
92001I
920011624
ref: 92001I
BOLT FLANGED
€ 26.00
92001J
920011613
ref: 92001J
BOLT,FLANGED,8X45
€ 3.00
92001K
920011616
ref: 92001K
BOLT,FLANGED,8X65
€ 5.50
92001L
920011655
ref: 92001L
BOLT,FLANGED,12X28.5,
€ 27.00
92015
920151189
ref: 92015
NUT,LOCK,10MM,BLACK
€ 4.50
92015A
920151190
ref: 92015A
NUT,LOCK,12MM,BLACK
€ 4.50
92015B
920151429
ref: 92015B
NUT,10MM
€ 4.50
92015C
92019009
ref: 92015C
NUT,LOCK,12MM
€ 5.00
92022
920221022
ref: 92022
WASHER,10.5X22X4.5
€ 3.00
92022A
920221230
ref: 92022A
WASHER,SIGNAL LAMP BR
€ 7.00
92022B
920221259
ref: 92022B
WASHER,U FORMED
€ 4.50
92022C
920221022
ref: 92022C
WASHER,10.5X22X4.5
€ 3.00
92027
920271310
ref: 92027
COLLAR,13X25X54
€ 27.50
92027A
920271311
ref: 92027A
COLLAR,13X25X29.5
€ 17.50
92066
920661034
ref: 92066
PLUG,FRAME END
€ 3.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112B0614
ref: 110A
BOLT-UPSET 6X14
€ 2.50
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
114A
114B0870
ref: 114A
BOLT-HEX HEAD,8X70
€ 3.00
114B
115C0870
ref: 114B
BOLT-SMALL-UPSET,8X70
€ 3.00
317
317B0800
ref: 317
NUT,8M/M
€ 0.50
317A
317C0800
ref: 317A
NUT-HEX-SMALL,8MM,BLA
€ 0.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
461B
461K0800
ref: 461B
WASHER-SPRING,8MM,BLA
€ 1.50
