CYLINDER HEAD (KZ1100-B1)
KZ1100B2 GPZ 1982 USA CANADA

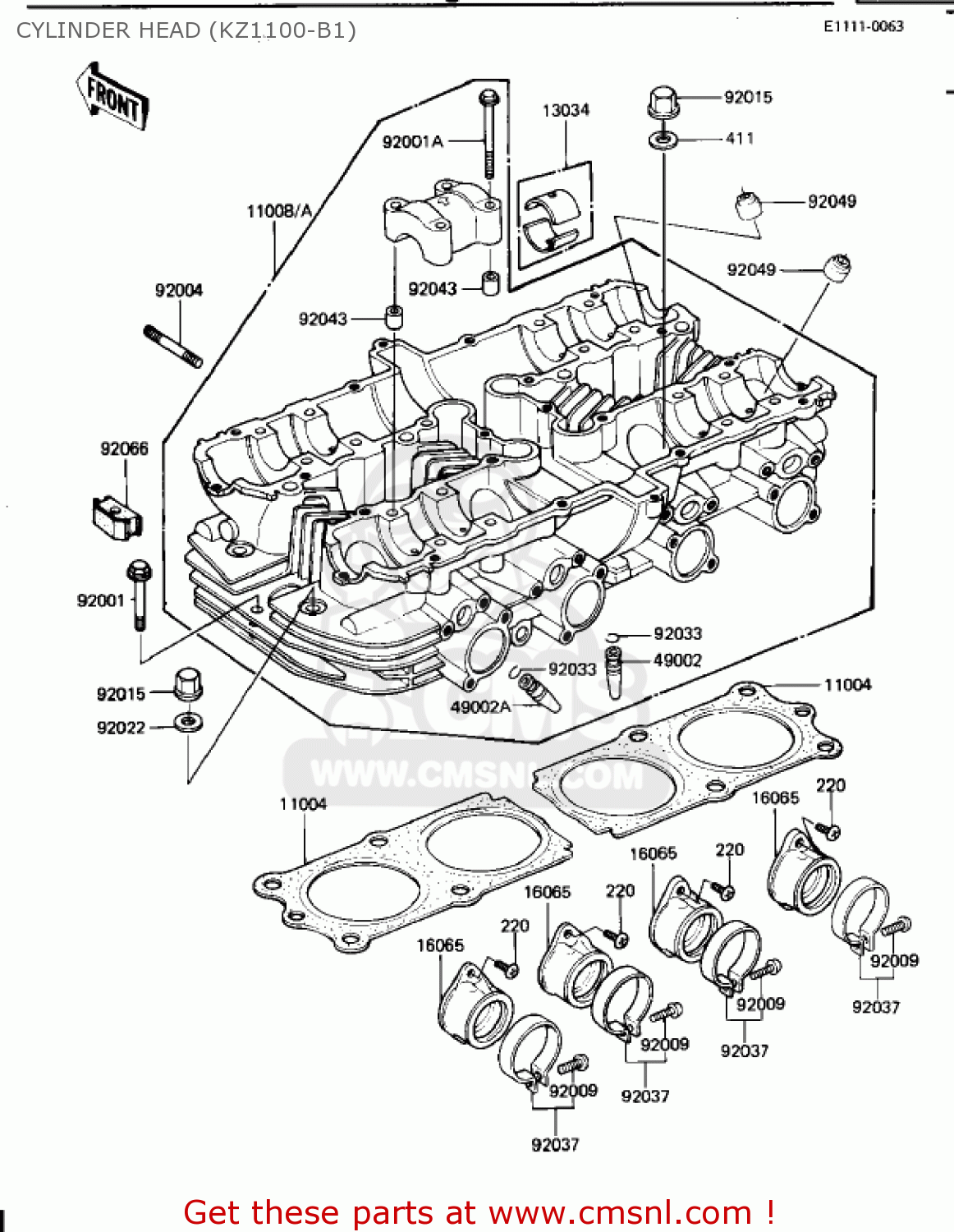

Cylinder head (kz1100-b1) diagram KZ1100B2 GPZ 1982 USA CANADA
CYLINDER HEAD (KZ1100-B1) KZ1100B2 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11004
110041105
ref: 11004
GASKET-HEAD,CYLINDER (MCA)
€ 58.50
11008
110081017
ref: 11008
US
CYLINDER HEAD,COMPLETE
€ 705.50
11008A
110081018
ref: 11008A
CN
HEAD-COMP-CYLINDER
€ 1,013.00
13034
13034030
ref: 13034
BUSHING,CAMSHAFT
€ 15.00
16065
160651037
ref: 16065
HOLDER,THROTTLE
€ 37.50
49002
12013009
ref: 49002
GUIDE-VALVE,INTAKE
€ 18.00
49002A
490021002
ref: 49002A
GUIDE,EXHAUST VALVE
€ 16.00
92001
92003092
ref: 92001
BOLT-HEX HEAD,6X45
€ 4.50
92001A
920021881
ref: 92001A
BOLT, 6X43
€ 4.50
92004
920041069
ref: 92004
STUD,8X30
€ 4.50
92009
92011037
ref: 92009
SCREW,PAN HEAD 5X25
€ 2.50
92015
92015076
ref: 92015
NUT,FLANGED CAP,10MM
€ 9.00
92022
920221005
ref: 92022
WASHER,10.5X22X1.6
€ 3.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92037
92037077
ref: 92037
CLAMP,HOLDER
€ 7.00
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92049
92049016
ref: 92049
OIL SEAL,RV37129.5
€ 13.50
92066
920661106
ref: 92066
PLUG,CYLINDER HEAD CO
€ 19.00
220
220C0616
ref: 220
SCREW-PAN-CROS,6X12,B
€ 2.50
411
411B1000
ref: 411
WASHER-PLAIN,10MM
€ 0.50
