CHASSIS ELECTRICAL EQUIPMENT
KZ1100B2 GPZ 1982 USA CANADA

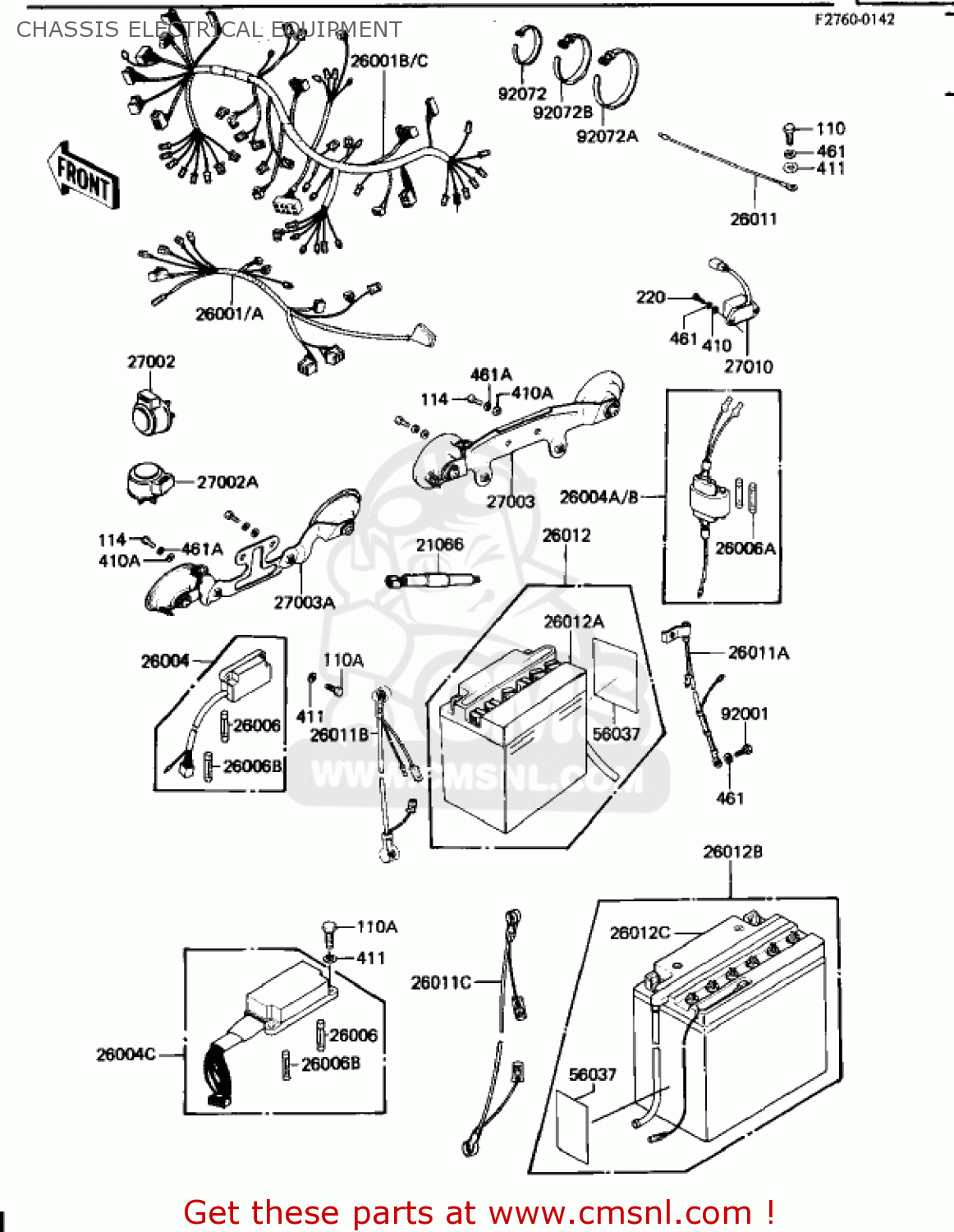

Chassis electrical equipment diagram KZ1100B2 GPZ 1982 USA CANADA
CHASSIS ELECTRICAL EQUIPMENT KZ1100B2 GPZ 1982 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
21066
21066026
ref: 21066
REGULATOR-VOLTAGE
€ 13.00
26001
260011263
ref: 26001
HARNESS,CONTROL UNIT
€ 257.00
26001A
260011328
ref: 26001A
HARNESS,ELECTRIC CONT
€ 199.00
26001B
260011354
ref: 26001B
HARNESS,MAIN
€ 154.00
26001C
260011366
ref: 26001C
HARNESS,MAIN
€ 181.00
26004
260041011
ref: 26004
FUSE-ASSY
€ 72.00
26004A
260041014
ref: 26004A
FUSE-ASSY,ACCESSORY
€ 47.00
26004B
260041016
ref: 26004B
FUSE-ASSY,ACCESSORY
€ 41.00
26004C
260041017
ref: 26004C
FUSE-ASSY
€ 49.00
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
260061002
ref: 26006A
FUSE,10A,L=30M/M
€ 3.00
26006B
260061005
ref: 26006B
FUSE,30A,L=25M/M
€ 3.00
26011
260111069
ref: 26011
WIRE,HEAD LAMP GROUND
€ 1.50
26011A
260111119
ref: 26011A
WIRE-LEAD,BATTERY,(-)
€ 23.50
26011B
260111126
ref: 26011B
WIRE-LEAD,STARTER MOT
€ 34.00
26011C
260111154
ref: 26011C
WIRE-LEAD,STARTER MOT
€ 24.00
26012
260121013
ref: 26012
US
BATTERY,12V 16AH
€ 80.50
26012A
260121015
ref: 26012A
CN
BATTERY,12V 16AH
€ 80.50
26012B
260121053
ref: 26012B
US
BATTERY SENSOR,FB,12N16-3B
€ 49.50
26012C
260121054
ref: 26012C
CN
BATTERY,12V 16AH,12N1
€ 91.50
27002
27002011
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 69.50
27002A
27002016
ref: 27002A
RELAY-ASSY,HAZARD
€ 26.50
27003
270031054
ref: 27003
HORN
€ 155.50
27003A
270031143
ref: 27003A
HORN,DOUBLE
€ 160.00
27010
270101024
ref: 27010
SWITCH,RESERV LIGHTIN
€ 149.00
56037
560401036
ref: 56037
US
WARNING, BATTERY
€ 2.00
92001
92001137
ref: 92001
BOLT,HEX HEAD,6M/M
€ 4.00
92072
92072031
ref: 92072
BAND,MIDDLE
€ 3.00
92072A
92072032
ref: 92072A
BAND,LONG
€ 3.00
92072B
92072056
ref: 92072B
BAND,RUBBER
€ 3.00
110
112G0612
ref: 110
BOLT-UPSET
€ 2.50
110A
112B0622
ref: 110A
BOLT, 6X22
€ 2.50
114
115C0816
ref: 114
BOLT-SMALL,8X16,BLACK
€ 2.00
220
220B0620
ref: 220
SCREW-PAN HEAD,6X20
€ 2.50
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
410A
920221554
ref: 410A
WASHER,PLAIN,8MM
€ 3.00
411
411B0600
ref: 411
WASHER-PLAIN,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461K0800
ref: 461A
WASHER-SPRING,8MM,BLA
€ 1.50
