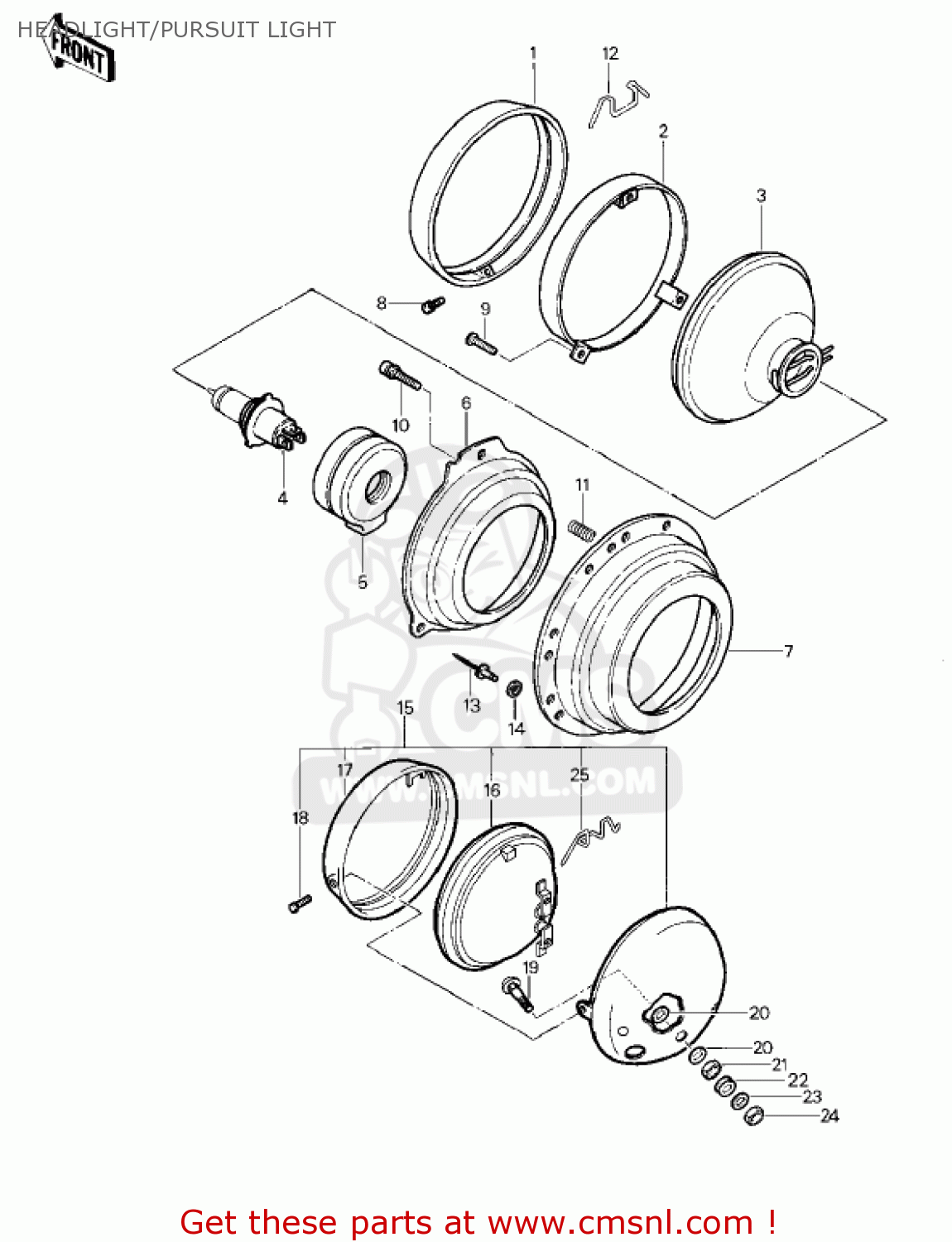

HEADLIGHT/PURSUIT LIGHT

ref

part #

description

quantity

1

230064002
ref: 1

RIM,HEAD LAMP

€ 44.00

2

140204002
ref: 2

RETAINER

€ 9.00

3

230071009
ref: 3

LENS UNIT, HEAD LAMP

€ 127.00

4

920691002
ref: 4
HALOGEN

BULB,12V-60155W

€ 15.00

5

490161016
ref: 5

COVER-SEAL

€ 16.00

6

130914007
ref: 6

HOLDER

€ 16.00

7

230054003
ref: 7

HEADLAMP BODY

€ 9.50

8

920094009
ref: 8

SCREW,PAN HEAD,4X14

€ 1.00

9

920094007
ref: 9

SCREW,PAN HEAD

€ 1.00

10

920094008
ref: 10

FOCUS ADJUSTING SCREW

€ 1.00

11

920814014
ref: 11

SPRING

€ 2.50

12

920814015
ref: 12

SPRING CLIP

€ 4.00

13

534YW0608
ref: 13

RIVET

€ 0.50

14

920223539
ref: 14

WASHER

€ 0.50

15

230164004
ref: 15

LAMP ASSY PURSUIT

€ 165.50

16

230071001
ref: 16
STD

SEAL BEAM, PRSUT, RED

€ 45.50

16

230071002
ref: 16

PURSUIT SEALED BEAM,BLUE

€ 27.50

16

230071003
ref: 16

SEAL BEAM,PRSUT,AMBER

€ 55.00

17

230064004
ref: 17

RIM. PURSUIT LAMP

€ 33.50

18

920094011
ref: 18

LAMP RIM SCREW,4X8

€ 1.00

19

920014015
ref: 19

BOLT,PURSUIT LIGHT

€ 0.50

20

411B0800
ref: 20

WASHER-PLAIN,8MM

€ 0.50

21

312B0600
ref: 21

NUT,6MM

€ 0.50

22

92071056
ref: 22

GROMMET

€ 2.50

23

92022125
ref: 23

WASHER,6.5X20X1.6

€ 1.00

24

92019008
ref: 24

NUT-LOCK,6MM

€ 3.00

25

140201096
ref: 25

RETAINER,CLIP

€ 2.50
