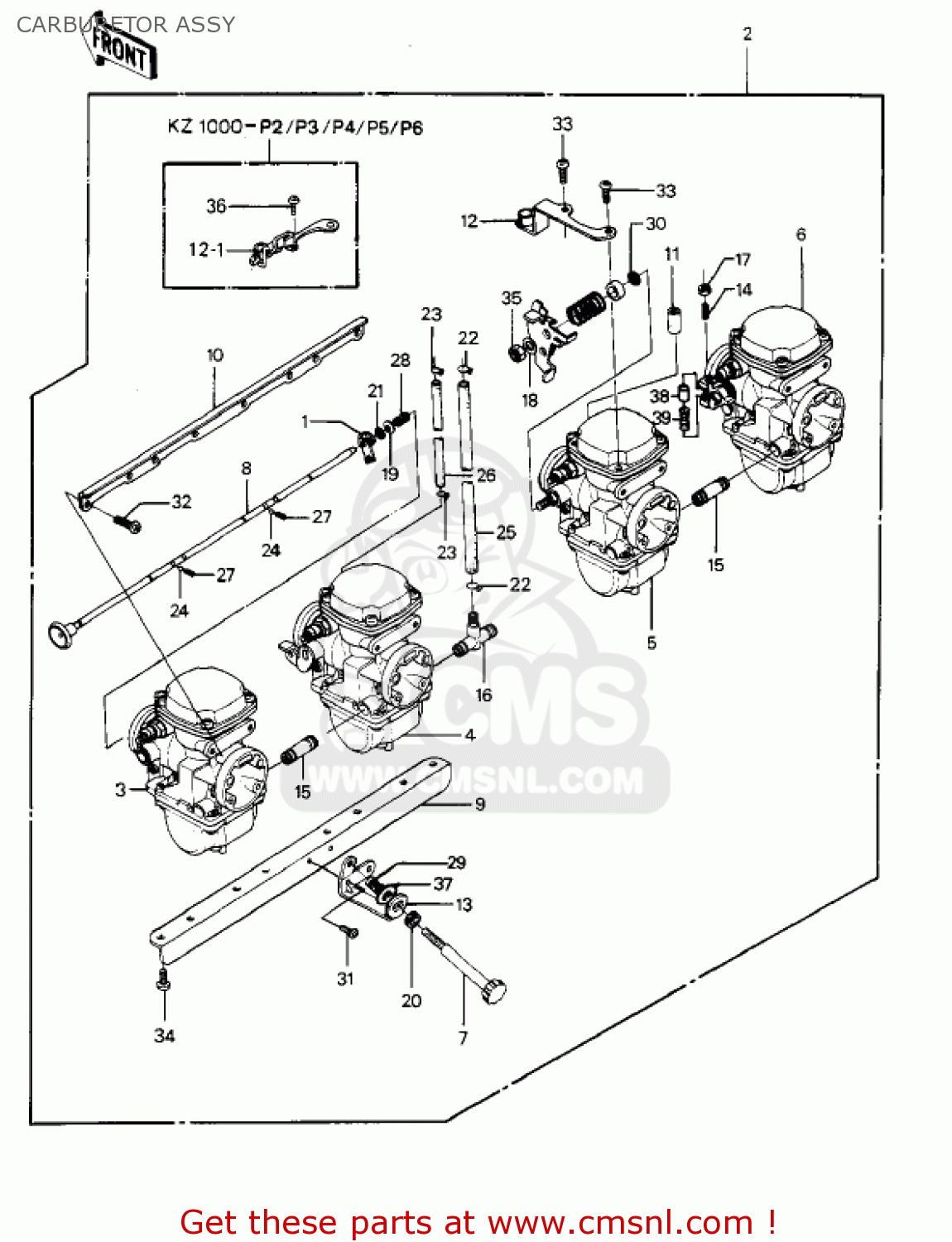

CARBURETOR ASSY

ref

part #

description

quantity

1

131681091
ref: 1

LEVER,CHOKE

€ 6.00

2

160011358
ref: 2
KZ1000-P1

CARBURETOR ASSEMBLY

€ 964.00

2

160011724
ref: 2
KZ1000-P2/P3/P4

CARBURETOR

€ 1,455.50

2

150011209
ref: 2
KZ1000-P5

CARBURETOR ASSEMBLY

€ 3,338.50

3

160011436
ref: 3
KZ1000-P1

CARBURETOR,OUTSIDE,LH

€ 391.00

3

160011725
ref: 3
KZ1000-P2/P3/P4

CARBURETOR,OUTSIDE,LH

€ 377.00

3

150021258
ref: 3
KZ1000-P5

CARBURETOR,OUTSIDE,LH

€ 493.50

4

160011437
ref: 4
KZ1000-P1

CARBURETOR,INSIDE,LH

€ 326.50

4

160011726
ref: 4
KZ1000-P2/P3/P4

CARBURETOR,INSIDE,LH

€ 377.00

4

150021259
ref: 4
KZ1000-P5

CARBURETOR,INSIDE,LH

€ 493.50

5

160011438
ref: 5
KZ1000-P1

CARBURETOR,INSIDE,RH

€ 326.50

5

160011727
ref: 5
KZ1000-P2/P3/P4

CARBURETOR,INSIDE,RH

€ 377.00

5

150021260
ref: 5
KZ1000-P5

CARBURETOR,INSIDE,RH

€ 461.00

6

160011439
ref: 6
KZ1000-P1

CARBURETOR,OUTSIDE,RH

€ 360.00

6

160011728
ref: 6
KZ1000-P2/P3/P4

CARBURETOR,OUTSIDE,RH

€ 377.00

6

150021261
ref: 6
KZ1000-P5

CARBURETOR,OUTSIDE,RH

€ 461.00

7

160211035
ref: 7
KZ1000-P1/P2/P3/P4

SCREW-THROTTLE STOP

€ 16.50

7

160211103
ref: 7
KZ1000-P5

SCREW-THROTTLE STOP

€ 19.50

8

160411024
ref: 8

SHAFT-CARBURETOR,CHOK

€ 35.00

9

160651043
ref: 9

HOLDER-CARBURETOR,LWR

€ 62.00

10

160651044
ref: 10

HOLDER-CARBURETOR,UPP

€ 41.00

11

390311009
ref: 11
KZ1000-P1

CAP-END

€ 8.50

11

92068006
ref: 11
KZ1000-P2/P3/P4/P5

RUBBER PLUG

€ 2.50

12

391841006
ref: 12
KZ1000-P1

BRACKET-ASSY,THROTTLE

€ 23.00

12-1

391841013
ref: 12-1
KZ1000-P2/P3/P4/P5

THROTTLE BRACKET ASSEMBLY

€ 30.50

13

391841007
ref: 13

BRACKET-ASSY,IDLING A

€ 20.00

14

920011447
ref: 14

BOLT,ADJUSTING

€ 6.50

15

920051035
ref: 15

FITTING,FUEL,I-TYPE

€ 35.00

16

920051036
ref: 16

FITTING,FUEL,T-TYPE

€ 48.50

17

920151119
ref: 17

NUT,THROTTLE VALVE AD

€ 3.50

18

920221191
ref: 18
KZ1000-P1

WASHER,LOCK

€ 3.00

19

920221255
ref: 19

WASHER,SPRING

€ 3.50

20

920281071
ref: 20
KZ1000-P1/P2/P3/P4

BUSHING,IDLING ADJUST

€ 4.50

20

920281266
ref: 20
KZ1000-P5

BUSHING,IDLING ADJUST

€ 7.00

21

920331066
ref: 21

RING-SNAP,E-TYPE

€ 3.50

22

920371184
ref: 22
KZ1000-P1/P2/P3/P4

CLAMP,HOSE

€ 1.00

22

920371184
ref: 22
KZ1000-P5

CLAMP,HOSE

€ 1.00

23

92037174
ref: 23

CLAMP,BREATHER HOSE

€ 1.50

24

600A0400
ref: 24

BALL-STEEL,1/8

€ 2.00

25

920591187
ref: 25

TUBE,7.5X12.5X250

€ 30.50

26

920591188
ref: 26

TUBE,5X9X150

€ 11.00

27

920811260
ref: 27

SPRING,FAST IDLE SHFT

€ 3.50

28

920811364
ref: 28

SPRING,CHOCK SHAFT

€ 3.50

29

920811377
ref: 29

SPRING,IDLING ADJUST

€ 3.00

30

920931027
ref: 30
KZ1000-P1

OIL SEAL

€ 3.50

31

220B0508
ref: 31

SCREW-PAN-CROS,5X8

€ 0.50

32

220B0510
ref: 32

SCREW-PAN-CROS,5X10

€ 0.50

33

220B0514
ref: 33
KZ1000-P1

ACREW-PAN HEAD,5X14

€ 2.50

34

220B0614
ref: 34

SCREW-PAN HEAD,6X14

€ 2.00

35

315G0800
ref: 35
KZ1000-P1

NUT,8MM

€ 2.00

36

220B0512
ref: 36
KZ1000-P2/P3/P4/P5

SCREW-PAN-CROS

€ 0.50

37

920221491
ref: 37
KZ1000-P5

WASHER,THROTTLE STOP

€ 2.50

38

920431079
ref: 38
KZ1000-P2/P3/P4/P5

PIN,THROTTLE VALVE AD

€ 3.50

39

920811259
ref: 39
KZ1000-P2/P3/P4/P5

SPRING,THROTTLE VLV

€ 3.00
