TRANSMISSION
KZ1000P1 POLICE 1000 1982 USA

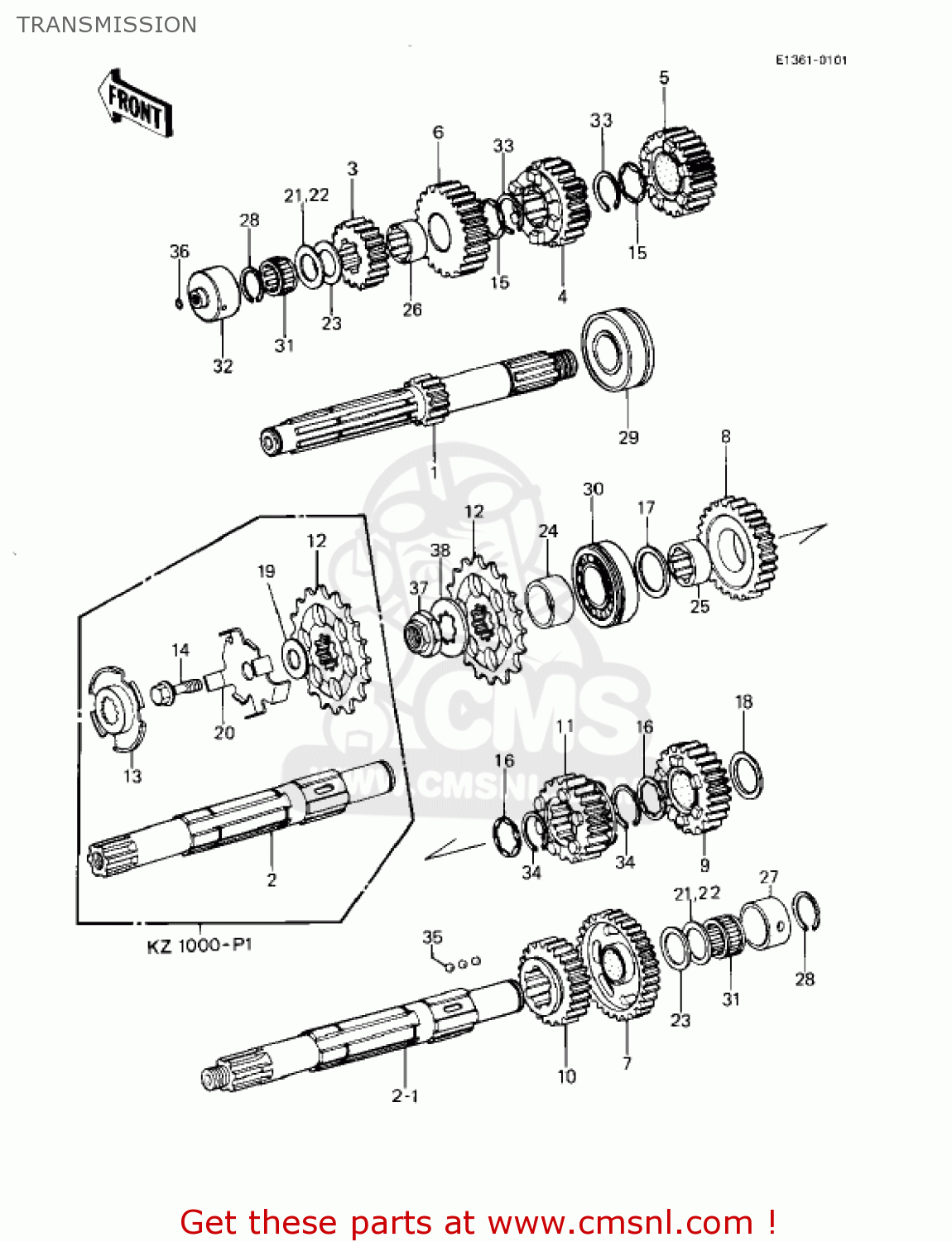

Transmission diagram KZ1000P1 POLICE 1000 1982 USA
TRANSMISSION KZ1000P1 POLICE 1000 1982 USA
×
prices are in EUR
ref
part #
description
quantity
1
131271034
ref: 1
SHAFT-TRANSMISSION IN
€ 244.50
2
131281030
ref: 2
KZ1000-P1
SHAFT-TRANSMISSION OU
€ 130.00
2.1
131281048
ref: 2.1
KZ1000-P2/P3/P4/P5
SHAFT-TRANSMISSION OU
€ 257.00
3
131291235
ref: 3
GEAR,INPUT 2ND,18T
€ 141.00
4
131291236
ref: 4
GEAR,INPUT 3RD,21T
€ 128.50
5
131291237
ref: 5
GEAR,INPUT 4TH,23T
€ 101.50
6
131291238
ref: 6
GEAR,INPUT TOP,25T
€ 149.50
7
131291239
ref: 7
GEAR,OUTPUT LOW,37T
€ 188.00
8
131291240
ref: 8
GEAR,OUTPUT 2ND,33T
€ 159.50
9
131291241
ref: 9
GEAR,OUTPUT 3RD,30T
€ 114.50
10
131291242
ref: 10
GEAR,OUTPUT 4TH,27T
€ 120.50
11
131291243
ref: 11
GEAR,OUTPUT TOP,26T
€ 192.00
12
131441042
ref: 12
SPROCKET-OUTPUT,15T
€ 31.50
13
320851101
ref: 13
KZ1000-P1
STOPPER,ENGINE SPROCK
€ 8.50
14
920011479
ref: 14
KZ1000-P1
BOLT,FLANGED,10X39
€ 17.00
15
920221077
ref: 15
WASHER,LOCK (O.D=35O)
€ 7.50
16
920221218
ref: 16
WASHER,TOOTHED,30X42X
€ 3.00
17
920221219
ref: 17
WASHER,28.3X42X2.9
€ 10.50
18
920221220
ref: 18
WASHER,32.3X42X3
€ 7.50
19
920221274
ref: 19
KZ1000-P1
WASHER,12.3X38X2.3
€ 4.50
20
920221351
ref: 20
KZ1000-P1
WASHER,SPROCKET STOPP
€ 6.50
21
92022212
ref: 21
WASHER-PLAIN,22MM
€ 6.50
22
92022213
ref: 22
WASHER,22.3X35X1.2
€ 7.00
23
920261020
ref: 23
SPACER,22X35.5X1.0
€ 3.50
24
920271339
ref: 24
COLLAR,28X40X20.5
€ 19.00
25
920281112
ref: 25
BUSHING,2ND GEAR
€ 28.00
26
920281124
ref: 26
BUSHING,TOP GEAR
€ 31.00
27
92028123
ref: 27
BUSHING,OUTPUT SHAFT
€ 36.50
28
92033025
ref: 28
CIRCLIP,25MM
€ 3.00
29
920451028
ref: 29
BEARING-BALL,5305NSH2
€ 135.00
30
920451034
ref: 30
BEARING-BALL,63/28NC3
€ 53.50
31
92046031
ref: 31
BEARING-NEEDLE,FWF-22
€ 19.50
32
920481012
ref: 32
RACE,DRIVE SHAFT BEAR
€ 40.00
33
480J2800
ref: 33
CIRCLIP-TYPE-C,28MM
€ 3.50
34
480J3200
ref: 34
CIRCLIP-TYPE-C,32MM
€ 1.00
35
600A0600
ref: 35
BALL-STEEL,3/16
€ 0.50
36
670B1508
ref: 36
O RING,8MM
€ 1.00
37
920151210
ref: 37
KZ1000-P2/P3/P4/P5/P
NUT,20MM
€ 12.00
38
922001060
ref: 38
KZ1000-P2/P3/P4/P5
WASHER
€ 4.00
