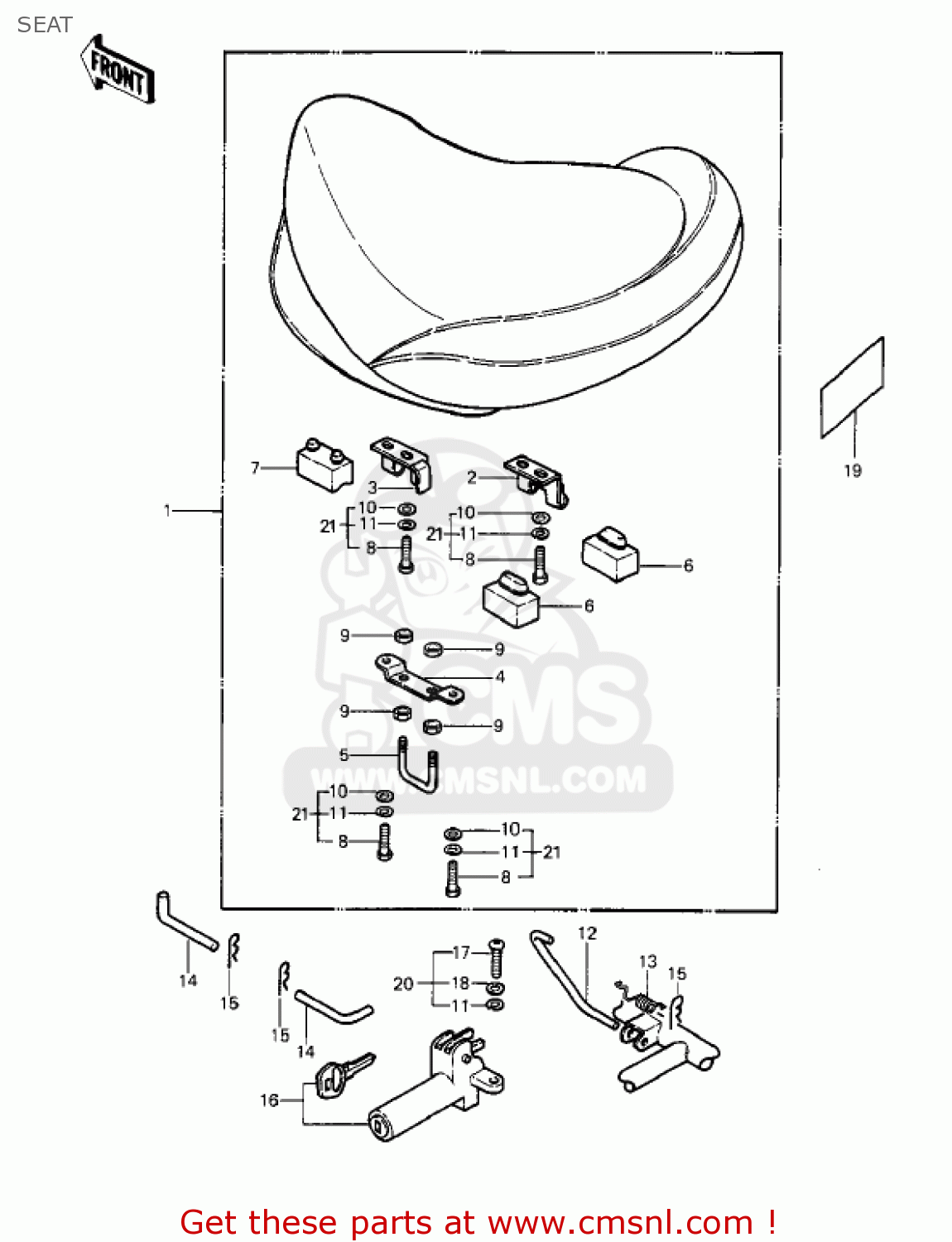

SEAT

ref

part #

description

quantity

1

530011220
ref: 1

SEAT-ASSY

€ 393.50

2

5300901710
ref: 2

HINGE,BLACK

€ 3.50

3

530091029
ref: 3

HINGE,SEAT,FR

€ 11.00

4

110341329
ref: 4

BRACKET,SEAT CATCH

€ 9.00

5

53056002
ref: 5

HOOK,SEAT

€ 11.50

6

92075099
ref: 6

DAMPER RUBBER

€ 3.50

7

920751133
ref: 7

DAMPER,SEAT

€ 7.00

8

112B0614
ref: 8
KZ1000-P1/P2/P3/P4

BOLT-UPSET 6X14

€ 2.50

9

311B0600
ref: 9

NUT,6MM

€ 0.50

10

411B0600
ref: 10
KZ1000-P1/P2/P3/P4

WASHER-PLAIN,6MM

€ 0.50

11

461F0600
ref: 11
KZ1000-P1/P2/P3

WASHER-SPRING,6MM

€ 0.50

11

461F0600
ref: 11
KZ1000-P4

WASHER-SPRING,6MM

€ 0.50

12

350114003
ref: 12

STAY,SEAT STAND

€ 7.00

13

920811053
ref: 13

SPRING,SEAT HOOK

€ 8.50

14

920431021
ref: 14

PIN,SEAT PIVOT

€ 3.00

15

554A0600
ref: 15

PIN-SNAP,SIDE STAND

€ 0.50

16

270165015
ref: 16

LOCK ASSY,SEAT

€ 88.50

17

220B0614
ref: 17
KZ1000-P1/P2

SCREW-PAN HEAD,6X14

€ 2.00

17

112B0614
ref: 17
KZ1000-P3

BOLT-UPSET 6X14

€ 2.50

18

410B0600
ref: 18
KZ1000-P1/P2/P3

WASHER-PLAIN-SMALL,6M

€ 0.50

19

560311157
ref: 19
KZ1000-P3/P4/P5

LABEL,CHAIN

€ 3.00

20

187B0614
ref: 20
KZ1000-P4

BOLT-UPSET-WSP

€ 0.50

21

157B0614
ref: 21
KZ1000-P5

BOLT-UPSET-WSP

€ 0.50
