FRONT FORK
KZ1000P1 POLICE 1000 1982 USA

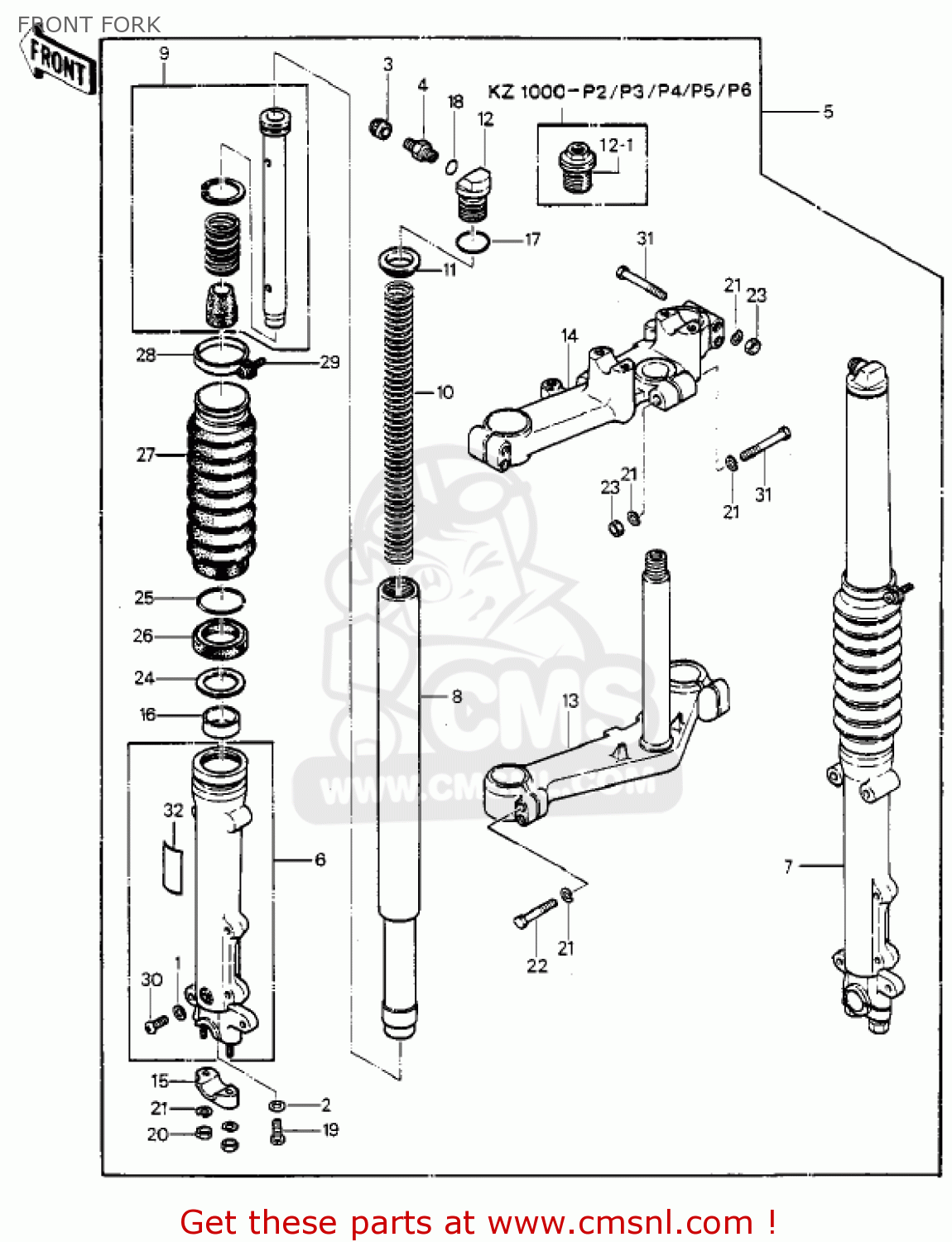

Front fork diagram KZ1000P1 POLICE 1000 1982 USA
FRONT FORK KZ1000P1 POLICE 1000 1982 USA
×
prices are in EUR
ref
part #
description
quantity
1
44045002
ref: 1
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
2
44045057
ref: 2
GASKET (NAS)
€ 3.00
3
110121241
ref: 3
CAP,AIR VALVE
€ 11.00
4
161261052
ref: 4
VALVE,AIR
€ 22.00
5
440011343
ref: 5
KZ1000-P1
FRONT FORK
€ 907.00
5
440014011
ref: 5
KZ1000-P2/P3/P4
FRONT FORK
€ 913.00
5
440011606
ref: 5
KZ1000-P5
FRONT FORK
€ 885.00
6
440051100
ref: 6
KZ1000-P1
FORK OUTER TUBE,LH
€ 160.50
6
440054002
ref: 6
KZ1000-P2/P3/P4/P5
FORK OUTER PIPE,LH
€ 258.00
7
440061100
ref: 7
KZ1000-P1
FORK OUTER TUBE,RH
€ 225.50
7
440064002
ref: 7
KZ1000-P2/P3/P4/P5
PIPE-RIGHT FORK OUTER
€ 418.00
8
440131097
ref: 8
KZ1000-P1
FORK INNER PIPE
€ 254.00
8
440134002
ref: 8
KZ1000-P2/P3/P4/P5
PIPE-FORK INNER
€ 213.50
9
440221083
ref: 9
KZ1000-P1
FORK CYLINDER
€ 84.00
9
440221071
ref: 9
KZ1000-P2/P3/P4/P5
CYLINDER-FORK
€ 82.00
10
440261154
ref: 10
KZ1000-P1
FRONT FORK SPRING
€ 48.00
10
440264002
ref: 10
KZ1000-P2/P3/P4
FRONT FORK SPRING
€ 40.50
10
440261312
ref: 10
KZ1000-P5
FRONT FORK SPRING
€ 57.00
11
44028033
ref: 11
KZ1000-P1
GUIDE-FORK SPRING
€ 6.00
12
440291029
ref: 12
KZ1000-P1
SEAT-FORK SPRING
€ 37.00
12-1
440294001
ref: 12-1
KZ1000-P2/P3/P4/P5
FORK SPRING,SEAT
€ 35.50
13
440371087
ref: 13
KZ1000-P1
FORK HOLDER,UNDER
€ 129.50
13
440374004
ref: 13
KZ1000-P2/P3/P4/P5
HOLDER-FORK UNDER
€ 430.50
14
440291056
ref: 14
KZ1000-P1
UNAVAILABLE IN PRICE BOOK
€ 0.00
14
440394007
ref: 14
KZ1000-P2/P3/P4/P5
HOLDER-FORK UPPER
€ 309.00
15
440631006
ref: 15
KZ1000-P1
HOLDER-FRONT AXLE
€ 25.50
15
44063011
ref: 15
KZ1000-P2/P3/P4/P5
HOLDER-FRONT AXLE
€ 27.00
16
440651091
ref: 16
BUSHING-FRONT FORK,OU
€ 17.00
17
920551012
ref: 17
RING-O,FORK TOP
€ 5.00
18
920551094
ref: 18
0 RING,AIR VALVE
€ 1.00
19
44041040
ref: 19
BOLT-FORK CYLINDER
€ 4.50
20
920151124
ref: 20
NUT,LOCK,8MM
€ 3.50
21
461F0800
ref: 21
WASHER-SPRING,8MM
€ 0.50
22
920011700
ref: 22
BOLT,8X38
€ 5.50
23
311G0800
ref: 23
NUT-HEX,8MM
€ 2.50
24
920221262
ref: 24
WASHER,FORK OUTER PIP
€ 5.50
25
920331047
ref: 25
SNAP RING,FORK OUTER
€ 4.00
26
920491066
ref: 26
SEAL-OIL,FRONT FORK
€ 18.50
27
490061079
ref: 27
BOOT,FORK,BLACK
€ 65.00
28
920721046
ref: 28
KZ1000-P1
BAND,BOOT
€ 6.50
28
920371321
ref: 28
KZ1000-P2/P3/P4/P5
CLAMP,BOOT,BLACK
€ 6.50
29
220B0420
ref: 29
SCREW-PAN-CROS
€ 2.00
30
220B0408
ref: 30
SCREW-PAN-CROS
€ 0.50
31
114G0855
ref: 31
BOLT,HEX HEAD,8X55
€ 4.50
32
560401110
ref: 32
KZ1000-P3/P4/P5
LABEL-WARNING,FRONT F
€ 2.50
