TAILLIGHT (F/NO. - 004800)
KZ1000M1 CSR 1981 USA CANADA

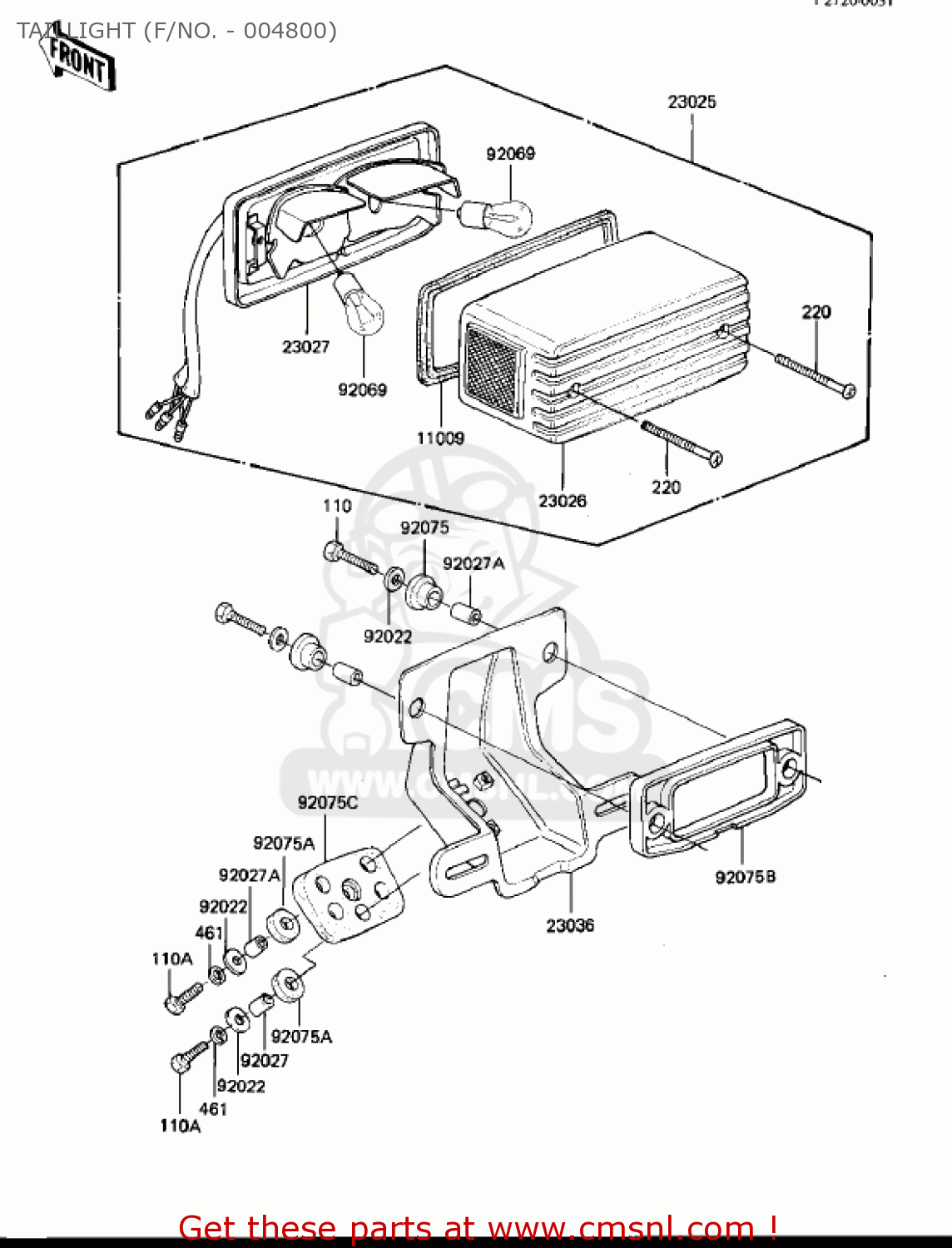

Taillight (f/no. - 004800) diagram KZ1000M1 CSR 1981 USA CANADA
TAILLIGHT (F/NO. - 004800) KZ1000M1 CSR 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091221
ref: 11009
GASKET,TAIL LAMP (NAS)
€ 8.50
23025
230251037
ref: 23025
TAIL LAMP,220-40896
€ 139.50
23026
230261024
ref: 23026
LENS, TAIL LAMP
€ 133.00
23027
230251037
ref: 23027
TAIL LAMP,220-40896
€ 139.50
23036
230361033
ref: 23036
TAIL LAMP BRACKET
€ 74.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
€ 3.00
92027A
92027169
ref: 92027A
COLLAR,6.8X10X16
€ 4.00
92069
92069059
ref: 92069
BULB,12V 32/3CP
€ 5.50
92075
920751092
ref: 92075
DAMPER
€ 7.50
92075A
92075121
ref: 92075A
DAMPER,FENDER
€ 2.50
92075B
920751282
ref: 92075B
DAMPER,TAIL LAMP
€ 13.00
92075C
920751283
ref: 92075C
DAMPER
€ 7.50
110
112B0622
ref: 110
BOLT, 6X22
€ 2.50
110A
112G0625
ref: 110A
BOLT-UPSET,6X25
€ 4.00
220
220B0465
ref: 220
SCREW-PAN-CROS
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
