REAR HUB/CHAIN

KZ1000M1 CSR 1981 USA CANADA

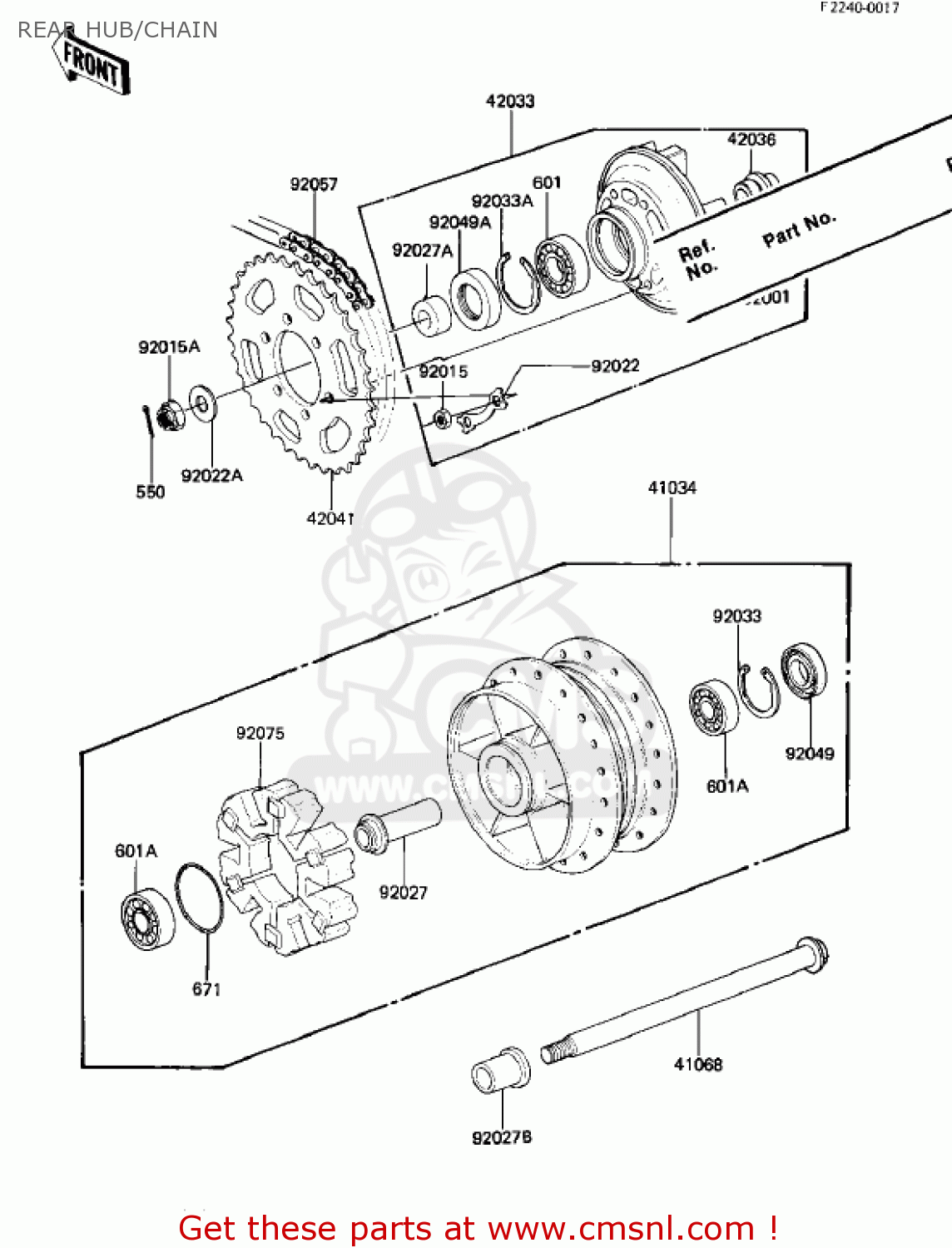

Rear hub/chain diagram KZ1000M1 CSR 1981 USA CANADA

REAR HUB/CHAIN KZ1000M1 CSR 1981 USA CANADA
REAR HUB/CHAIN KZ1000M1 CSR 1981 USA CANADA
REAR HUB/CHAIN KZ1000M1 CSR 1981 USA CANADA
prices are in EUR
ref
part #
description
quantity
41034
410341031
ref: 41034
REAR BRAKE DRUM ASSEMBLY
€ 397.00
41068
410681087
ref: 41068
AXLE,RR,L=300
410681087
€ 75.00
42033
420331024
ref: 42033
COUPLING-ASSY,RR HUB
€ 274.00
42036
420361039
ref: 42036
SLEEVE,L=33
420361039
€ 29.00
42041
420411059
ref: 42041
SPROCKET-HUB,39T
420411059
€ 52.00
92001
92001161
ref: 92001
BOLT,10X41
92001161
€ 3.00
92015
42045005
ref: 92015
NUT,10MM
42045005
€ 5.00
92015A
42045018
ref: 92015A
NUT,18MM
42045018
€ 7.50
92022
920221212
ref: 92022
WASHER,LOCK
920221212
€ 4.00
92022A
92022248
ref: 92022A
WASHER,20.3X34X4.5
92022248
€ 7.50
92027
920271286
ref: 92027
COLLAR,L=89.5
920271286
€ 24.00
92027A
920271287
ref: 92027A
COLLAR,20X40X16.5
920271287
€ 20.50
92027B
920271288
ref: 92027B
COLLAR,L=31
920271288
€ 24.50
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
920331043
€ 6.00
92033A
920331044
ref: 92033A
CIRCLIP 62 M/M
920331044
€ 7.50
92049
920491061
ref: 92049
SEAL-OIL,28X52X5
920491061
€ 13.00
92049A
92050027
ref: 92049A
OIL SEAL
92050027
€ 13.50
92057
920571053
ref: 92057
CHAIN,EK630SZD0X96L
920571053
€ 146.50
92075
42014033
ref: 92075
DAMPER,RR HUB SHOCK,1
42014033
€ 85.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6206
ref: 601
BEARING-BALL,#6206C3
601B6206
€ 19.50
601A
601B6304ZZ
ref: 601A
BEARING-BALL,#6304ZZC
601B6304ZZ
€ 36.00
671
671B2565
ref: 671
O RING,65MM
671B2565
€ 6.00
