MUFFLERS
KZ1000M1 CSR 1981 USA CANADA

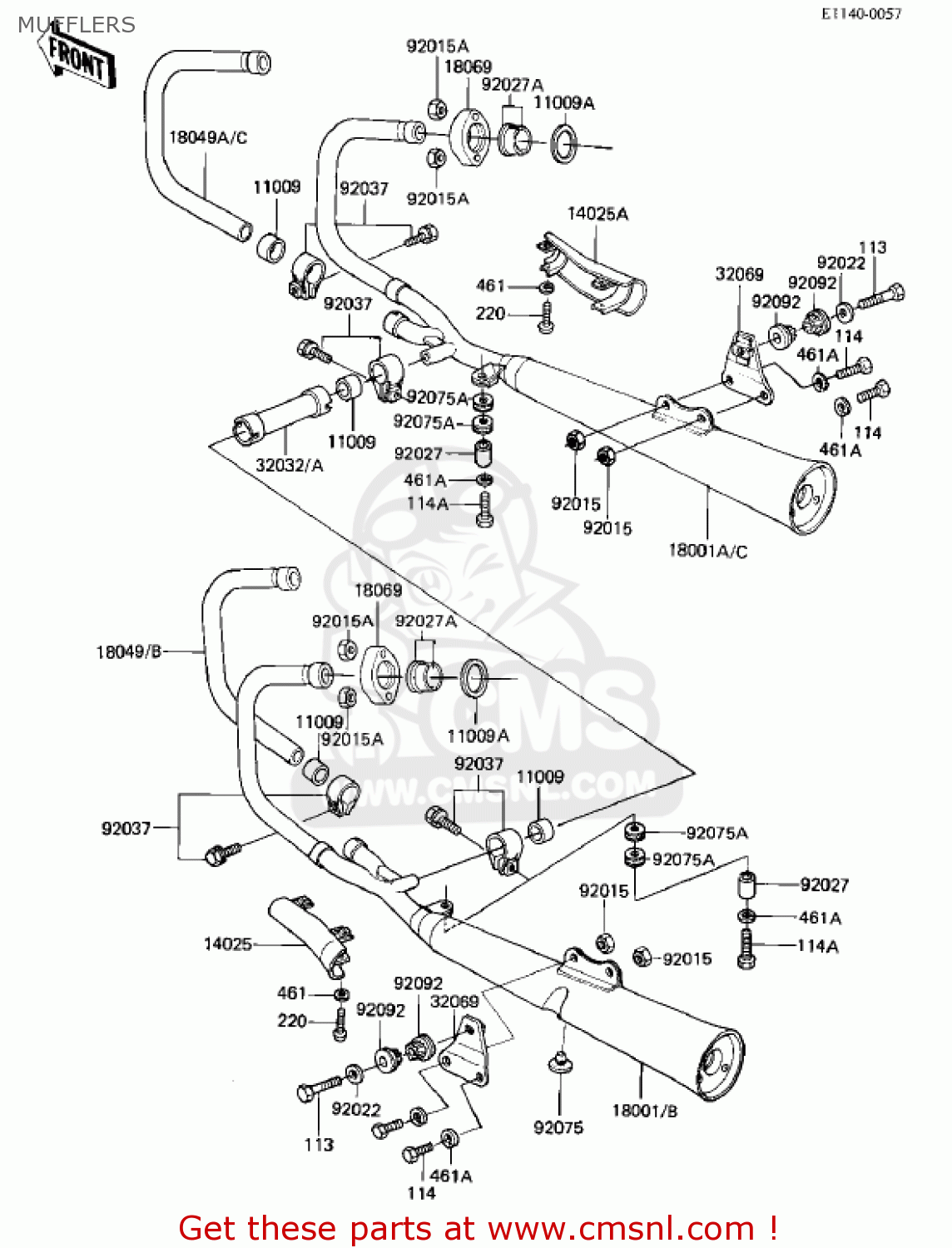

Mufflers diagram KZ1000M1 CSR 1981 USA CANADA
MUFFLERS KZ1000M1 CSR 1981 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110601068
ref: 11009
GASKET,MANIFOLD EXHAU (NAS)
€ 20.50
11009A
110091906
ref: 11009A
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
14025
140251355
ref: 14025
COVER,MUFFLER,LH
€ 66.00
14025A
140251356
ref: 14025A
COVER,MUFFLER,RH
€ 56.50
18001
180011316
ref: 18001
(SUBSTITUTES 18001-1
MUFFLER, LH
€ 311.00
18001A
180011317
ref: 18001A
(SUBSTITUTES 18001-1
MUFFLER,RH
€ 729.50
18001B
180011316
ref: 18001B
MUFFLER, LH
€ 311.00
18001C
180011317
ref: 18001C
MUFFLER,RH
€ 729.50
18049
180491188
ref: 18049
(SUBSTITUTES 18049-1
PIPE-EXHAUST,#2
€ 153.00
18049A
180491135
ref: 18049A
(SUBSTITUTES 18049-1
PIPE-EXHAUST,#3
€ 153.00
18049B
180491188
ref: 18049B
PIPE-EXHAUST,#2
€ 153.00
18049C
180491189
ref: 18049C
PIPE-EXHAUST,#3
€ 153.00
18069
180691015
ref: 18069
HOLDER-EXHAUST PIPE
€ 23.00
32032
320321676
ref: 32032
(SUBSTITUTES 32032-1
PIPE,MUFFLER CONNECTI
€ 21.00
32032A
320321676
ref: 32032A
PIPE,MUFFLER CONNECTI
€ 21.00
32069
320691074
ref: 32069
BRACKET-MUFFLER,LH
€ 16.00
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151143
ref: 92015A
NUT,8MM
€ 0.50
92022
92022289
ref: 92022
WASHER,PLAIN
€ 11.50
92027
920271064
ref: 92027
COLLAR,9X13X17.2
€ 9.50
92027A
920271300
ref: 92027A
COLLAR,EXHAUST PIPE
€ 4.50
92037
920371258
ref: 92037
CLAMP,MUFFLER
€ 10.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
920751042
ref: 92075A
DAMPER,MUFFLER
€ 7.00
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
€ 11.50
113
113N1055
ref: 113
BOLT-HEX HEAD,10X55
€ 7.00
114
115G0816
ref: 114
BOLT-HEX,HEAD 8X16
€ 0.50
114A
114G0836
ref: 114A
BOLT-SMALL,8X36
€ 3.00
220
220B0645
ref: 220
SCREW-PAN HEAD,6X45
€ 2.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
461A
461F0800
ref: 461A
WASHER-SPRING,8MM
€ 0.50
