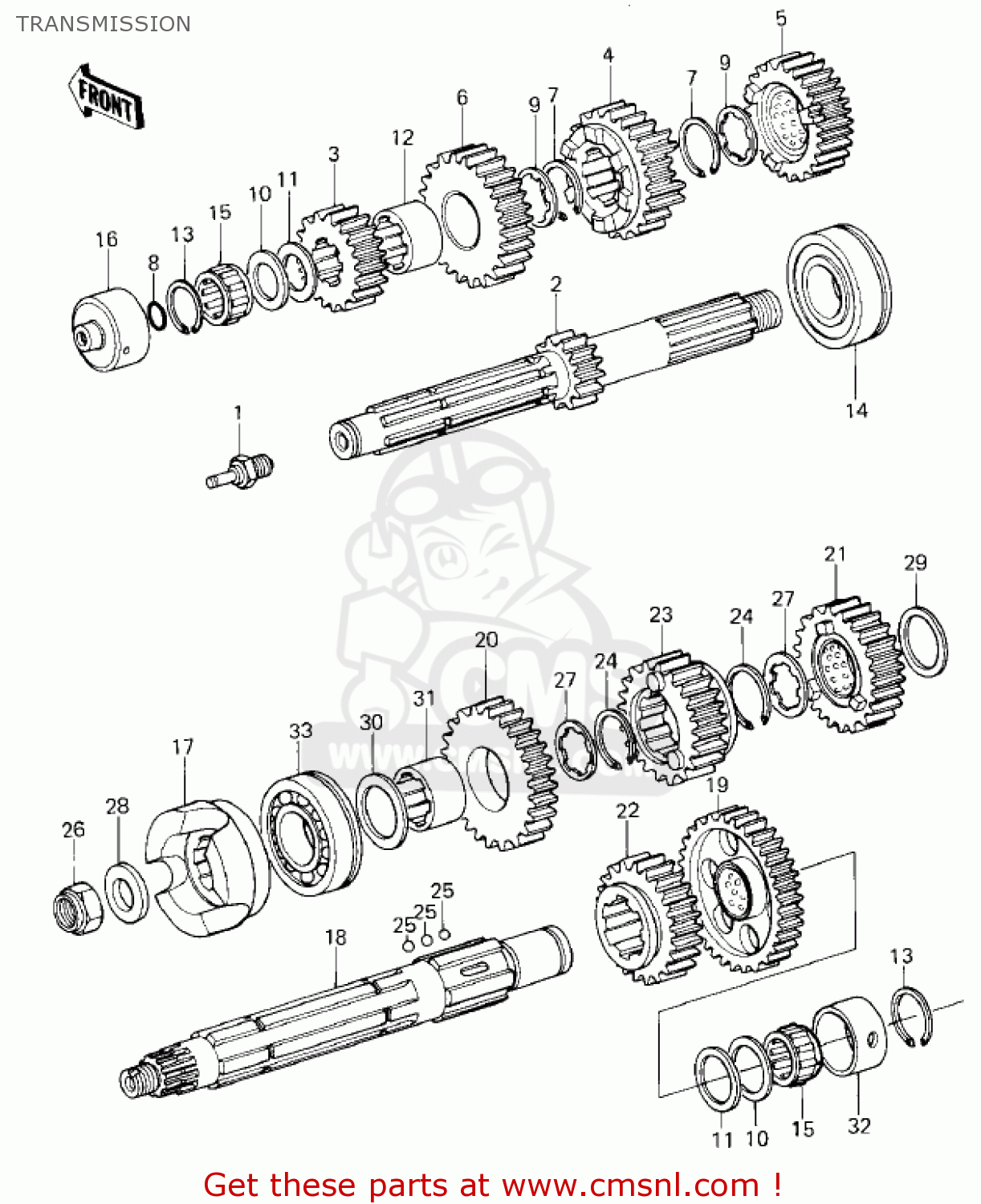

TRANSMISSION

ref

part #

description

quantity

1

131515002
ref: 1

SWITCH,NEUTRAL

€ 22.50

2

131271012
ref: 2
12T

SHAFT,DRIVE

€ 161.00

3

13130032
ref: 3
16T

2ND GEAR-DRIVE SHAFT

€ 114.50

4

13132030
ref: 4
21T

3RD GEAR-DRIVE SHAFT

€ 158.50

5

13134016
ref: 5
21T

GEAR INPUT 4TH,21T

€ 156.00

6

13136042
ref: 6
23T

TOP GEAR-DRIVE SHAFT

€ 116.50

7

480J2800
ref: 7

CIRCLIP-TYPE-C,28MM

€ 3.50

8

670B1508
ref: 8

O RING,8MM

€ 1.00

9

920221077
ref: 9

WASHER,LOCK (O.D=35O)

€ 7.50

10

92022212
ref: 10
1.6T

WASHER-PLAIN,22MM

€ 6.50

10

92022213
ref: 10
1.2T

WASHER,22.3X35X1.2

€ 7.00

11

920261020
ref: 11
1.0T

SPACER,22X35.5X1.0

€ 3.50

12

920281124
ref: 12

BUSHING,TOP GEAR

€ 31.00

13

92033025
ref: 13

CIRCLIP,25MM

€ 3.00

14

920451028
ref: 14

BEARING-BALL,5305NSH2

€ 135.00

15

92046031
ref: 15

BEARING-NEEDLE,FWF-22

€ 19.50

16

920481012
ref: 16

RACE,DRIVE SHAFT BEAR

€ 40.00

17

130481004
ref: 17

DAMPER,OUTPUT SHAFT

€ 30.50

18

131281019
ref: 18

SHAFT,OUTPUT

€ 295.00

19

13129046
ref: 19
38T

LOW GEAR-OUTPUT SHAFT

€ 133.00

20

13131038
ref: 20
35T

GEAR,OUTPUT 2ND,35T

€ 146.50

21

13133031
ref: 21
35T

GEAR,OUTPUT 3RD,35T

€ 169.50

22

13135020
ref: 22
29T

4TH GEAR-OUTPUT SHAFT

€ 102.50

23

131291214
ref: 23
28T

GEAR,OUTPUT TOP,28T

€ 317.50

24

480J3000
ref: 24

CIRCLIP-TYPE-C,30MM

€ 3.50

25

600A0600
ref: 25

BALL-STEEL,3/16

€ 0.50

26

920151067
ref: 26

NUT,LOCK,14MM

€ 6.00

27

920221078
ref: 27

WASHER,LOCK (O.D=40)

€ 3.00

28

920221115
ref: 28

WASHER,14.1X31X5

€ 8.00

29

92022209
ref: 29

WASHER-PLAIN,30MM

€ 6.50

30

92022210
ref: 30

WASHER-PLAIN,25MM

€ 4.50

31

920281005
ref: 31

BUSHING, ZND GEAR

€ 22.50

32

92028123
ref: 32

BUSHING,OUTPUT SHAFT

€ 36.50

33

92045020
ref: 33

BEARING-BALL,#6305N

€ 29.00
