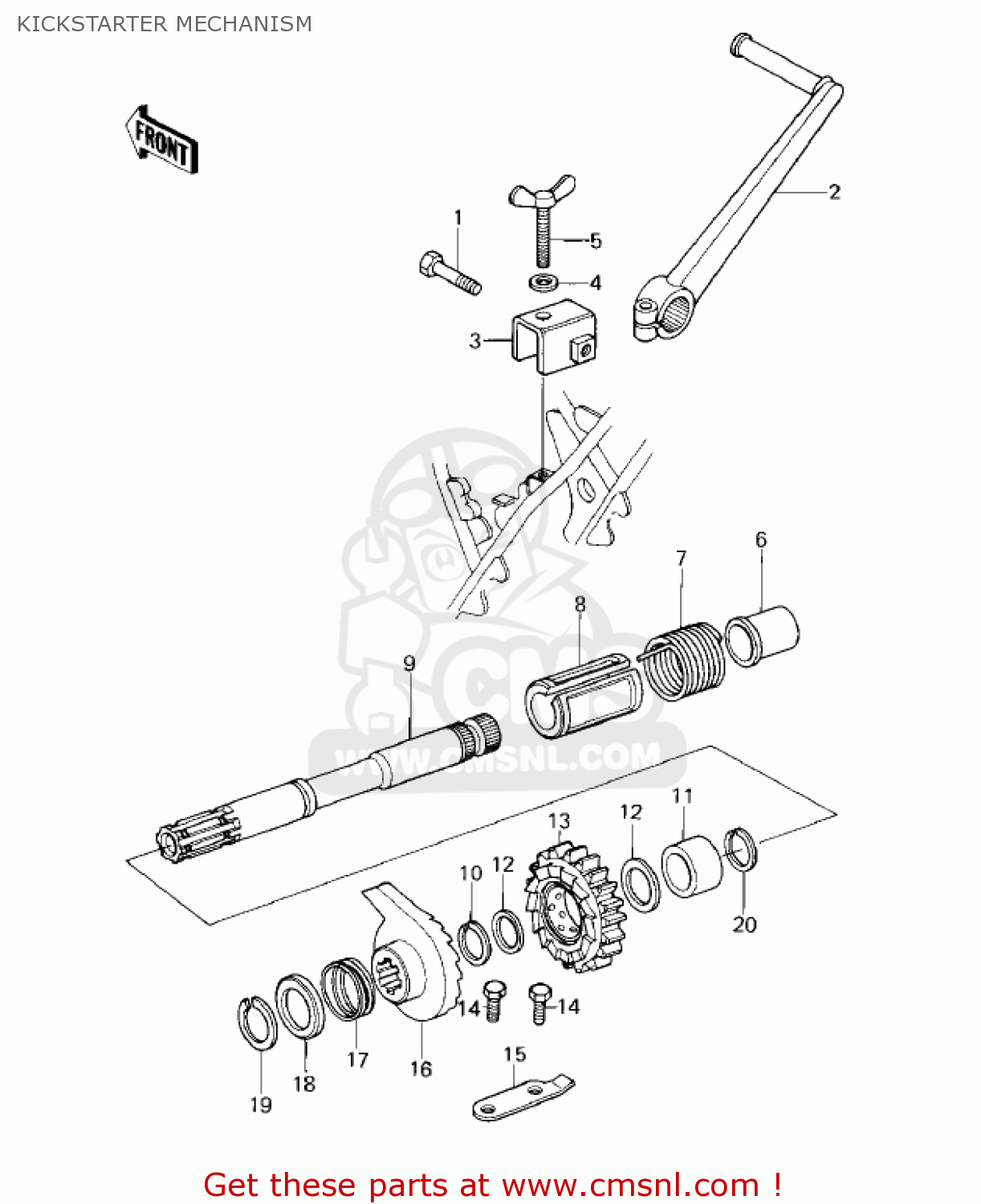

KICKSTARTER MECHANISM

ref

part #

description

quantity

1

113G1025
ref: 1

BOLT-SMALL-FINE,10X25

€ 2.50

2

130591006
ref: 2

LEVER ASSY,KICK

€ 70.50

3

130911044
ref: 3

HOLDER,KICK LEVER

€ 4.00

4

411B0600
ref: 4

WASHER-PLAIN,6MM

€ 0.50

5

920011170
ref: 5

BOLT,KICK LEVER HOLDE

€ 3.50

6

92074037
ref: 6

PLUG

€ 2.50

7

92082004
ref: 7

SPRING-KICKSTARTER

€ 12.50

8

130701008
ref: 8

GUIDE,KICK SPRING

€ 7.00

9

130661004
ref: 9

SHAFT-KICK

€ 85.00

10

92033025
ref: 10

CIRCLIP,25MM

€ 3.00

11

92028126
ref: 11

COLLAR,KICKSHAFT

€ 20.00

12

92022207
ref: 12

WASHER-PLAIN,22MM

€ 2.50

13

590511006
ref: 13

GEAR,KICKSTARTER

€ 61.50

14

112G0614
ref: 14

BOLT-UPSET,6X14

€ 2.50

15

13072012
ref: 15

STOPPER,KICKSTARTER

€ 7.00

16

13078011
ref: 16

RATCHET

€ 58.50

17

92081104
ref: 17

SPRING-RATCHET

€ 6.50

18

92102008
ref: 18

CAP-KICKSTARTER

€ 4.00

19

480J1900
ref: 19

CIRCLIP-TYPE-C,19MM

€ 1.00

20

480J2200
ref: 20

CIRCLIP-TYPE-C,22MM

€ 3.00
