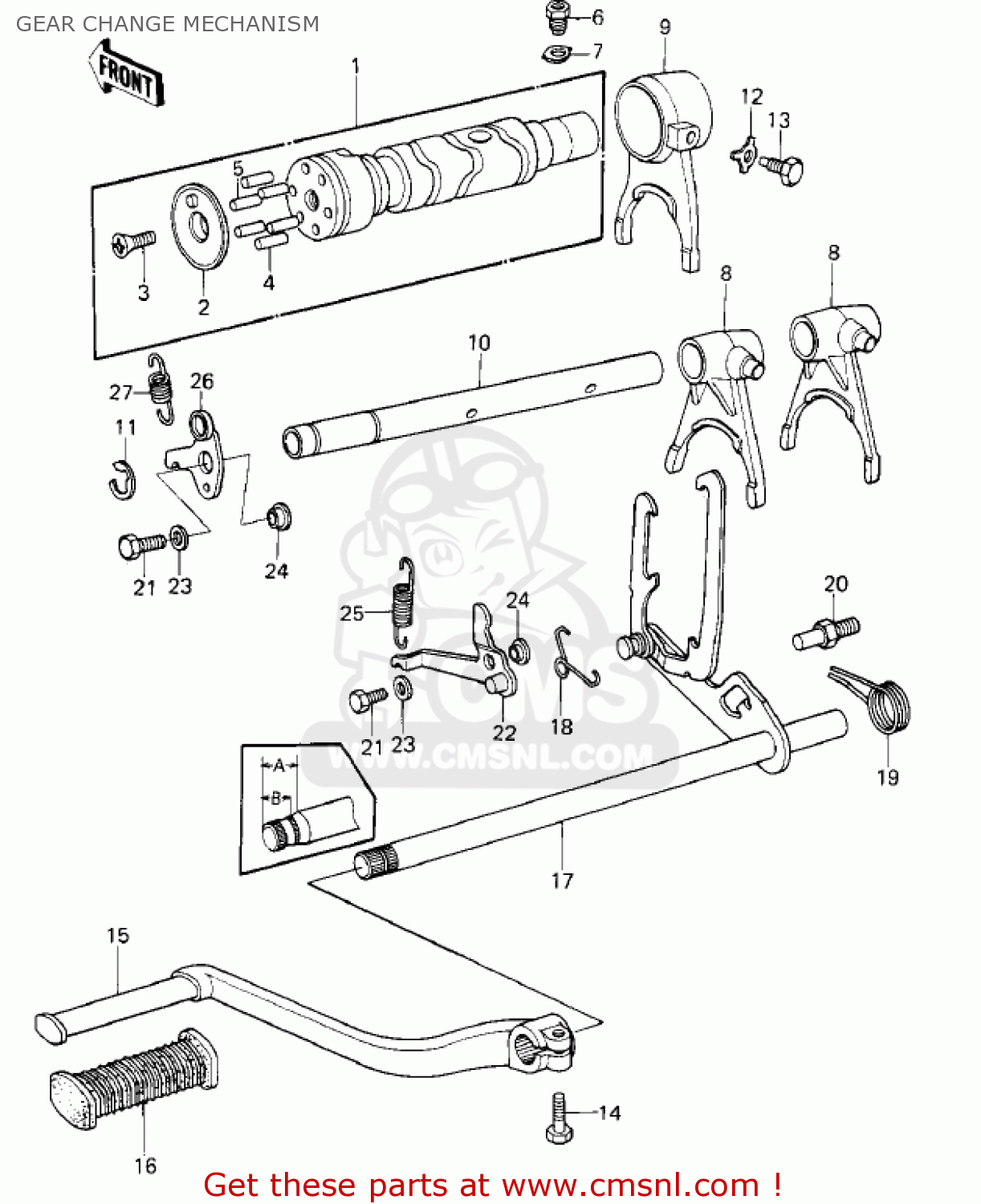

GEAR CHANGE MECHANISM

ref

part #

description

quantity

1

132391022
ref: 1

DRUM ASSY,GEAR

€ 156.50

2

130911088
ref: 2

HOLDER,CHANGE DRUM PI

€ 18.50

3

221B0620
ref: 3

SCREW-CNTSNK HD,6X20

€ 0.50

4

92042014
ref: 4
L=15.8M/M

PIN-GEAR CHANGE DRUM

€ 0.50

5

92042020
ref: 5
L=17.8M/M

PIN-GEAR CHANGE DRUM

€ 3.00

6

920011052
ref: 6

BOLT, CHG DRUM POSITN

€ 12.50

7

92024047
ref: 7

WASHER-LOCK

€ 2.50

8

13140045
ref: 8

FORK-SHIFT,4TH&TOP

€ 190.00

9

13140046
ref: 9

FORK-SHIFT,3RD

€ 124.50

10

13209011
ref: 10

ROD-SHIFT

€ 17.00

11

480J1200
ref: 11

CIRCLIP-TYPE-C,12MM

€ 0.50

12

92031001
ref: 12

WASHER,LOCK,10MM

€ 7.00

13

92043016
ref: 13

PIN,SELECT FORK GUIDE

€ 12.50

14

112G0625
ref: 14

BOLT-UPSET,6X25

€ 4.00

15

131561023
ref: 15
USE FOR 13161-1011

PEDAL ASSY GEAR CHANG

€ 56.50

15

131561038
ref: 15
USE FOR 13161-1019

LEVER-CHANGE,PEDAL

€ 59.50

16

920751175
ref: 16

DAMPER,CHANGE PEDAL

€ 3.00

17-19

131611019
ref: 17-19

LEVER ASSY,GEAR CHANG

€ 51.00

17-19

131611019
ref: 17-19
E/NO. 009621~

LEVER ASSY,GEAR CHANG

€ 51.00

18

92083018
ref: 18

SPRING-KICK PAWL

€ 6.00

19

92083028
ref: 19

SPRING,CHG PEDL RTRN

€ 9.50

20

920011401
ref: 20

BOLT,RETURN SPRING

€ 3.00

21

112G0618
ref: 21

BOLT-UPSET

€ 0.50

22

131681039
ref: 22

LEVER,GEAR POSITIONIN

€ 2.50

23

920221565
ref: 23

WASHER,6.5X16X2

€ 2.50

24

920281058
ref: 24

BUSHING,GEAR POSITION

€ 1.50

25

920811148
ref: 25

SPRING,GEAR POSITIONI

€ 4.00

26

132361011
ref: 26

LEVER,NEUTRAL POSITIO

€ 2.50

27

92081003
ref: 27

SPRING,GEAR CHNG LEV

€ 3.50
