REAR BRAKE ('77-'78 A1/A2/A2A)

KZ1000A4 KZ1000 1980 CANADA

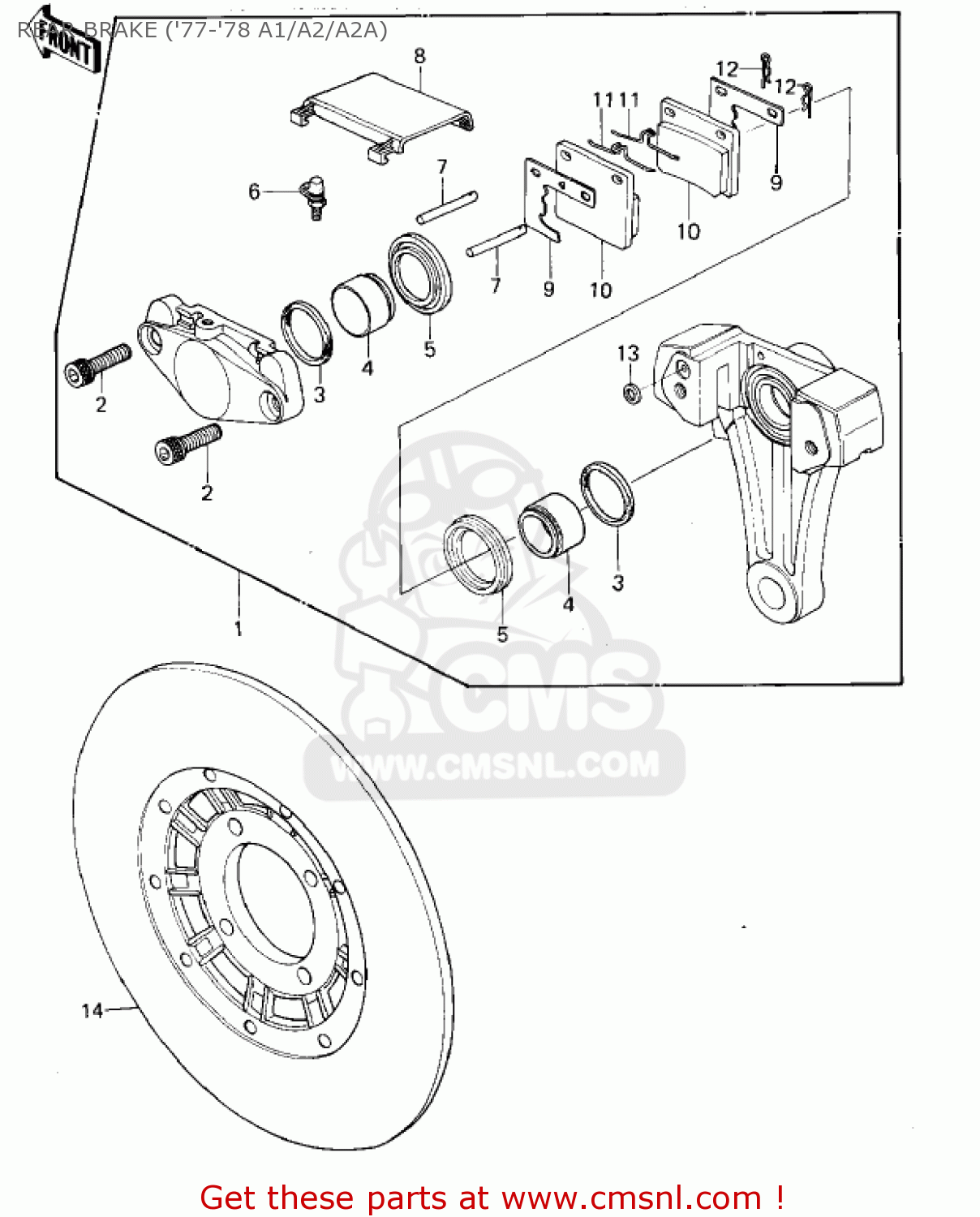

Rear brake ('77-'78 a1/a2/a2a) diagram KZ1000A4 KZ1000 1980 CANADA

prices are in EUR

ref

part #

description

quantity

43041025
ref: 1

CALIPER ASSY, REAR

€ 348.00

43033005
ref: 2

BOLT

€ 6.00

43049002A
ref: 3

PISTON SEAL RING

€ 9.00

43048008
ref: 4

PISTON-CALIPER,RR

€ 80.50

43054004
ref: 5

BOOT,PISTON

€ 10.00

43085001
ref: 6

BREEDER SET

€ 16.50

43045007
ref: 7

PIN CALIPER

€ 4.00

43024004
ref: 8

COVER-SEAL,CALIPER

€ 13.50

43076004
ref: 9

SHIM

€ 4.00

43050010
ref: 10

PAD-BRAKE (MCA)

€ 51.00

43086002
ref: 11

SPRING

€ 5.50

43084003
ref: 12

CLIP, PAD

€ 2.50

43053008
ref: 13

RING,SEAL,8.5X13.5X2.

€ 8.00

41080010
ref: 14

DISC PLATE, REAR DISC

€ 413.00
