CARBURETOR ASSY ('77-'78 A1/A2/A
KZ1000A4 KZ1000 1980 CANADA

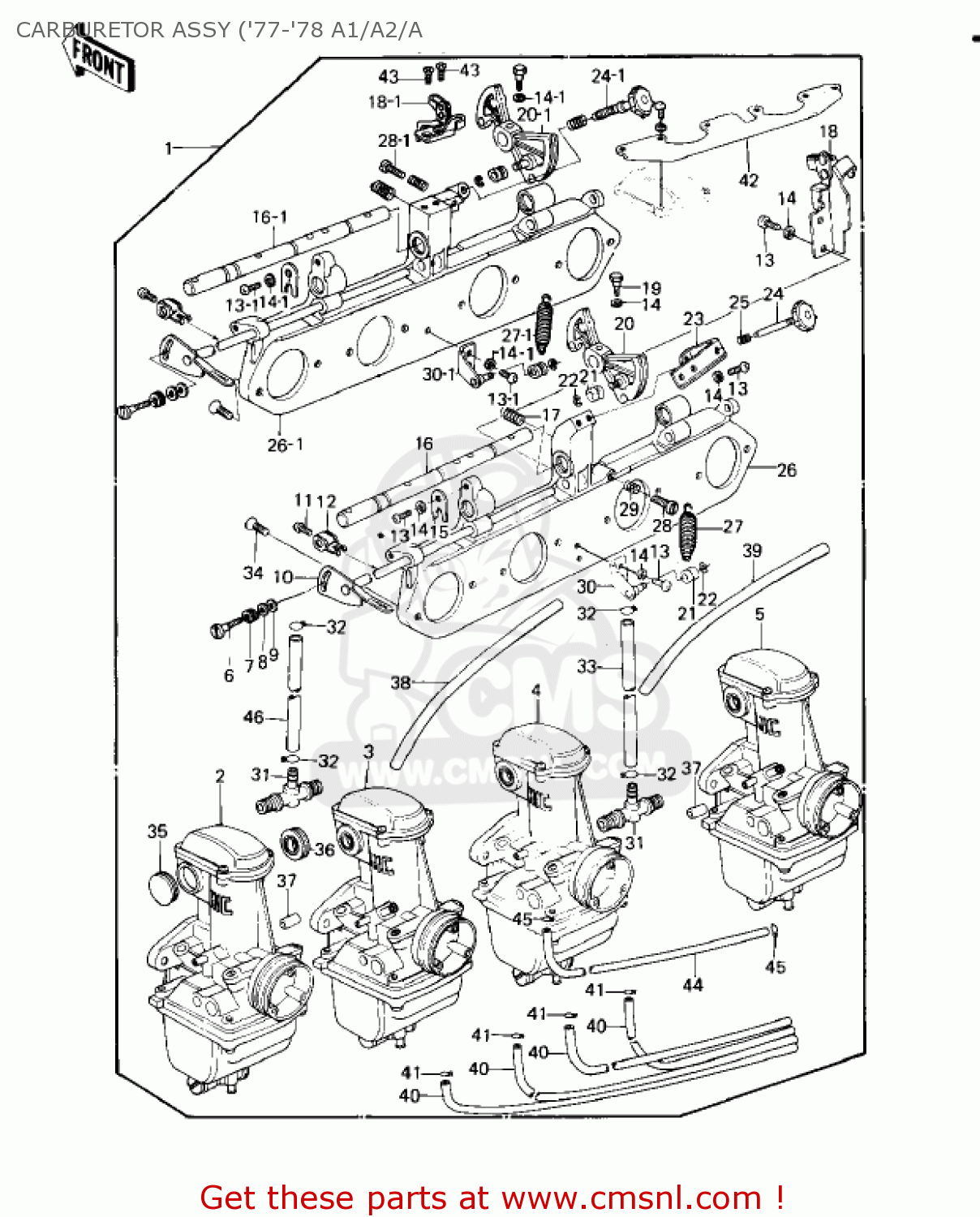

Carburetor assy ('77-'78 a1/a2/a diagram KZ1000A4 KZ1000 1980 CANADA
CARBURETOR ASSY ('77-'78 A1/A2/A KZ1000A4 KZ1000 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160011024
ref: 1
E/NO 1 012015
CARBURETOR ASSY
€ 1,412.00
1
160011024
ref: 1
E/NO. 012016 042500
CARBURETOR ASSY
€ 1,412.00
1
160011025
ref: 1
KZ1000-A2
CARBURETOR ASSY
€ 1,503.50
1
160011023
ref: 1
KZ1000-A2A~
CARBURETOR ASSEMBLY
€ 863.50
2
16001311
ref: 2
USE FOR 16001-299/-1
CARB ASSY,L.H OUTSIDE
€ 429.00
2
160011056
ref: 2
USE FOR 16001-1025
CARBURETOR,L.H OUT
€ 344.50
2
160011075
ref: 2
USE FOR 16001-1023
CARBURETOR,OUTSIDE,LH
€ 327.00
3
16001312
ref: 3
USE FOR 16001-299/-1
CARB ASSY,L.H INSIDE
€ 353.50
3
160011057
ref: 3
USE FOR 16001-1025
CARBURETOR,L.H INSIDE
€ 344.50
3
160011076
ref: 3
USE FOR 16001-1023
CARBURETOR,INSIDE,LH
€ 326.50
4
16001313
ref: 4
USE FOR 16001-299/-1
CARB ASSY,R.H INSIDE
€ 353.50
4
160011058
ref: 4
USE FOR 16001-1025
CARBURETOR,R.H INSIDE
€ 340.50
4
160011077
ref: 4
USE FOR 16001-1023
CARBURETOR,INSIDE,RH
€ 326.50
5
16001314
ref: 5
USE FOR 16001-299/-1
CARB ASSY,R.H OUTSIDE
€ 353.50
5
160011059
ref: 5
USE FOR 16001-1025
CARBURETOR,R.H OUT
€ 340.50
5
160011078
ref: 5
USE FOR 16001-1023
CARBURETOR,OUTSIDE,RH
€ 326.50
6
16046005
ref: 6
SCREW
€ 4.50
7
16040009
ref: 7
SPRING,F
€ 6.50
8
410B0500
ref: 8
STEEL
WASHER-PLAIN-SMALL,5M
€ 0.50
9
16039019
ref: 9
NYLON
WASHER-PLAIN
€ 3.00
10
16041021
ref: 10
SHAFT,STARTER PLUNGER
€ 37.50
11
16046007
ref: 11
SCREW,PAN HEAD,5X7
€ 6.50
12
131681026
ref: 12
USE FOR 16001-299/-1
LEVER,STARTER PLUNGER
€ 13.50
12
131681026
ref: 12
USE FOR 16001-1023
LEVER,STARTER PLUNGER
€ 13.50
13
220B0514
ref: 13
USE FOR 16001-299
ACREW-PAN HEAD,5X14
€ 2.50
13-1
220B0514
ref: 13-1
USE FOR 16001-1024/-
ACREW-PAN HEAD,5X14
€ 2.50
14
461F0500
ref: 14
USE FOR 16001-299
WASHER-SPRING,5MM
€ 0.50
14-1
461F0500
ref: 14-1
USE FOR 16001-1024/-
WASHER-SPRING,5MM
€ 0.50
15
16055012
ref: 15
PLATE,SHAFT STOPPER
€ 7.00
16
16041022
ref: 16
USE FOR 16001-299
SHAFT,CARB CONNECTION
€ 43.00
16-1
16041017
ref: 16-1
USE FOR 16001-1024/-
SHAFT,CARB CONNECTION
€ 47.50
17
16040022
ref: 17
SPRING,CABLE PLY BKT
€ 6.00
18
16077014
ref: 18
USE FOR 16001-299
BRACKET,CABLE PULLY
€ 35.00
18-1
16077017
ref: 18-1
USE FOR 16001-1024/-
BRACKET,THROTTLE CABL
€ 41.00
19
16067006
ref: 19
BOLT-HEX HEAD,5X14
€ 10.50
20
16068017
ref: 20
USE FOR 16001-299
PULLY,THROTTLE CABLE
€ 31.00
20-1
16068015
ref: 20-1
USE FOR 16001-1024/-
PULLEY,THROTTLE CABLE
€ 46.00
21
16073016
ref: 21
RING
€ 8.00
22
482K3000
ref: 22
CIRCLIP-TYPE-E,3MM
€ 2.00
23
16077013
ref: 23
USE FOR 16001-299
HOLDER,THROTTLE SCREW
€ 16.50
24
16021028
ref: 24
USE FOR 16001-299
SCREW,THROTTLE STOP
€ 20.50
24-1
160211010
ref: 24-1
USE FOR 16001-1024/-
SCREW-THROTTLE STOP
€ 16.00
25
16022017
ref: 25
SPRING, THROTTLE STOP
€ 4.50
26
16065039
ref: 26
USE FOR 16001-299
HOLDER,CARB MOUNTING
€ 89.00
26-1
16065049
ref: 26-1
USE FOR 16001-1024/-
HOLDER, CARBURETOR
€ 78.50
27
16040020
ref: 27
USE FOR 16001-299
SPRING,CABLE PULLY
€ 18.50
27-1
920811028
ref: 27-1
USE FOR 16001-1024/-
SPRING,THORTTLE PULLY
€ 41.00
28
16021020
ref: 28
USE FOR 16001-299
SCREW-THROTTLE STOP
€ 13.00
28-1
16021032
ref: 28-1
USE FOR 16001-1024/-
SCREW
€ 4.00
29
16022010
ref: 29
USE FOR 16002-299
SPRING,THROTTLE ADJST
€ 4.50
30
16077018
ref: 30
USE FOR 16002-299
BRK,THROT CABLE PULLY
€ 16.50
30-1
16077016
ref: 30-1
USE FOR 16001-1024/-
BRACKET,THROTTLE CABL
€ 10.00
31
16046002
ref: 31
SCREW,FUEL PIPE
€ 31.50
32
92037056
ref: 32
CLAMP,FUEL TUBE
€ 3.00
33
92059144
ref: 33
HOSE, FUEL
€ 50.50
34
16033029
ref: 34
SCREW,PAN HEAD,6X14
€ 3.00
35
16039042
ref: 35
CAP,RUBBER
€ 9.00
36
92071104
ref: 36
GROMMET,CARBURETOR
€ 16.00
37
92059141
ref: 37
HOSE, 6X11.5X16
€ 9.00
38
920591028
ref: 38
USE FOR 16001-299/-1
HOSE,AIR VENT,5X8X550
€ 13.00
38
920591028
ref: 38
USE FOR 16001-1025/-
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
USE FOR 16001-299/-1
HOSE,AIR VENT,5X8X550
€ 13.00
39
920591028
ref: 39
USE FOR 16001-1025/-
HOSE,AIR VENT,5X8X550
€ 13.00
40
92059147
ref: 40
HOSE,FUEL OVERFLOW
€ 17.50
41
92037173
ref: 41
CLAMP,TUBE
€ 4.50
42
16065040
ref: 42
USE FOR 16001-299
PLATE,CARB CONNECTION
€ 9.50
43
221B0510A
ref: 43
USE FOR 16001-1024/-
SCREW-CNTSNK HD,5X10
€ 2.50
44
920591023
ref: 44
USE FOR 16001-1025/-
HOSE,FUEL TAP DIAPHRA
€ 17.00
45
92037072
ref: 45
CLAMP,TUBE
€ 4.00
46
920591059
ref: 46
USE FOR 16005-1025/1
HOSE,6.50X11.50X100
€ 18.50
