IGNITION/REGULATOR/RECTIFIER ('7
KZ1000A4 KZ1000 1980 CANADA

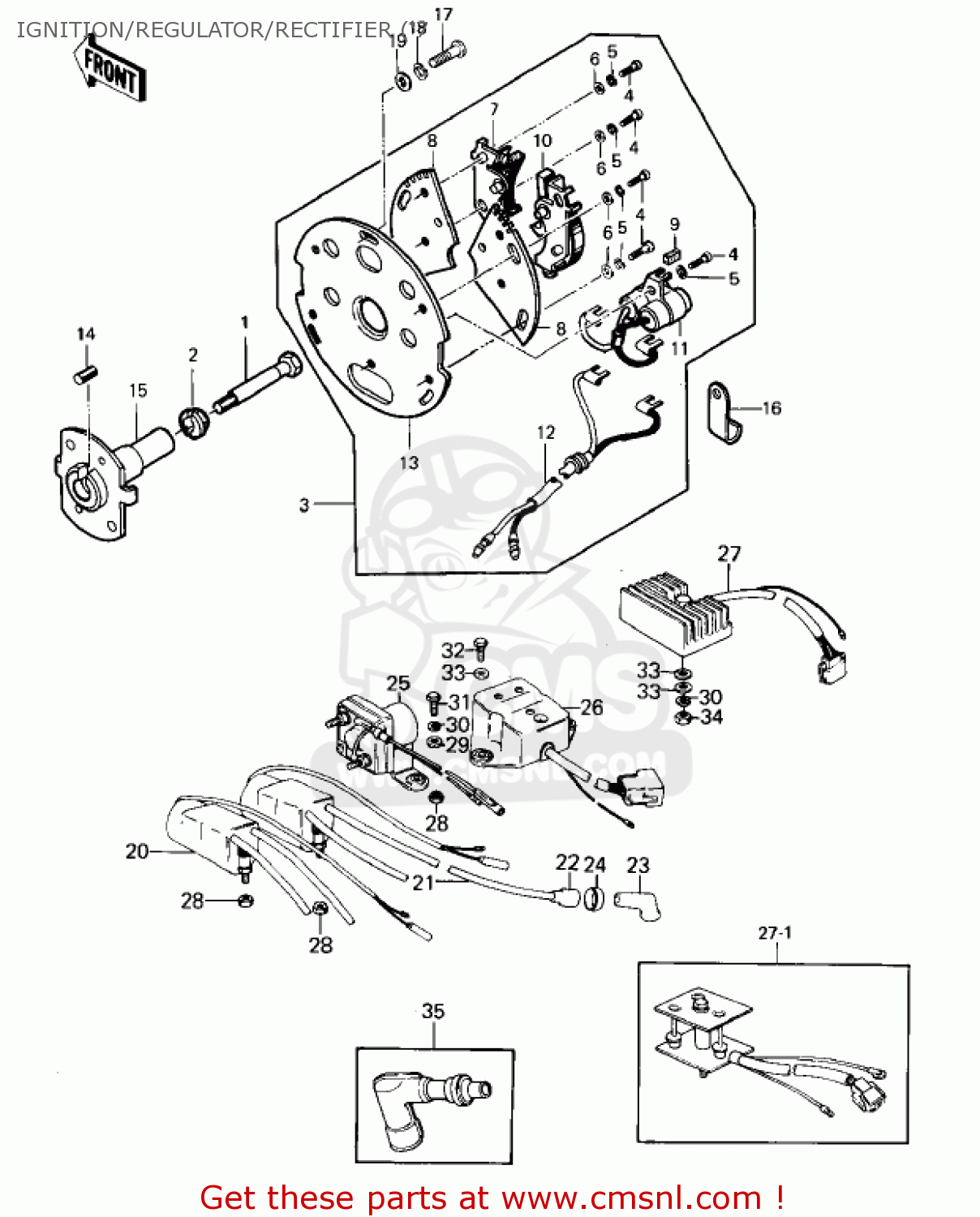

Ignition/regulator/rectifier ('7 diagram KZ1000A4 KZ1000 1980 CANADA
IGNITION/REGULATOR/RECTIFIER ('7 KZ1000A4 KZ1000 1980 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
92001113
ref: 1
BOLT,SPARK ADVANCER
€ 19.50
2
92022244
ref: 2
WASHER,BREAKER GOVERN
€ 9.50
3
21135011
ref: 3
BREAKER,CONTACT
€ 182.50
4
220B0408
ref: 4
SCREW-PAN-CROS
€ 0.50
5
461F0400
ref: 5
WASHER-SPRING,4MM
€ 0.50
6
410B0400
ref: 6
WASHER-PLAIN-SMALL,4M
€ 0.50
7
21008028
ref: 7
NO. 2 & 3
BREAKER,CONTACT
€ 43.00
8
21156010
ref: 8
PLATE,CONTACT BREAKER
€ 12.00
9
21019005
ref: 9
BRUSH,OIL
€ 3.00
10
21008027
ref: 10
NO. 1 & 4
BREAKER,CONTACT
€ 43.00
11
21013035
ref: 11
CONDENSER
€ 41.50
12
21029037
ref: 12
WIRING HARNESS,MAIN
€ 34.50
13
21021004
ref: 13
PLATE,CONTACT BREAKER
€ 39.50
14
555A0408
ref: 14
PIN-SPRING,4X8
€ 2.50
15
21148010
ref: 15
KZ1000-A1/A2
GOVERNOR-BREAKER
€ 132.00
15
211481003
ref: 15
KZ1000-A2A~
GOVERNOR-BREAKER
€ 141.50
16
21126008
ref: 16
CLAMP,WIRING HARNESS
€ 3.00
17
220B0512
ref: 17
SCREW-PAN-CROS
€ 0.50
18
461F0500
ref: 18
WASHER-SPRING,5MM
€ 0.50
19
411B0500
ref: 19
WASHER-PLAIN,5MM
€ 0.50
20
211211003
ref: 20
NO. 1 & 4
COIL-IGNITION,#1&4
€ 229.50
20
211211003
ref: 20
COIL-IGNITION,#1&4
€ 229.50
21
211211004
ref: 21
NO. 2 & 3
COIL-IGNITION,#2&3
€ 221.50
22
21131005
ref: 22
GROMMET,TENSION,ITALY
€ 4.00
23
211601014
ref: 23
CAP-ASSY-PLUG
€ 27.00
24
21131006
ref: 24
GROMMET,PLUG CAP
€ 5.00
25
270101023
ref: 25
SWITCH ASSY,MAGNETIC
€ 135.50
26
21066025
ref: 26
REGULATOR-VOLTAGE
€ 202.00
27
999961159
ref: 27
SET,RECTIFIER,KZ1000-
€ 270.00
27-1
999961159
ref: 27-1
SET,RECTIFIER,KZ1000-
€ 270.00
28
92017014
ref: 28
NUT,LOCK,6MM
€ 4.00
29
92022237
ref: 29
WASHER-PLAIN
€ 2.50
30
461F0600
ref: 30
WASHER-SPRING,6MM
€ 0.50
31
112G0620
ref: 31
BOLT 6X20
€ 1.00
31
112B0614
ref: 31
USE FOR P/NO. 27010-
BOLT-UPSET 6X14
€ 2.50
32
112G0612
ref: 32
BOLT-UPSET
€ 2.50
33
410B0600
ref: 33
WASHER-PLAIN-SMALL,6M
€ 0.50
34
311B0600
ref: 34
NUT,6MM
€ 0.50
35
21160005
ref: 35
USE FOR CANADIAN MAR
CAP-ASSY-PLUG
€ 29.00
