MUFFLERS ('77-'78 A1/A2/A2A)
KZ1000A3 KZ1000 1979 CANADA

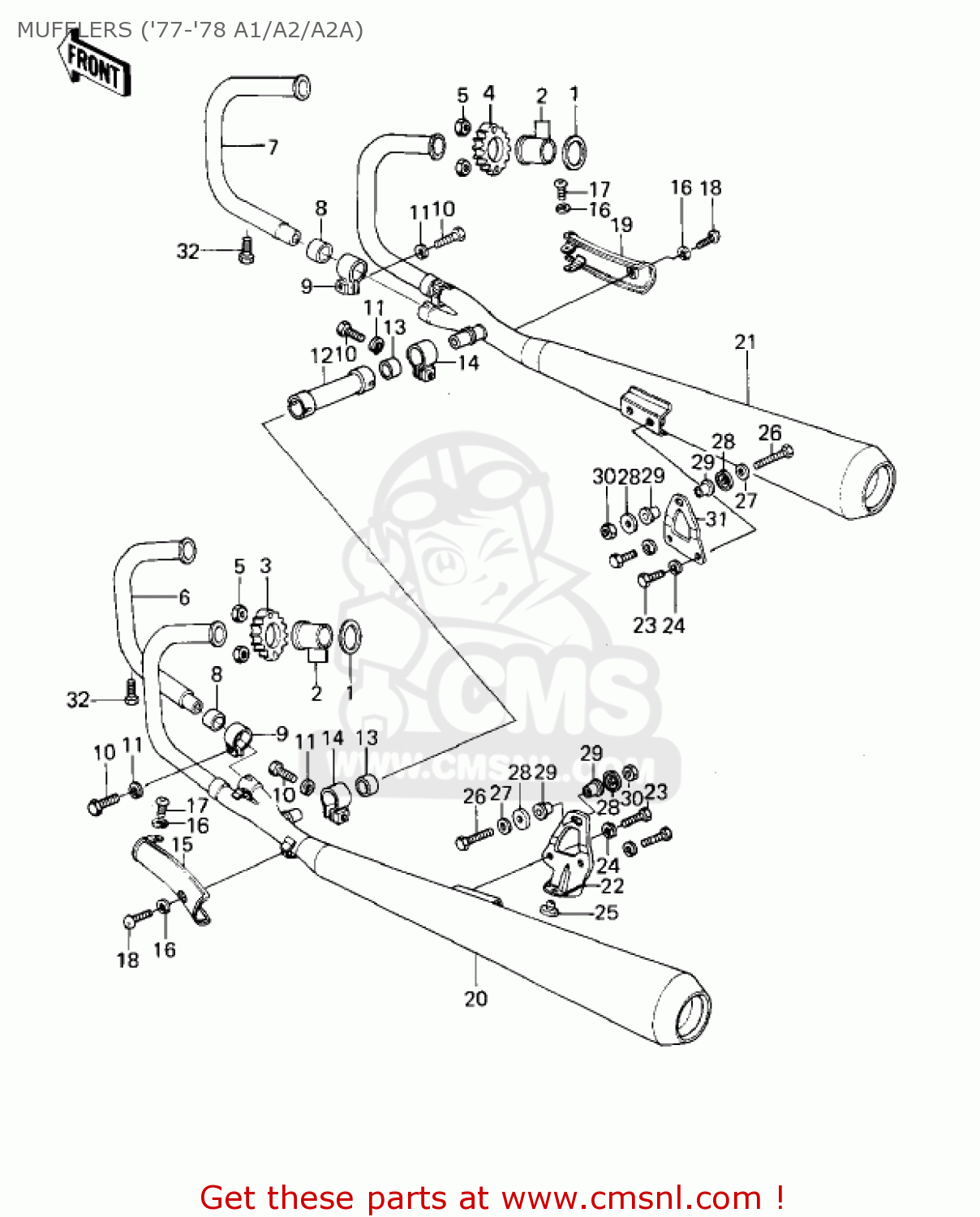

Mufflers ('77-'78 a1/a2/a2a) diagram KZ1000A3 KZ1000 1979 CANADA
MUFFLERS ('77-'78 A1/A2/A2A) KZ1000A3 KZ1000 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110091906
ref: 1
GASKET,EXHAUST PIPE H (NAS)
€ 7.00
2
92027170
ref: 2
COLLAR,EXHAUST PIPE
€ 8.00
3
180691005
ref: 3
HOLDER,EXHAUST PIPE,L
€ 41.00
4
180691004
ref: 4
HOLDER,EXHAUST PIPE,R
€ 33.00
5
92017013
ref: 5
NUT,LOCK,8MM
€ 5.50
6
180491089
ref: 6
KZ1000-A1/A2
PIPE,EXHAUST,L.H INSI
€ 144.50
6
180491018
ref: 6
KZ1000-A2A~
EXHAUST PIPE,INNER,LH
€ 85.00
7
180491090
ref: 7
KZ1000-A1/A2
PIPE,EXHAUST,R H,INSI
€ 152.00
7
180491019
ref: 7
KZ1000-A2A~
EXHAUST PIPE,INNER,RH
€ 85.00
8
110601068
ref: 8
GASKET,MANIFOLD EXHAU (NAS)
€ 20.50
9
920371258
ref: 9
CLAMP,MUFFLER
€ 10.50
10
114G0832
ref: 10
BOLT-HEX HEAD,8X32
€ 2.50
11
461F0800
ref: 11
WASHER-SPRING,8MM
€ 0.50
12
18039025
ref: 12
PIPE, MUFFLER CONNECT
€ 18.00
13
110091718
ref: 13
GASKET,EXHAUST PIPE C (NAS)
€ 17.00
14
920371221
ref: 14
CLAMP,CONNECTING PIPE
€ 8.00
15
18057051
ref: 15
COVER, MUFFLER, L.H
€ 13.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
220B0640
ref: 17
SCREW-PAN HEAD,6X40
€ 2.00
18
92011039A
ref: 18
SCREW,PAN HEAD,6X8,220E0608
€ 2.00
19
18057052
ref: 19
COVER, MUFFLER, R.H
€ 13.50
20
180011007
ref: 20
KZ1000-A1/A2
MUFFLER ,L.H,31311S
€ 546.00
20
180011022
ref: 20
KZ1000-A2A~
MUFFLER ASSEMBLY,LH
€ 294.00
21
180011008
ref: 21
KZ1000-A1/A2
MUFFLER ,R.H,31311S
€ 449.50
21
180011023
ref: 21
KZ1000-A2A~
MUFFLER ASSEMBLY,RH
€ 286.50
22
18024038
ref: 22
BRACKET, MUFFLER, R.H
€ 19.50
23
115B0814
ref: 23
BOLT SMALL UPSET 8X14
€ 1.00
24
461F0800
ref: 24
WASHER-SPRING,8MM
€ 0.50
25
92075015
ref: 25
DAMPER RUBB-MAIN STND
€ 3.00
26
113N1060
ref: 26
BOLT-SMALL-FINE,10X60
€ 9.50
27
410B1000
ref: 27
WASHER-PLAIN-SMALL,10
€ 0.50
28
92022328
ref: 28
WASHER,PLAIN
€ 2.50
29
92092010
ref: 29
BUSHING-MUFFLER FITT
€ 11.00
30
92019021
ref: 30
NUT,LOCK,10M/M
€ 2.00
31
18024035A
ref: 31
MUFFLER BRACKET,RH
€ 79.00
32
110R0610
ref: 32
BOLT,6X10
€ 5.00
