CARBURETOR PARTS ('77-'78 A1/A2/
KZ1000A3 KZ1000 1979 CANADA

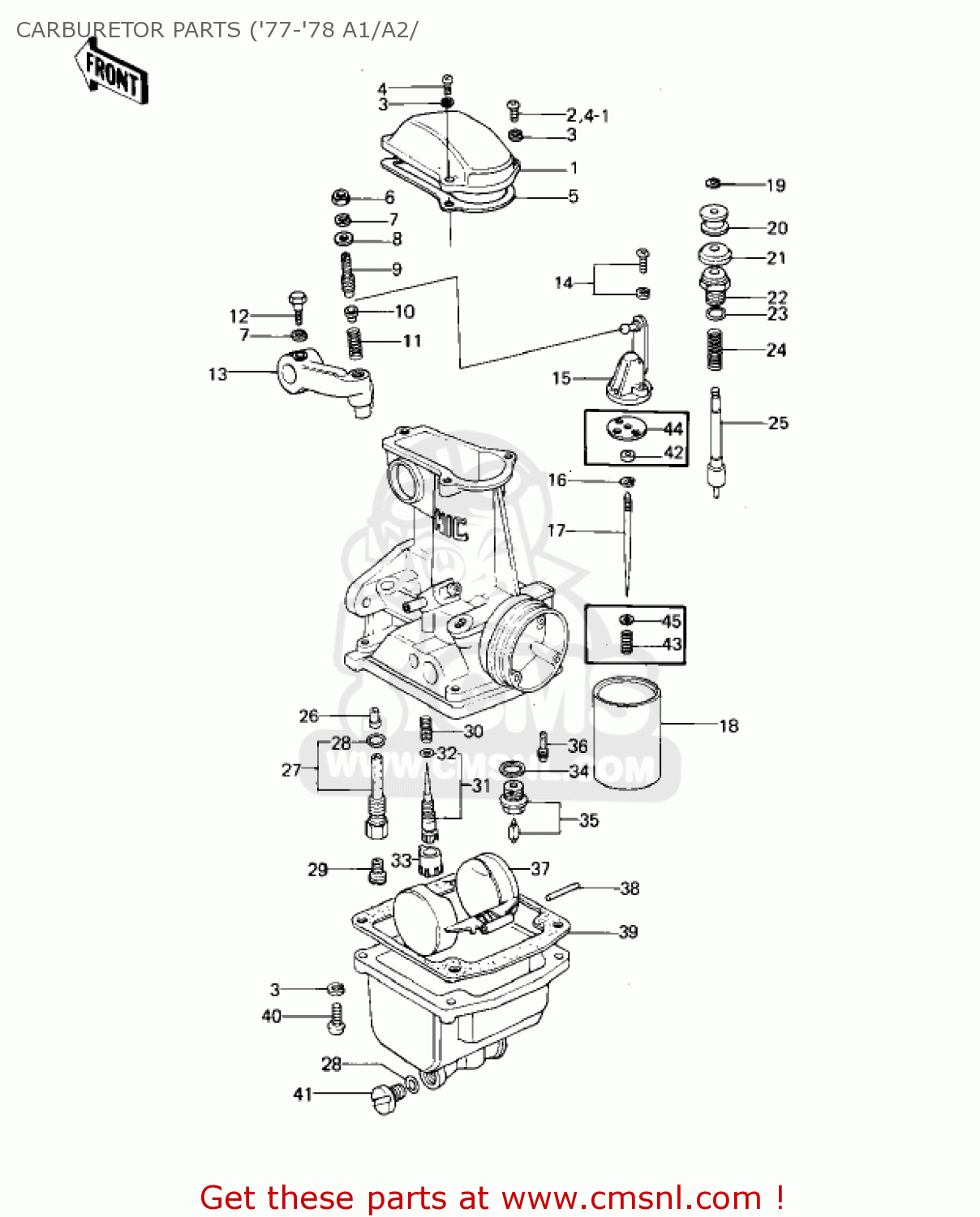

Carburetor parts ('77-'78 a1/a2/ diagram KZ1000A3 KZ1000 1979 CANADA
CARBURETOR PARTS ('77-'78 A1/A2/ KZ1000A3 KZ1000 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
16005027
ref: 1
TOP,MIXING CHAMBER
€ 15.50
2
220B0416
ref: 2
USE FOR 16001-299
SCREW-PAN-CROS
€ 2.00
3
461F0400
ref: 3
WASHER-SPRING,4MM
€ 0.50
4
223B0414
ref: 4
SCREW PAN-WS-CROS
€ 2.50
4-1
223B0414
ref: 4-1
USE FOR 16001-1024/-
SCREW PAN-WS-CROS
€ 2.50
5
16019031
ref: 5
GASKET,CHAMBER,TOP (NAS)
€ 24.50
6
16003013
ref: 6
NUT,5M/M
€ 6.00
7
461F0500
ref: 7
WASHER-SPRING,5MM
€ 0.50
8
16039016
ref: 8
WASHER,PLAIN
€ 3.50
9
16046012
ref: 9
SCREW, SLOTTED
€ 13.50
10
16057002
ref: 10
SEAT-SPRING
€ 6.00
11
16040026
ref: 11
SPRING
€ 3.50
12
16067006
ref: 12
BOLT-HEX HEAD,5X14
€ 10.50
13
390751001
ref: 13
LEVER,THROTTLE
€ 25.00
14
16033031
ref: 14
SCREW, PAN HEAD, 3X14
€ 3.50
15
16007028
ref: 15
USE FOR 16001-299/-1
BRACKET,THROTTLE VALV
€ 41.00
15
110341238
ref: 15
USE FOR 16001-1023
THROTTLE VALVE BRACKET
€ 29.00
16
16008010
ref: 16
CLAMP,E-TYPE
€ 5.00
17
16009074
ref: 17
USE FOR 16001-299/10
NEEDLE-JET
€ 29.50
17
16009071
ref: 17
USE FOR 16001-1025
NEEDLE-JET,5DL3
€ 29.50
17
160091014
ref: 17
USE FOR 16001-1023
JET,NEEDLE,5CN7
€ 19.00
18
16025085
ref: 18
USE FOR 16001-299/-1
VALVE,THROTTLE, CA1.5
€ 61.00
18
160251014
ref: 18
USE FOR 16001-1023
THROTTLE VALVE,CA2.0
€ 67.00
19
16076003
ref: 19
CLAMP
€ 4.50
20
16073014
ref: 20
COLLAR,STARTER PLUNGE
€ 5.50
21
16039015
ref: 21
CAP,STARTER PLUNGER
€ 4.50
22
16012015
ref: 22
CAP-STARTER PLUNGER
€ 8.50
23
670B1509
ref: 23
O RING,9MM
€ 1.00
24
16013008
ref: 24
SPRING-STARTER PLUNG
€ 4.50
25
16016021
ref: 25
PLUNGER,STARTER
€ 26.00
26
16017097
ref: 26
USE FOR 16001-299/-1
NEEDLE JET, O-6
€ 16.00
26
160171034
ref: 26
USE FOR 16001-1025
JET-NEEDLE,AO-5
€ 38.00
26
160171017
ref: 26
USE FOR 16001-1023
JET,NEEDLE,#AO-3
€ 20.00
27
16047006
ref: 27
USE FOR 16001-299/-1
BLEED PIPE
€ 34.00
27
491221001
ref: 27
USE FOR 16001-1025
PIPE-BLEEDER
€ 37.50
27
491221004
ref: 27
USE FOR 16001-1023
BLEED PIPE
€ 17.50
28
16038016
ref: 28
GASKET,O-RING
€ 2.50
29
92063073
ref: 29
USE FOR 16001-299/-1
JET-MAIN,#107.5R
€ 9.50
29
920631042
ref: 29
USE FOR 16001-1025
JET-MAIN,#A105R
€ 10.50
29
920631028
ref: 29
USE FOR 16001-1023
JET-MAIN,#A102.5R
€ 10.00
29
920631033
ref: 29
RACING USE ONLY
JET-MAIN,#A100R
€ 17.00
29
920631038
ref: 29
RACING USE ONLY
JET-MAIN,#A110
€ 10.50
29
92063075
ref: 29
RACING USE ONLY
MAIN JET,#112.5R
€ 10.00
30
16022016
ref: 30
SPRING, PILOT SCREW
€ 6.00
31
16014018
ref: 31
SCREW-PILOT AIR
€ 19.00
32
16038024
ref: 32
O RING
€ 1.00
33
16012022
ref: 33
USE FOR 16001-299/-1
CAP, LINTTER
€ 3.50
33
110121041
ref: 33
USE FOR 16001-1023
LIMITER CAP
€ 3.00
34
16029004
ref: 34
WASHER-FLOAT VLV SEAT
€ 2.50
35
16030027
ref: 35
VALVE-FLOAT
€ 85.00
36
92064042
ref: 36
USE FOR 16001-299/-1
JET-PILOT,#17.5
€ 14.00
36
920641003
ref: 36
USE FOR 16001-1025
PILOT JET,#15
€ 15.00
36
920641017
ref: 36
USE FOR 16001-1023
PILOT JET #A15
€ 15.00
37
16031031
ref: 37
FLOAT
€ 114.50
38
16032003
ref: 38
FLOAT PIN
€ 4.00
39
110091563
ref: 39
GASKET,FLOAT CHAMBER (NAS)
€ 14.00
40
220B0416
ref: 40
SCREW-PAN-CROS
€ 2.00
41
16049007
ref: 41
SCREW, GUIDE
€ 9.50
42
920271103
ref: 42
USE FOR 16001-1023
RING,JET NEEDLE
€ 4.50
43
920811072
ref: 43
USE FOR 16001-1023
NEEDLE JET SPRING
€ 2.50
44
131691107
ref: 44
USE FOR 16001-1023
NEEDLE JET PLATE
€ 5.50
45
920221024
ref: 45
USE FOR 16001-1023
WASHER,THROTTLE VALVE
€ 4.50
