METERS/IGNITION SWITCH ('77-'78
KZ1000A3 KZ1000 1979 CANADA

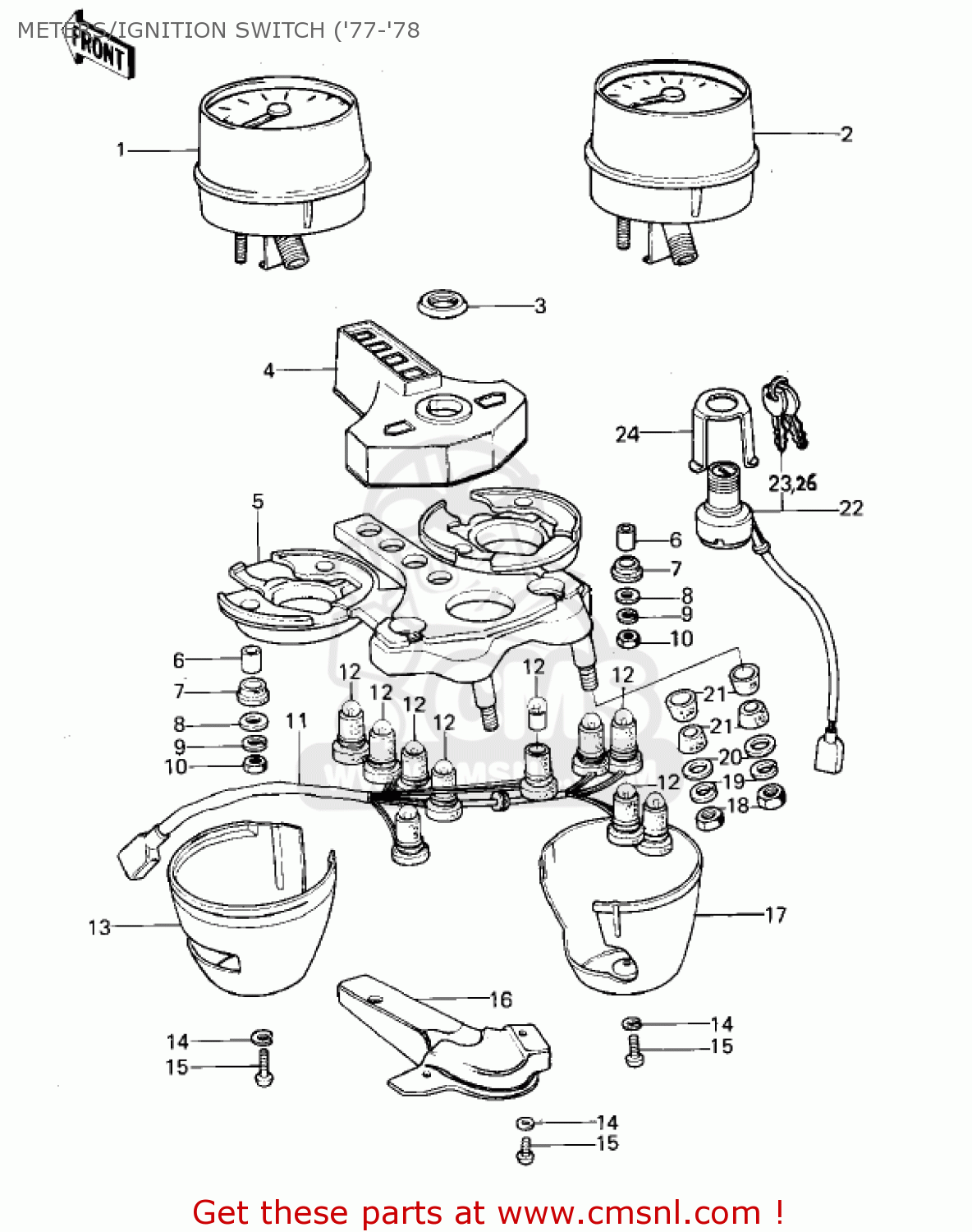

Meters/ignition switch ('77-'78 diagram KZ1000A3 KZ1000 1979 CANADA
METERS/IGNITION SWITCH ('77-'78 KZ1000A3 KZ1000 1979 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
250051031
ref: 1
SPEEDOMETER ASSY,MPH
€ 502.00
1
25006056
ref: 1
SPEEDOMETER ASSY,KPH
€ 760.00
2
250151010
ref: 2
KZ1000-A1
TACHOMETER
€ 465.50
2
250151010
ref: 2
KZ1000-A2
TACHOMETER
€ 465.50
3
27007004
ref: 3
NUT,IGNITION SWITCH
€ 8.00
4
25023015
ref: 4
COVER-METER CASE
€ 98.00
5
25008045
ref: 5
BRACKET,SPEEDOMETER
€ 156.00
6
92027211
ref: 6
COLLAR,5.6X8X13.8
€ 8.50
7
92075172
ref: 7
DAMPER
€ 12.50
8
92022241
ref: 8
WASHER,5.2X15X1.6
€ 2.50
9
461F0500
ref: 9
WASHER-SPRING,5MM
€ 0.50
10
312B0500
ref: 10
NUT-HEX,5MM
€ 0.50
11
25011049
ref: 11
SOCKET,SPEEDOMETER
€ 155.00
12
92069018
ref: 12
BULB 12V 3W
€ 4.00
13
25012010A
ref: 13
SPEEDOMETER COVER
€ 89.50
14
461F0300
ref: 14
WASHER-SPRING,3MM
€ 0.50
15
220B0308
ref: 15
SCREW-PAN-CROS
€ 0.50
16
25024006
ref: 16
COVER,METER BRACKET
€ 14.50
17
25012011
ref: 17
COVER,TACHOMETER
€ 70.50
18
311B0800
ref: 18
NUT,8MM
€ 0.50
19
461F0800
ref: 19
WASHER-SPRING,8MM
€ 0.50
20
411B0800
ref: 20
WASHER-PLAIN,8MM
€ 0.50
21
92075080
ref: 21
DAMPER
€ 5.50
22
27005092
ref: 22
SWITCH ASSY, IGNITION
€ 115.00
23
2700806951
ref: 23
KEY SET,#751
€ 34.50
23
2700806952
ref: 23
KEY SET,#752
€ 31.00
23
2700806953
ref: 23
KEY SET,#753
€ 34.50
23
2700806954
ref: 23
KEY SET,#754
€ 40.50
23
2700806955
ref: 23
KEY SET,#755
€ 18.00
23
2700806956
ref: 23
KEY SET,#756
€ 31.00
23
2700806957
ref: 23
KEY SET,#757
€ 31.00
23
2700806958
ref: 23
KEY SET,#758
€ 15.50
23
2700806959
ref: 23
KEY SET,#759
€ 34.50
23
2700806960
ref: 23
KEY SET,#760
€ 18.00
23
2700806961
ref: 23
KEY SET, # 761
€ 15.00
23
2700806962
ref: 23
KEY SET, # 762
€ 26.00
23
2700806963
ref: 23
KEY SET, # 763
€ 18.00
23
2700806964
ref: 23
KEY SET, # 764
€ 15.00
23
2700806965
ref: 23
KEY SET, # 765
€ 26.00
23
2700806966
ref: 23
KEY SET, # 766
€ 15.00
23
2700806967
ref: 23
KEY SET, # 767
€ 26.00
23
2700806968
ref: 23
KEY SET, # 768
€ 18.00
23
2700806969
ref: 23
KEY SET, # 769
€ 18.00
23
2700806970
ref: 23
KEY SET, # 770
€ 26.00
23
2700806971
ref: 23
KEY SET, # 771
€ 26.00
23
2700806972
ref: 23
KEY SET, # 772
€ 18.00
23
2700806973
ref: 23
KEY SET, # 773
€ 31.00
23
2700806974
ref: 23
KEY SET, # 774
€ 15.50
23
2700806975
ref: 23
KEY SET, # 775
€ 26.00
23
2700806976
ref: 23
KEY SET, # 776
€ 26.00
23
2700806977
ref: 23
KEY SET, # 777
€ 26.00
23
2700806978
ref: 23
KEY SET, # 778
€ 26.00
23
2700806979
ref: 23
KEY SET, # 779
€ 26.00
23
2700806980
ref: 23
KEY SET, # 780
€ 26.00
23
2700806981
ref: 23
KEY SET, # 781
€ 15.00
23
2700806982
ref: 23
KEY SET, # 782
€ 26.00
23
2700806983
ref: 23
KEY SET, # 783
€ 26.00
23
2700806984
ref: 23
KEY SET, # 784
€ 18.00
23
2700806985
ref: 23
KEY SET, # 785
€ 26.00
23
2700806986
ref: 23
KEY SET,#786
€ 31.00
23
2700806987
ref: 23
KEY SET,#787
€ 31.00
23
2700806988
ref: 23
KEY SET,#788
€ 18.00
23
2700806989
ref: 23
KEY SET,789
€ 31.00
23
2700806990
ref: 23
KEY SET,#790
€ 31.00
23
2700806991
ref: 23
KEY SET,#791
€ 31.00
23
2700806992
ref: 23
KEY SET,#792
€ 18.00
23
2700806993
ref: 23
KEY SET,#793
€ 31.00
23
2700806994
ref: 23
KEY SET,#794
€ 34.50
23
2700806995
ref: 23
KEY SET,#795
€ 34.50
24
27019003
ref: 24
HOLDER,IGNITION SWITC
€ 10.50
25
410B0300
ref: 25
WASHER-PLAIN-SMALL,3M
€ 0.50
26
270081013
ref: 26
KEY-LOCK,BLANK
