STARTER MOTOR/STARTER CLUTCH ('7
KZ1000A2A KZ1000 1978 CANADA

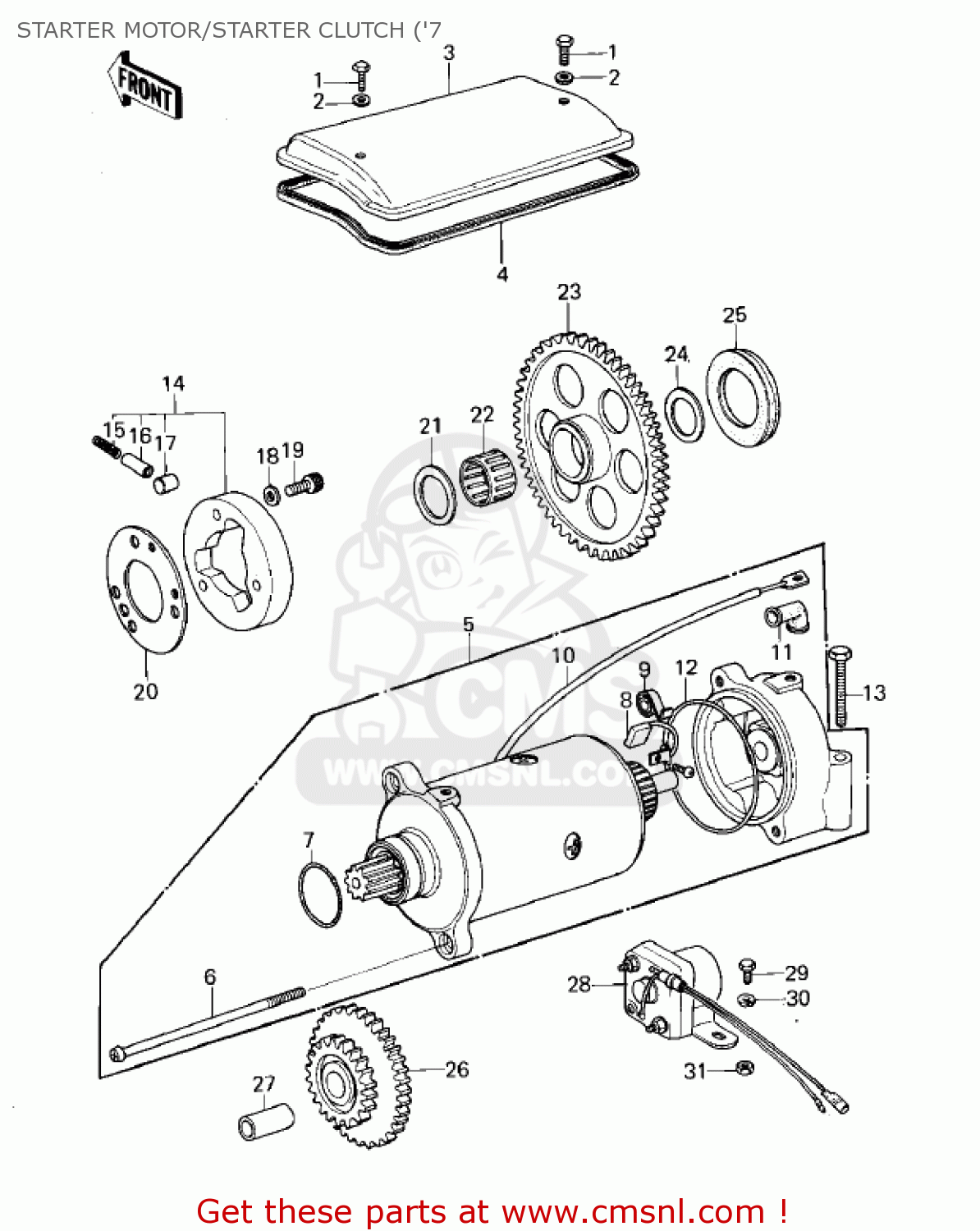

Starter motor/starter clutch ('7 diagram KZ1000A2A KZ1000 1978 CANADA
STARTER MOTOR/STARTER CLUTCH ('7 KZ1000A2A KZ1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110R0610
ref: 1
BOLT,6X10
€ 5.00
2
410D0600
ref: 2
WASHER-PLAIN-SMALL,6M
€ 0.50
3
21165001
ref: 3
COVER,STARTER MOTOR
€ 30.00
4
21166001
ref: 4
GASKET,STARTER COVER (NAS)
€ 23.50
5
211631006
ref: 5
MOTOR ASSY,STARTING
€ 480.50
6
21015005
ref: 6
SCREW-PAN HEAD,6X110
€ 5.50
7
21027004
ref: 7
ORING-STARTING MOTR
€ 6.50
8
21039003
ref: 8
BRUSH,CARBON
€ 23.50
9
21040003
ref: 9
SPRING-BRUSH
€ 4.50
10
260111036
ref: 10
WIRE,STARTING MOT LEA
€ 29.00
11
21017017
ref: 11
GROMMET-CORD
€ 6.50
12
21027003
ref: 12
RING-O,STARTER MOTOR
€ 6.00
13
920011456
ref: 13
BOLT,6X55
€ 3.00
14
131931006
ref: 14
CLUTCH-ASSY-ONEWAY
€ 150.50
15
92081110
ref: 15
SPRING
€ 3.00
16
92043087
ref: 16
PIN
€ 8.00
17
92122001
ref: 17
ROLLER,15X14.4
€ 7.50
18
920221108
ref: 18
WASHER,8.5X13.5X2
€ 2.50
19
120P0816
ref: 19
BOLT-SOCKET
€ 2.50
20
92026112
ref: 20
SPACER,45X79.5X0.5 (NAS)
€ 7.50
21
920261031
ref: 21
T=1.0
SPACER,(I=25,O=38)
€ 7.00
22
920461022
ref: 22
BEARING-NEEDLE,K25302
€ 24.50
23
160851012
ref: 23
GEAR,STARTER CLUTCH
€ 180.50
24
920261033
ref: 24
T=2.0
SPACER,25X34X2.0
€ 4.50
25
920751129
ref: 25
DAMPER,T=6.3
€ 18.00
25
920751130
ref: 25
DAMPER,T=7.3
€ 15.00
25
920751131
ref: 25
DAMPER,T=8.3
€ 13.50
26
21167002
ref: 26
GEAR-STARTING MOTOR
€ 89.00
27
13002007
ref: 27
PIN
€ 13.00
28
270101023
ref: 28
SWITCH ASSY,MAGNETIC
€ 135.50
29
112G0616
ref: 29
BOLT UPSET,6X16
€ 1.00
30
461F0600
ref: 30
WASHER-SPRING,6MM
€ 0.50
31
92017014
ref: 31
NUT,LOCK,6MM
€ 4.00
