CARBURETOR ASSY(CANADA)('79-'80
KZ1000A2A KZ1000 1978 CANADA

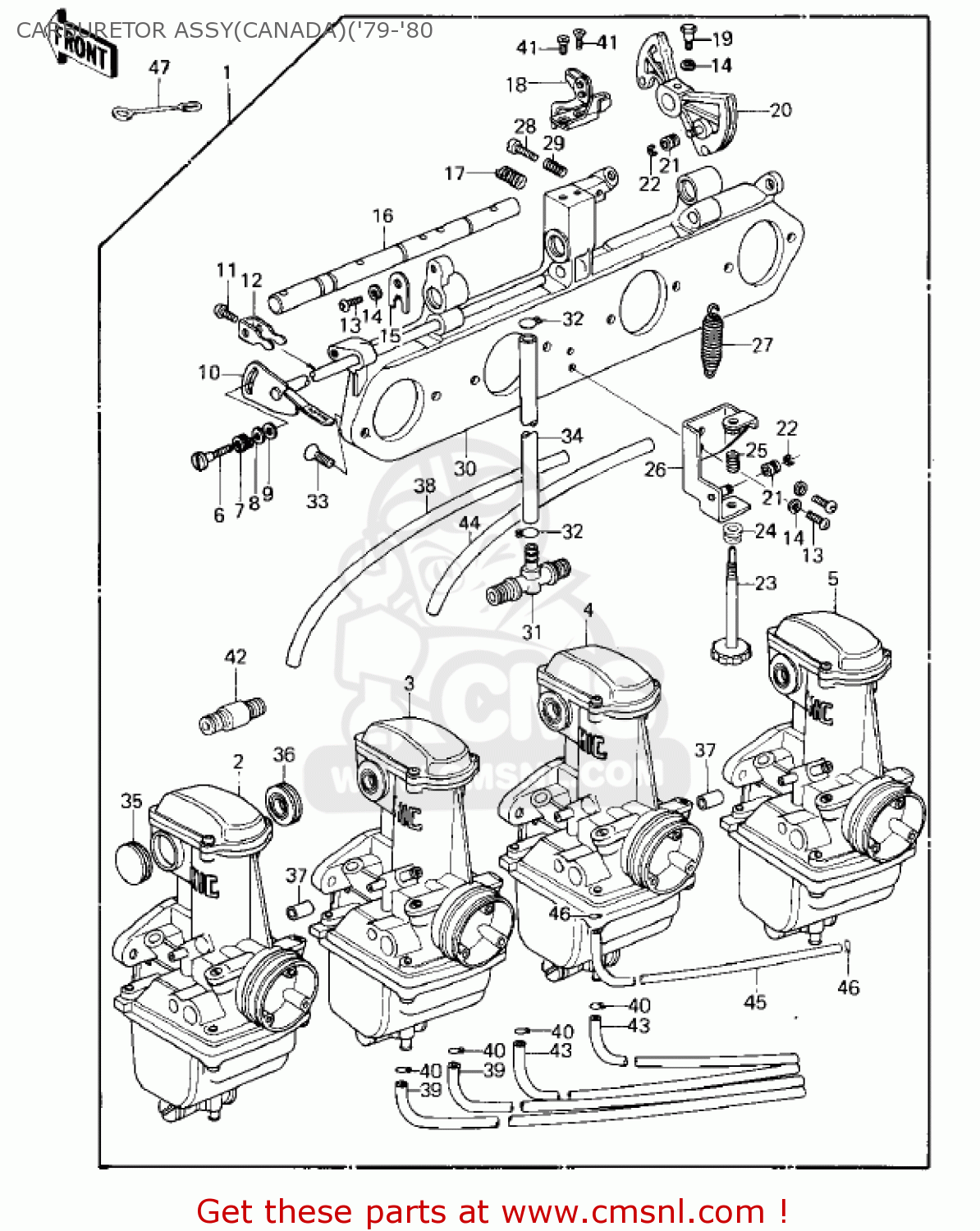

Carburetor assy(canada)('79-'80 diagram KZ1000A2A KZ1000 1978 CANADA
CARBURETOR ASSY(CANADA)('79-'80 KZ1000A2A KZ1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
160011132
ref: 1
CARBURETOR ASSY
€ 1,244.50
2
160011161
ref: 2
CARBURETOR,L.H,OUT
€ 327.50
3
160011162
ref: 3
CARBURETOR,L.H,INSIDE
€ 331.00
4
160011163
ref: 4
CARBURETOR,R.H,INSIDE
€ 327.50
5
160011164
ref: 5
CARBURETOR,R.H,OUT
€ 327.50
6
16046005
ref: 6
SCREW
€ 4.50
7
16040009
ref: 7
SPRING,F
€ 6.50
8
16039020
ref: 8
STEEL
WASHER,PLAIN
€ 3.50
8
410B0500
ref: 8
STEEL
WASHER-PLAIN-SMALL,5M
€ 0.50
9
16039019
ref: 9
NYLON
WASHER-PLAIN
€ 3.00
10
16041021
ref: 10
SHAFT,STARTER PLUNGER
€ 37.50
11
16046007
ref: 11
SCREW,PAN HEAD,5X7
€ 6.50
12
131681026
ref: 12
LEVER,STARTER PLUNGER
€ 13.50
13
220B0514
ref: 13
ACREW-PAN HEAD,5X14
€ 2.50
14
461F0500
ref: 14
WASHER-SPRING,5MM
€ 0.50
15
16055012
ref: 15
PLATE,SHAFT STOPPER
€ 7.00
16
16041017
ref: 16
SHAFT,CARB CONNECTION
€ 47.50
17
16040022
ref: 17
SPRING,CABLE PLY BKT
€ 6.00
18
16077017
ref: 18
BRACKET,THROTTLE CABL
€ 41.00
19
16067006
ref: 19
BOLT-HEX HEAD,5X14
€ 10.50
20
131681024
ref: 20
PULLY,THROTTLE CABLE
€ 39.00
21
16073016
ref: 21
RING
€ 8.00
22
482K3000
ref: 22
CIRCLIP-TYPE-E,3MM
€ 2.00
23
160211006
ref: 23
SCREW,THROTTLE STOP
€ 18.50
24
920281071
ref: 24
BUSHING,IDLING ADJUST
€ 4.50
25
16022017
ref: 25
SPRING, THROTTLE STOP
€ 4.50
26
110341185
ref: 26
BRACKET,THROTTLE CABL
€ 27.00
27
920811028
ref: 27
SPRING,THORTTLE PULLY
€ 41.00
28
160211011
ref: 28
SCREW,ADJUSTER
€ 7.00
29
16022010
ref: 29
SPRING,THROTTLE ADJST
€ 4.50
30
160651009
ref: 30
HOLDER,CARBURETOR MOT
€ 103.00
31
920051010
ref: 31
NIPPLE,FUEL HOSE
€ 19.50
32
92037056
ref: 32
USE FOR 92059-1044
CLAMP,FUEL TUBE
€ 3.00
32
920371184
ref: 32
USE FOR 92059-1089
CLAMP,HOSE
€ 1.00
33
16033029
ref: 33
SCREW,PAN HEAD,6X14
€ 3.00
33
221B0614
ref: 33
SCREW-CNTSNK HD,6X14
€ 2.50
34
920591044
ref: 34
HOSE,FEL,6.5X11.5X160
€ 21.00
34
920591123
ref: 34
TUBE,7.5X12.5X225
€ 17.00
35
16039042
ref: 35
CAP,RUBBER
€ 9.00
36
92071104
ref: 36
GROMMET,CARBURETOR
€ 16.00
37
92059141
ref: 37
HOSE, 6X11.5X16
€ 9.00
38
920591028
ref: 38
HOSE,AIR VENT,5X8X550
€ 13.00
39
92059147
ref: 39
HOSE,FUEL OVERFLOW
€ 17.50
40
92037178
ref: 40
CLAMP
€ 7.00
41
221B0510A
ref: 41
SCREW-CNTSNK HD,5X10
€ 2.50
42
920051009
ref: 42
FITTING,FUEL TUBE
€ 36.50
43
92059147
ref: 43
ACTUAL L=500M/M
HOSE,FUEL OVERFLOW
€ 17.50
44
920591028
ref: 44
ACTUAL L=530M/M
HOSE,AIR VENT,5X8X550
€ 13.00
45
920591023
ref: 45
5.3X10.5X175
HOSE,FUEL TAP DIAPHRA
€ 17.00
46
92037072
ref: 46
CLAMP,TUBE
€ 4.00
47
92037134
ref: 47
CLAMP,OVER FLOW PIPE
€ 7.50
