GENERATOR/STARTER MOTOR/STARTER
KZ1000A2 KZ1000 1978 CANADA

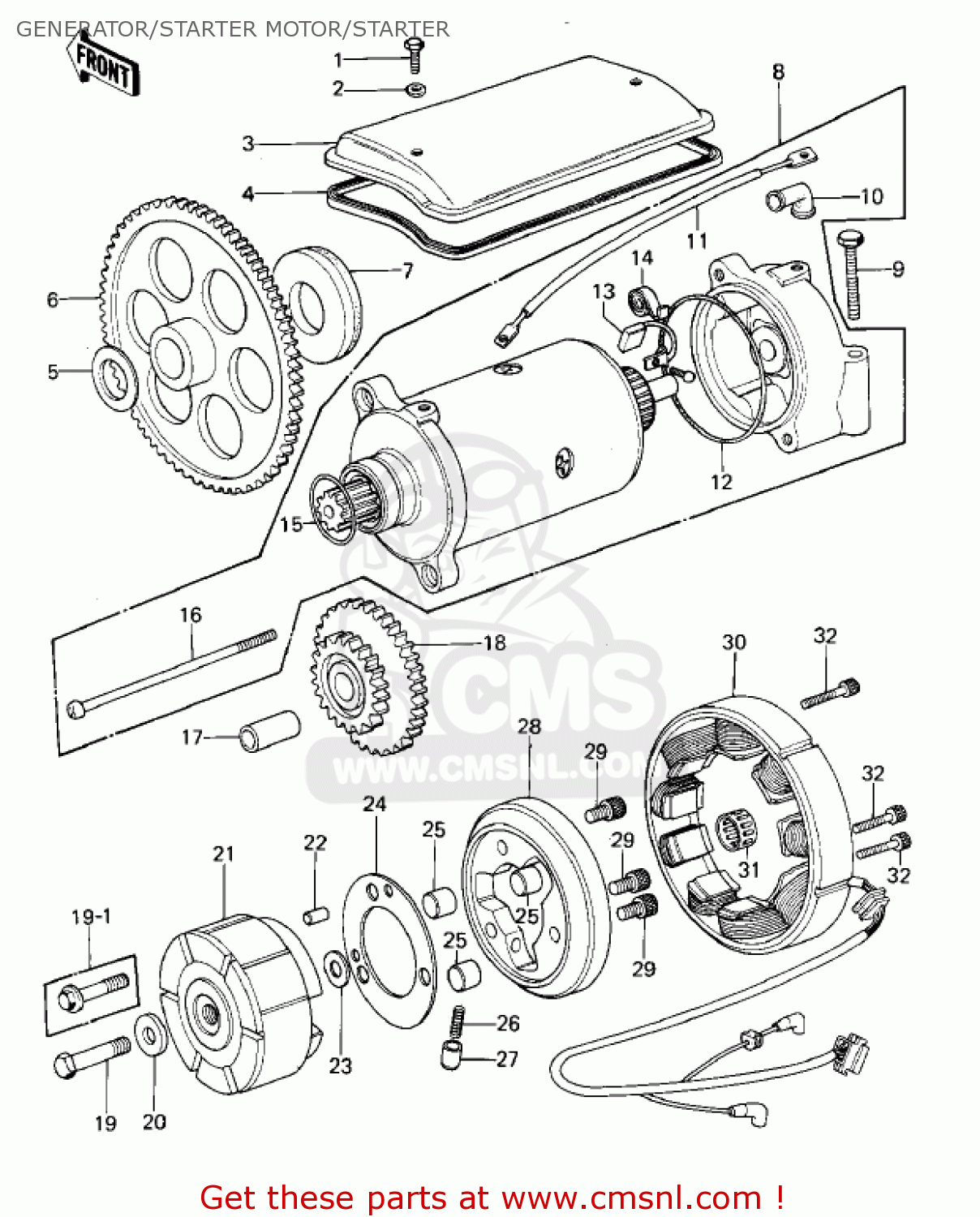

Generator/starter motor/starter diagram KZ1000A2 KZ1000 1978 CANADA
GENERATOR/STARTER MOTOR/STARTER KZ1000A2 KZ1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
110R0610
ref: 1
BOLT,6X10
€ 5.00
2
410D0600
ref: 2
WASHER-PLAIN-SMALL,6M
€ 0.50
3
21165001
ref: 3
COVER,STARTER MOTOR
€ 30.00
4
21166001
ref: 4
GASKET,STARTER COVER (NAS)
€ 23.50
5
92026091
ref: 5
SPACER,PLAIN,22MM
€ 26.50
6
21167003
ref: 6
7IT
GEAR,STARTING CLUTCH
€ 436.00
7
92075192
ref: 7
DAMPER RUBBER
€ 17.00
7
92075193
ref: 7
DAMPER
€ 28.50
7
92075194
ref: 7
DAMPER
€ 28.50
8
211631019
ref: 8
STARTER-ELECTRIC
€ 666.00
9
920011456
ref: 9
BOLT,6X55
€ 3.00
10
21017017
ref: 10
GROMMET-CORD
€ 6.50
11
26010055
ref: 11
WIRE, STARTER MOTOR
€ 22.00
12
21027003
ref: 12
RING-O,STARTER MOTOR
€ 6.00
13
21039003
ref: 13
BRUSH,CARBON
€ 23.50
14
21040003
ref: 14
SPRING-BRUSH
€ 4.50
15
21027004
ref: 15
ORING-STARTING MOTR
€ 6.50
16
21015005
ref: 16
SCREW-PAN HEAD,6X110
€ 5.50
17
13002007
ref: 17
PIN
€ 13.00
18
21167002
ref: 18
GEAR-STARTING MOTOR
€ 89.00
19
115G0840
ref: 19
KZ1000-A1
115G0840
19-1
920011201
ref: 19-1
KZ1000-A2
BOLT,ROTOR,10X40
€ 7.00
20
92022218
ref: 20
NOT USE FOR P/NO. 92
WASHER,PLAIN,8MM
€ 3.00
21
210071004
ref: 21
WHN EXH USE 21007-10
ROTOR
€ 849.00
21
210071004
ref: 21
KZ1000-A1
ROTOR
€ 849.00
21
210071005
ref: 21
KZ1000-A2~
ROTOR
€ 849.00
22
551A0622
ref: 22
PIN,DOWEL,6X22
€ 2.50
23
92026092
ref: 23
SPACER,22X35.5X1.0
€ 8.50
24
92026112
ref: 24
SPACER,45X79.5X0.5 (NAS)
€ 7.50
25
92122001
ref: 25
ROLLER,15X14.4
€ 7.50
26
92081110
ref: 26
SPRING
€ 3.00
27
92043087
ref: 27
PIN
€ 8.00
28
131931006
ref: 28
CLUTCH-ASSY-ONEWAY
€ 150.50
29
120P0816
ref: 29
BOLT-SOCKET
€ 2.50
30
21Q76023
ref: 30
UNAVAILABLE IN PRICE BOOK
€ 0.00
32
120S0635
ref: 32
BOLT-SOCKET
€ 1.00
