FENDERS ('77-'78 A1/A2/A2A)
KZ1000A2 KZ1000 1978 CANADA

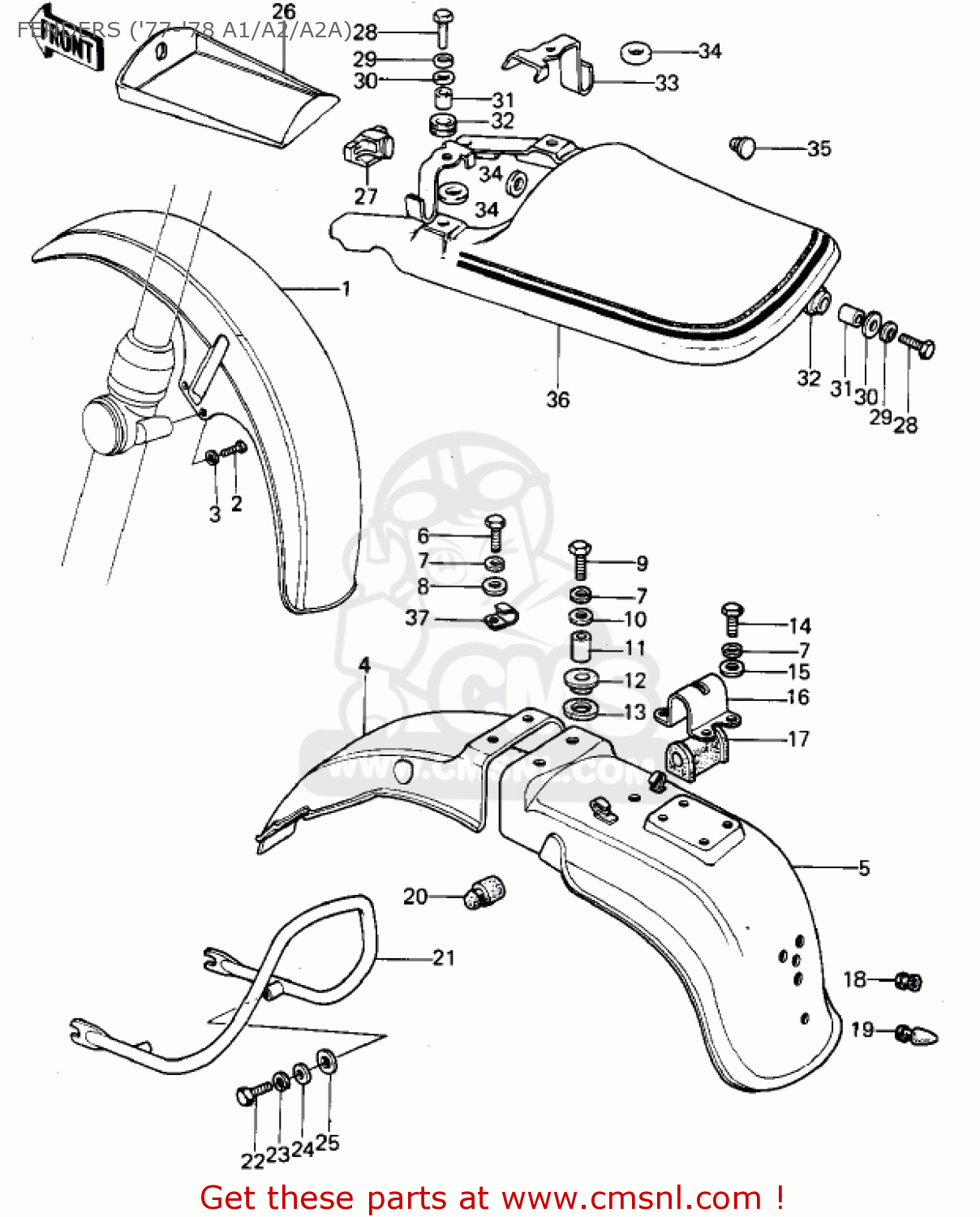

Fenders ('77-'78 a1/a2/a2a) diagram KZ1000A2 KZ1000 1978 CANADA
FENDERS ('77-'78 A1/A2/A2A) KZ1000A2 KZ1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
35003015
ref: 1
FENDER-ASSY-FRONT
€ 378.50
2
115G0816
ref: 2
BOLT-HEX,HEAD 8X16
€ 0.50
3
461F0800
ref: 3
WASHER-SPRING,8MM
€ 0.50
4
35022154
ref: 4
FRONT
FENDER, REAR
€ 28.50
5
35022072
ref: 5
REAR
FENDER-COMP-REAR
€ 301.50
6
112B0614
ref: 6
BOLT-UPSET 6X14
€ 2.50
7
461F0600
ref: 7
WASHER-SPRING,6MM
€ 0.50
8
92022024
ref: 8
WASHER,7X16X1.2
€ 2.50
9
112G0625
ref: 9
BOLT-UPSET,6X25
€ 4.00
10
92022228
ref: 10
WASHER-PLAIN,7MM
€ 2.50
11
92027241
ref: 11
COLLAR
€ 4.50
12
92075174
ref: 12
DAMPER,MALE
€ 3.00
13
92075175
ref: 13
DAMPER,FEMALE
€ 2.50
14
112G0616
ref: 14
BOLT UPSET,6X16
€ 1.00
15
411B0600
ref: 15
WASHER-PLAIN,6MM
€ 0.50
16
35026006
ref: 16
BRACKET-REAR FENDER
€ 2.00
17
92075132
ref: 17
DAMPER,RR FENDER
€ 8.50
18
92071019
ref: 18
GROMMET,10MM
€ 2.50
19
92075266
ref: 19
DAMPER
€ 3.50
20
92075135
ref: 20
DAMPER,RR FENDER
€ 3.50
21
35032022
ref: 21
STAY,FENDER,RR
€ 169.00
22
112B1022
ref: 22
BOLT,10X22
€ 3.00
23
461F1000
ref: 23
WASHER-SPRING,10MM
€ 0.50
24
411B1000
ref: 24
WASHER-PLAIN,10MM
€ 0.50
25
92022044
ref: 25
WASHER,10.5X26X2.3
€ 2.50
26
3209918
ref: 26
UNAVAILABLE IN PRICE BOOK
€ 0.00
27
92074024
ref: 27
PLUG,24X7
€ 12.50
28
112G0625
ref: 28
BOLT-UPSET,6X25
€ 4.00
29
461F0600
ref: 29
WASHER-SPRING,6MM
€ 0.50
30
92022228
ref: 30
WASHER-PLAIN,7MM
€ 2.50
31
92027241
ref: 31
COLLAR
€ 4.50
32
92075174
ref: 32
DAMPER,MALE
€ 3.00
33
32122010
ref: 33
BRACKET-HELMET HOLDER
€ 4.50
34
92075175
ref: 34
DAMPER,FEMALE
€ 2.50
35
92074022
ref: 35
PLUG,BACKREST HOLE,12
€ 2.50
36
530430134H
ref: 36
KZ1000-A1
COVER, REAR SEAT, D.W
€ 101.50
36
530430134J
ref: 36
COVER, REAR SEAT, D.S
€ 153.00
36
530430137T
ref: 36
COVER,REAR FENDER,L.
€ 165.00
36
530430137V
ref: 36
KZ1000-A2
COVER,REAR FENDER,L.
€ 198.00
36
5304355018G
ref: 36
REAR FENDER COVER,EBONY
€ 94.50
37
21126008
ref: 37
KZ1000-A2/A2A
CLAMP,WIRING HARNESS
€ 3.00
