FRONT FORK (KZ1000-A2/A2A)
KZ1000A2 KZ1000 1978 CANADA

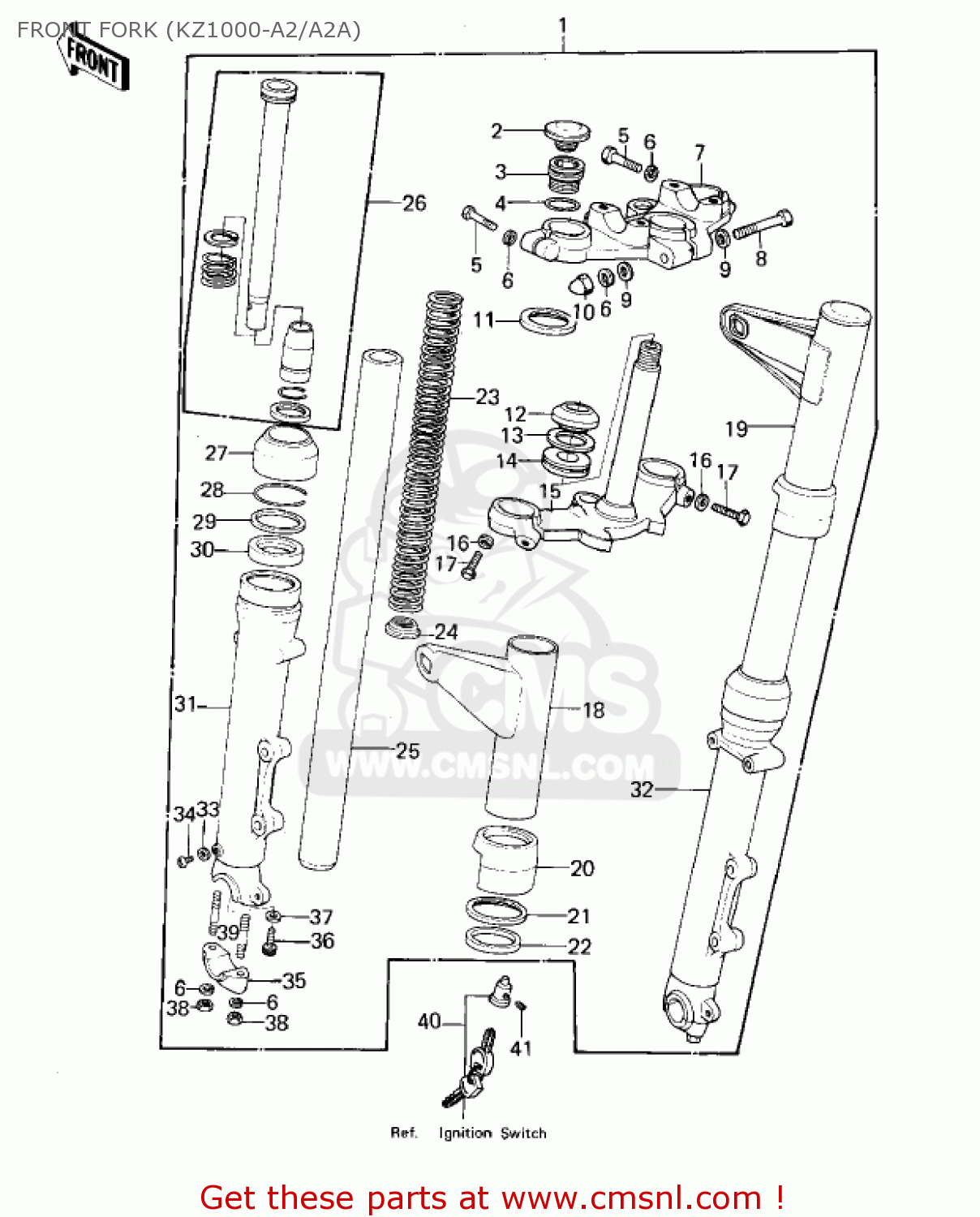

Front fork (kz1000-a2/a2a) diagram KZ1000A2 KZ1000 1978 CANADA
FRONT FORK (KZ1000-A2/A2A) KZ1000A2 KZ1000 1978 CANADA
×
prices are in EUR
ref
part #
description
quantity
1
440011007
ref: 1
FRONT FORK ASSY
€ 1,251.00
2
110121017
ref: 2
CAP,RUBBER
€ 7.00
3
440291003
ref: 3
SEAT-FORK SPRING
€ 34.00
4
920551009
ref: 4
RING-O,FORK TOP
€ 3.00
5
44041045
ref: 5
BOLT-HEX HEAD,8MM
€ 15.00
6
461F0800
ref: 6
WASHER-SPRING,8MM
€ 0.50
7
44039073
ref: 7
HEAD,STEERING
€ 132.50
8
44041042
ref: 8
BOLT-STEERING STEM HD
€ 3.00
9
410B0800
ref: 9
WASHER-PLAIN-SMALL,8M
€ 0.50
10
92020007
ref: 10
NUT,CAP,8MM
€ 3.50
11
44064005
ref: 11
PLATE,FORK COVER
€ 9.00
12
92047012
ref: 12
CONE-STRNG STM BRNG
€ 14.50
13
92022231
ref: 13
WASHER,PLAIN
€ 3.00
14
92056003
ref: 14
OIL SEAL,STEERING STM
€ 6.00
15
44037098
ref: 15
STEEM,STEERING
€ 208.00
16
461F1200
ref: 16
WASHER-SPRING,12MM
€ 0.50
17
92003064
ref: 17
BOLT-HEX HEAD,12X36
€ 15.00
18
44033072
ref: 18
COVER-FORK,LH
€ 124.00
19
44034072
ref: 19
COVER-FORK,RH
€ 135.50
20
44064025
ref: 20
GUIDE,FORK COVER
€ 20.50
21
44064008
ref: 21
WASHER-FORK COV GUID
€ 14.50
22
44045038
ref: 22
GASKET,FORK COVER (NAS)
€ 3.50
23
440261003
ref: 23
SPRING,FORK
€ 47.00
24
440281001
ref: 24
GUID,FORK SPRING
€ 5.50
25
440131003
ref: 25
PIPE-FORK INNER
€ 202.00
26
440221002
ref: 26
CYLINDER,FORK
€ 45.50
27
44010032
ref: 27
SEAL,FORK
€ 17.00
28
44044012
ref: 28
RING-SNAP
€ 17.50
29
44043044
ref: 29
WASHER,OIL SEAL FIT
€ 8.00
30
44009024
ref: 30
OIL SEAL
€ 16.00
31
440051031
ref: 31
TUBE,L.H FORK OUTER
€ 183.00
32
440061031
ref: 32
TUBE,L.H FORK OUTER
€ 196.00
33
44045002
ref: 33
2
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
34
220B0408
ref: 34
SCREW-PAN-CROS
€ 0.50
35
220B0408
ref: 35
SCREW-PAN-CROS
€ 0.50
36
44041040
ref: 36
BOLT-FORK CYLINDER
€ 4.50
37
44045057
ref: 37
GASKET (NAS)
€ 3.00
38
92017013
ref: 38
NUT,LOCK,8MM
€ 5.50
39
920041009
ref: 39
STUD, 8X35
€ 4.00
40
27016048
ref: 40
LOCK-ASSY,STEERING
€ 50.50
41
92014016A
ref: 41
SEAT LOCK SCREW
€ 12.00
