SUSPENSION

KX80-G2 1987 AL UR

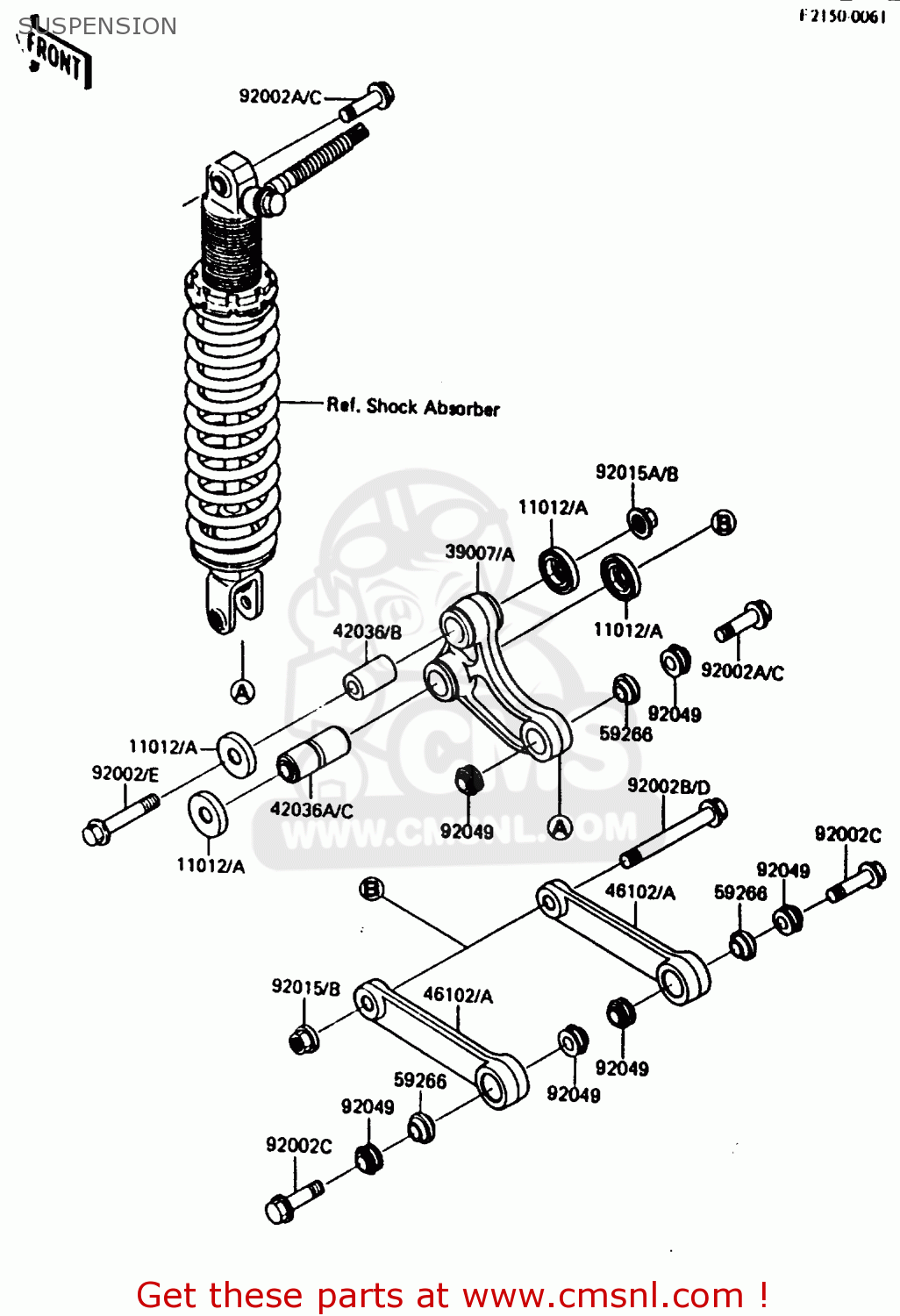

Suspension diagram KX80-G2 1987 AL UR

prices are in EUR

ref

part #

description

quantity

11012A

110121541
ref: 11012A

CAP,ARM

€ 9.50

39007A

390071117
ref: 39007A

ARM-SUSP,UNI TRAK

€ 160.50

42036B

420361191
ref: 42036B

SLEEVE,SUSPENSION ARM

€ 58.50

42036C

420361192
ref: 42036C

SLEEVE,SUSPENSION ARM

€ 74.00

46102A

461021195
ref: 46102A

ROD,SUSPENSION

€ 42.00

59266

592661061
ref: 59266

JOINT-BALL

€ 52.00

92002C

920021675
ref: 92002C

BOLT,10X40

€ 8.50

92002D

920021802
ref: 92002D

BOLT,FLANGED,12X94

€ 7.00

92002E

920021861
ref: 92002E

BOLT,FLANGED,12X67

€ 7.00

92015B

920151617
ref: 92015B

NUT,LOCK,12MM

€ 5.50

92049

920491233
ref: 92049

SEAL-OIL,XHM10217J-A

€ 12.00
