CRANKCASE
KX80-G2 1987 AL UR

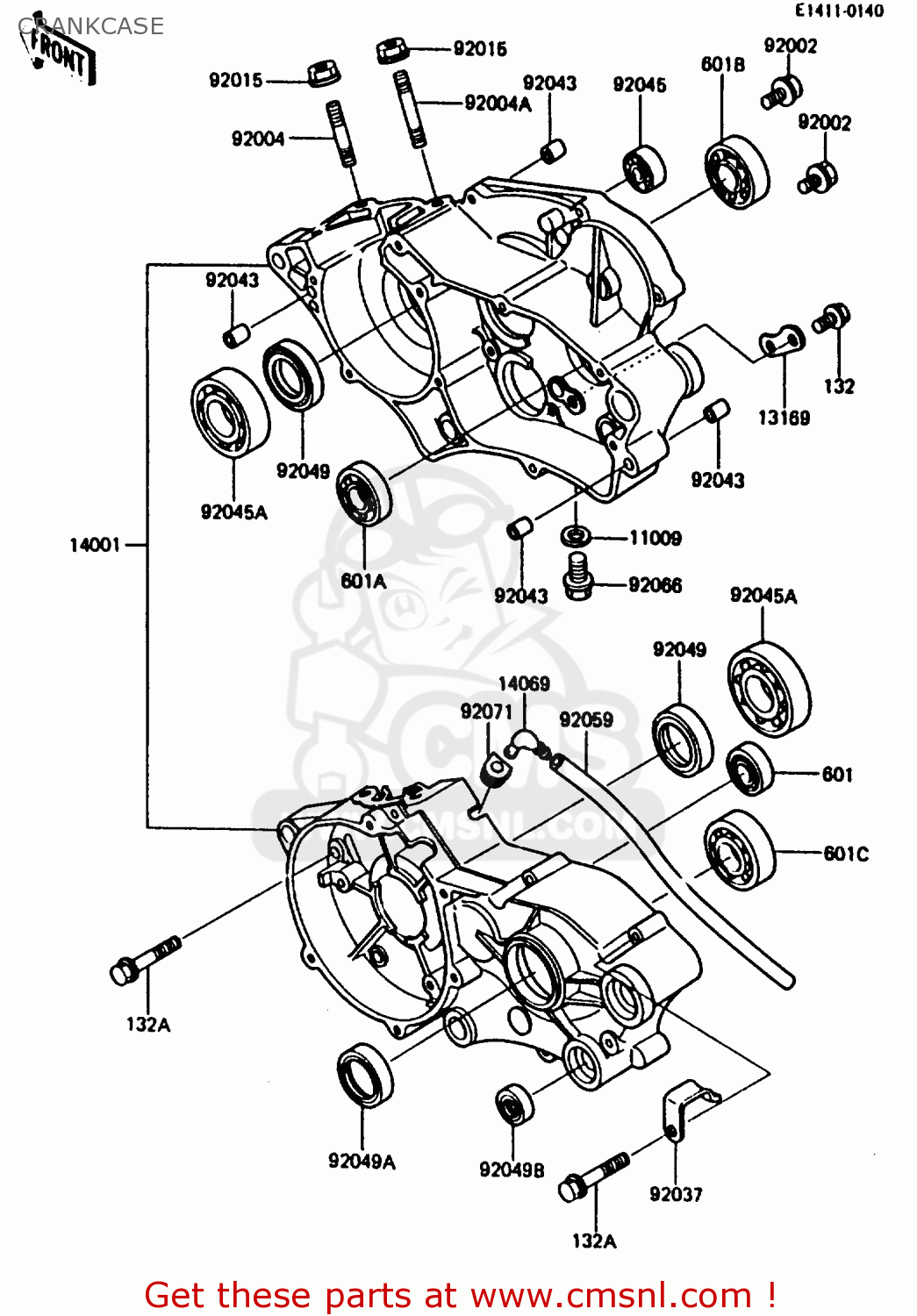

Crankcase diagram KX80-G2 1987 AL UR
CRANKCASE KX80-G2 1987 AL UR
×
prices are in EUR
ref
part #
description
quantity
11009
92065058
ref: 11009
GASKET, 10,5X16X1 (NAS)
€ 2.50
13169
13169012
ref: 13169
PLATE,CHANGE DRAM
€ 11.50
14001
140015200
ref: 14001
SET-CRANKCASE
€ 293.50
14069
14069002
ref: 14069
BREATHER
€ 17.50
92002
920021639
ref: 92002
BOLT,CLUTCH
€ 7.50
92004
920041008
ref: 92004
STUD, 8X25
€ 3.50
92004A
920041009
ref: 92004A
STUD, 8X35
€ 4.00
92015
920151143
ref: 92015
NUT,8MM
€ 0.50
92037
920371318
ref: 92037
CLAMP,HARNESS
€ 4.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451010
ref: 92045
BEARING,BALL 626
€ 11.00
92045A
920451059
ref: 92045A
BEARING-BALL,R-6304C3
€ 29.00
92049
920491188
ref: 92049
SEAL-OIL,SD20407GS
€ 12.00
92049A
92050013
ref: 92049A
OIL SEAL SC25376
€ 9.50
92049B
92051005A
ref: 92049B
OIL SEAL,TB13225.5
€ 5.50
92059
920591074
ref: 92059
TUBE,6X9X280
€ 9.00
92066
920661241
ref: 92066
PLUG
€ 4.00
92071
92071042
ref: 92071
GROMMET
€ 2.50
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0635
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
601
601A6001
ref: 601
BEARING-BALL
€ 9.00
601A
601A6002
ref: 601A
BEARING-BALL,#6002
€ 9.50
601B
601A6203
ref: 601B
BEARING-BALL,#6203
€ 10.50
601C
601B6206
ref: 601C
BEARING-BALL,#6206C3
€ 19.50
