FRAME FITTING

KX80-G2 1987 AL UR

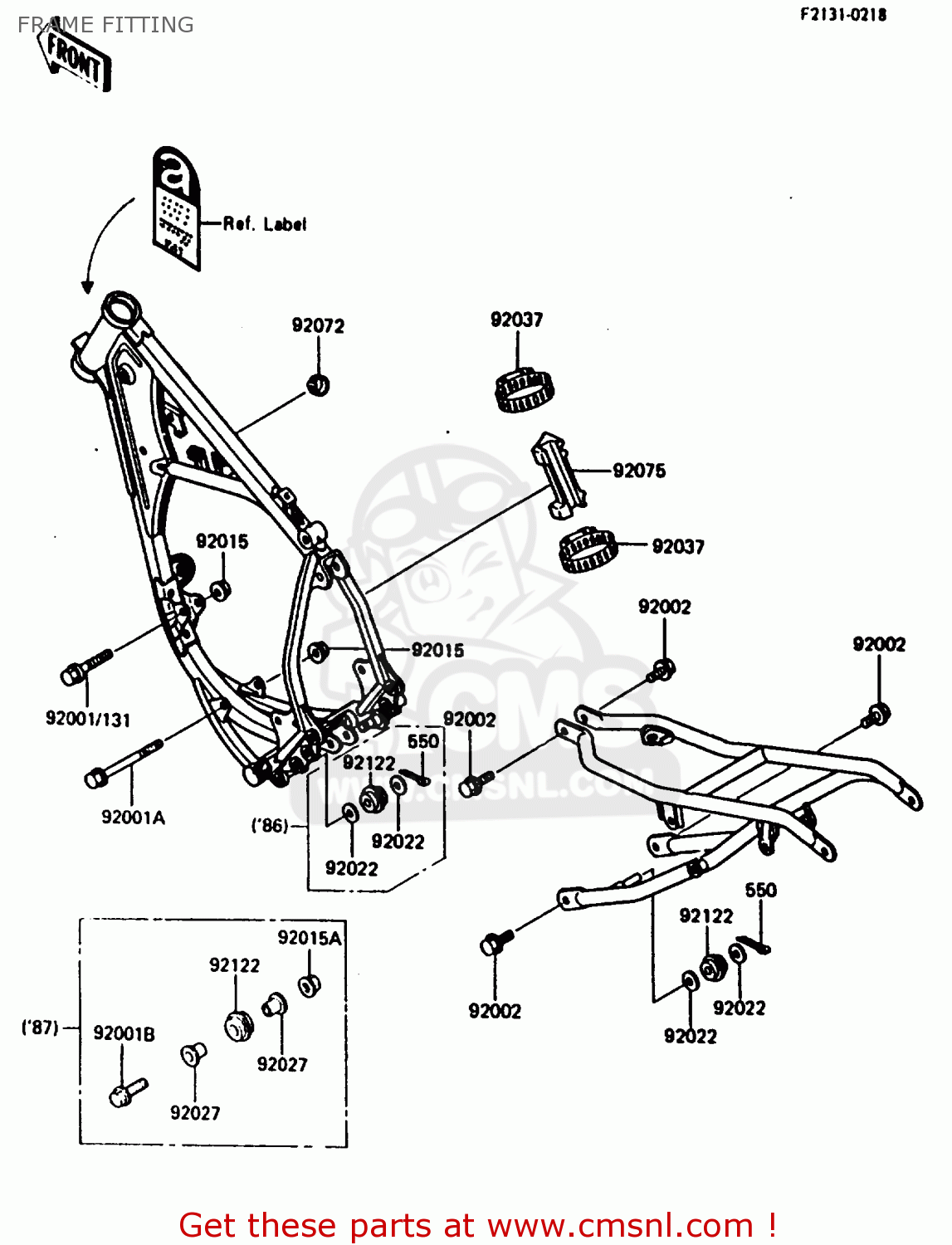

Frame fitting diagram KX80-G2 1987 AL UR

prices are in EUR

ref

part #

description

quantity

92001

920011006
ref: 92001

BOLT,HEX HEAD,8X63

€ 5.00

92001A

920011367
ref: 92001A

BOLT,ENGINE MOUNT

€ 4.50

92001B

92003228
ref: 92001B

BOLT

€ 5.50

92002

920011897
ref: 92002

BOLT,8X16

€ 3.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151193
ref: 92015A

NUT,FLANGED,6MM

€ 0.50

92022

92022239
ref: 92022

WASHER-PLAIN

€ 2.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92037

920371688
ref: 92037

CLAMP,RESERVOIR TANK

€ 12.50

92072

92072030
ref: 92072

BAND,SHORT

€ 3.00

92075

920751760
ref: 92075

DAMPER,RESERVOIR TANK

€ 12.50

92122

921221030
ref: 92122

ROLLER,CHAIN GUIDE

€ 22.50

550

550D2515
ref: 550

PIN COTTER,295X15

€ 0.50
