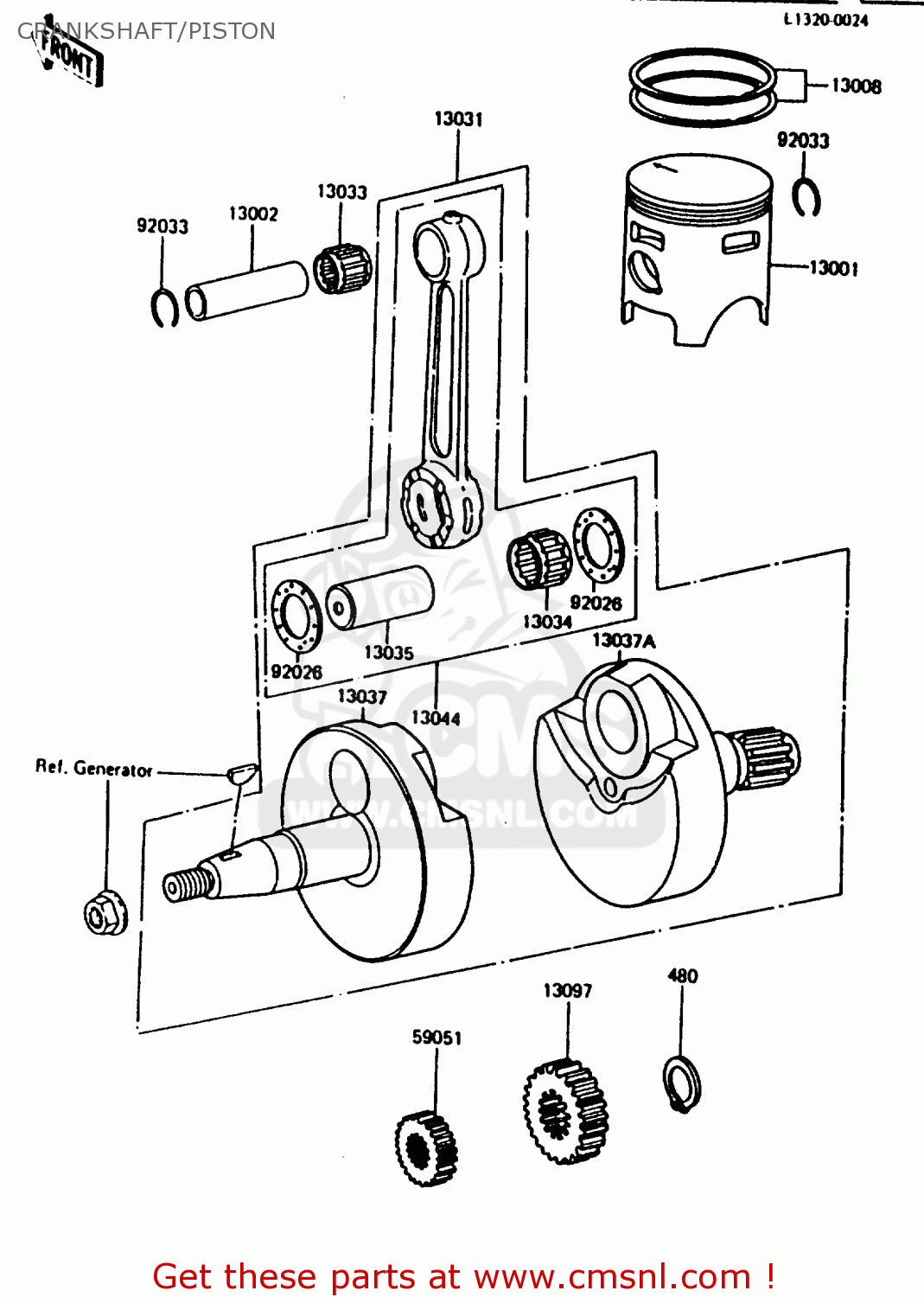

CRANKSHAFT/PISTON

ref

part #

description

quantity

13001

130011241
ref: 13001

PISTON-ENGINE

€ 42.00

13002

130021054
ref: 13002

PIN-PISTON

€ 8.50

13008

130085052
ref: 13008

RING-SET-PISTON

€ 35.50

13031

130311297
ref: 13031

CRANKSHAFT-COMP

€ 1,020.50

13033

130331003
ref: 13033

BEARING-NEEDLE,14R181

€ 21.00

13034

130341072
ref: 13034

BEARING-BIG END,H22X2

€ 35.00

13035

130351054
ref: 13035

PIN-CRANK

€ 23.50

13037

130371269
ref: 13037

CRANKSHAFT,LH

€ 87.00

13037A

130371270
ref: 13037A

CRANKSHAFT,RH

€ 98.00

13044

130445053
ref: 13044

SET-CONNECTING ROD

€ 82.50

13097

130971148
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 60.50

59051

590511144
ref: 59051

GEAR-SPUR

€ 189.50

92026

92026011
ref: 92026

SPACER,22.5X37X1.0

€ 6.50

92036

92036003
ref: 92036

CIRCLIP-PISTON PIN

€ 0.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

all assemblies
