CARBURETOR (KX80-G1)
KX80-G1 1986 AL UR

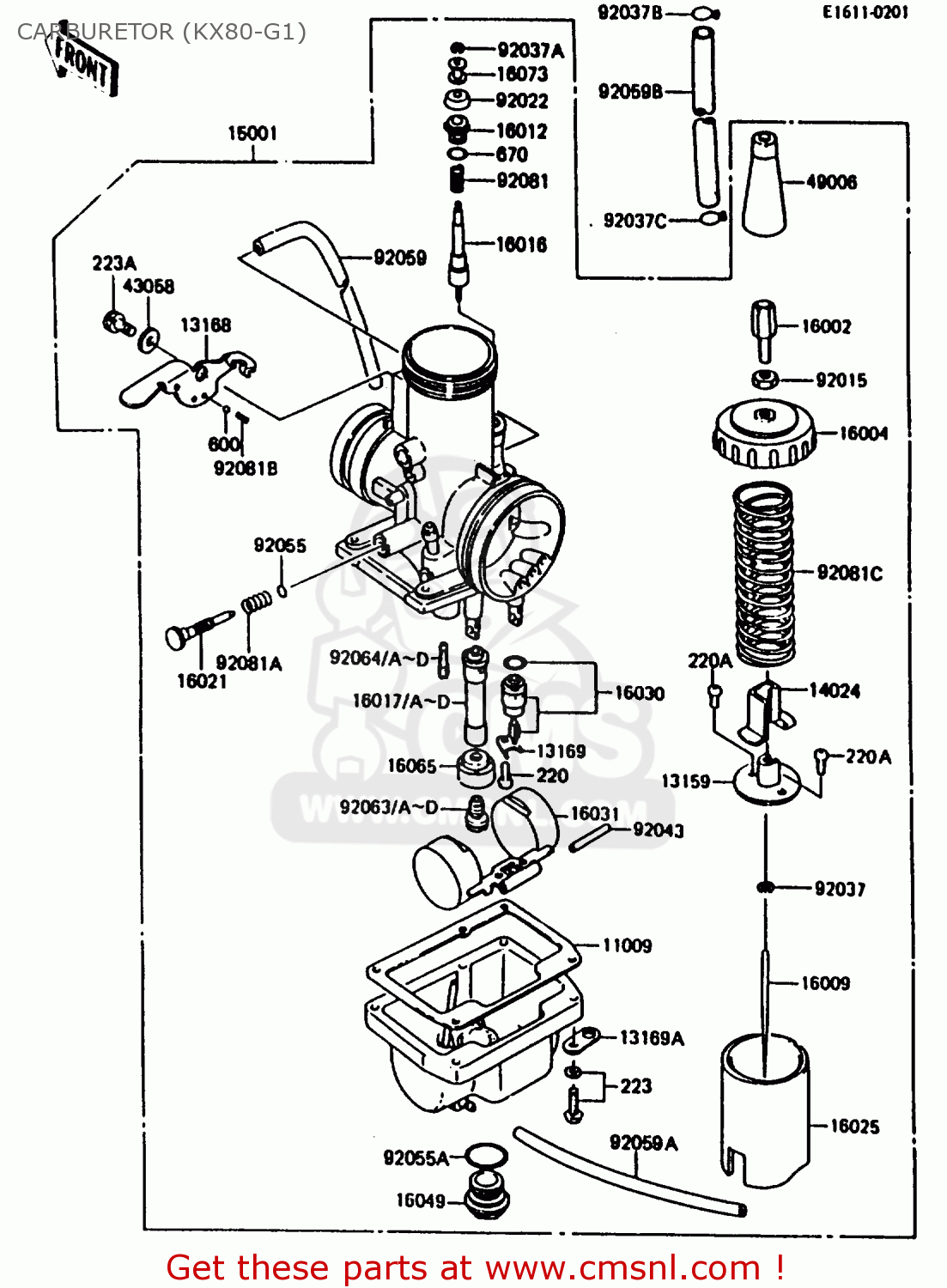

Carburetor (kx80-g1) diagram KX80-G1 1986 AL UR
CARBURETOR (KX80-G1) KX80-G1 1986 AL UR
×
prices are in EUR
ref
part #
description
quantity
11009
110091178
ref: 11009
GASKET,FLOAT CHAMBER
€ 7.00
13159
131591004
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13168
131681289
ref: 13168
LEVER,STARTER
€ 17.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
13169A
131691226
ref: 13169A
PLATE,TUBE CLAMP
€ 5.00
14024
140251494
ref: 14024
COVER,THROTTLE VALVE
€ 6.00
15001
150011201
ref: 15001
CARBURETOR-ASSY
€ 162.00
16002
16002017
ref: 16002
ADJUSTER-CABLE
€ 8.00
16004
16004025
ref: 16004
CAP,MIXING CHAMBER
€ 23.50
16009
160091287
ref: 16009
NEEDLE-JET,6DK2-3
€ 21.00
16012
160121057
ref: 16012
CAP-STARTER PLUNGER
€ 10.00
16016
16016021
ref: 16016
PLUNGER,STARTER
€ 26.00
16017
160171223
ref: 16017
JET-NEEDLE,P-2
€ 18.50
16017A
160171224
ref: 16017A
(OPTION)
JET-NEEDLE,P-6
€ 25.00
16017B
160171225
ref: 16017B
(OPTION)
JET-NEEDLE,P-4
€ 26.50
16017C
160171226
ref: 16017C
(OPTION)
JET-NEEDLE,P-0
€ 25.00
16017D
160171227
ref: 16017D
(OPTION)
JET-NEEDLE,O-8
€ 25.00
16021
160211042
ref: 16021
SCREW-THROTTLE STOP
€ 11.50
16025
160251133
ref: 16025
VALVE-THROTTLE,CA 2.0
€ 81.50
16030
160301013
ref: 16030
VALVE-FLOAT,#2.5
€ 33.00
16031
160311007
ref: 16031
FLOAT
€ 35.00
16049
160491003
ref: 16049
COVER,MAIN JET
€ 8.00
16065
160651033
ref: 16065
HOLDER,MAIN JET RING
€ 10.50
16073
16073014
ref: 16073
COLLAR,STARTER PLUNGE
€ 5.50
43058
430581061
ref: 43058
RING
€ 2.00
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
€ 4.50
92037
16008010
ref: 92037
CLAMP,E-TYPE
€ 5.00
92037A
16076003
ref: 92037A
CLAMP
€ 4.50
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371712
ref: 92037C
CLAMP
€ 3.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92055
92055044
ref: 92055
'O' RING
€ 7.00
92055A
920551076
ref: 92055A
RING-O
€ 6.00
92059
920591018
ref: 92059
TUBE,3X5X300
€ 6.00
92059A
920591432
ref: 92059A
TUBE,3X5X250
€ 5.50
92059B
920591665
ref: 92059B
TUBE,5.3X10.5X200
€ 9.50
92063
92063020
ref: 92063
(OPTION)
JET-MAIN,#180
€ 9.50
92063B
92063022
ref: 92063B
JET-MAIN,#200
€ 9.50
92063C
92063023
ref: 92063C
(OPTION)
JET-MAIN,#210
€ 9.50
92063D
92063024
ref: 92063D
(OPTION)
JET-MAIN,#220
€ 11.00
92064
92064022
ref: 92064
PILOT JET #30 ISO
€ 11.50
92064A
92064023
ref: 92064A
(OPTION)
JET-PILOT,#35
€ 13.00
92064B
92064024
ref: 92064B
(OPTION)
JET-PILOT,#40
€ 14.00
92064C
92064032
ref: 92064C
(OPTION)
PILOT JET #25
€ 12.50
92064D
920641033
ref: 92064D
(OPTION)
JET-PILOT,#27.5
€ 11.50
92081
16013008
ref: 92081
SPRING-STARTER PLUNG
€ 4.50
92081A
920811152
ref: 92081A
SPRING,THROTTLE ADJST
€ 4.00
92081B
920811260
ref: 92081B
SPRING,FAST IDLE SHFT
€ 3.50
92081C
920811724
ref: 92081C
SPRING,THROTTLE VALVE
€ 8.00
220
220B0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0308
ref: 220A
SCREW-PAN-CROS
€ 0.50
223
223B0416
ref: 223
SCREW-PAN-WS-CROS
€ 0.50
223A
223B0612
ref: 223A
SCREW-PAN-WS-CROS
€ 0.50
600
600A0400
ref: 600
BALL-STEEL,1/8
€ 2.00
670
670B1509
ref: 670
O RING,9MM
€ 1.00
