BRAKE PEDAL
KX80-G1 1986 AL UR

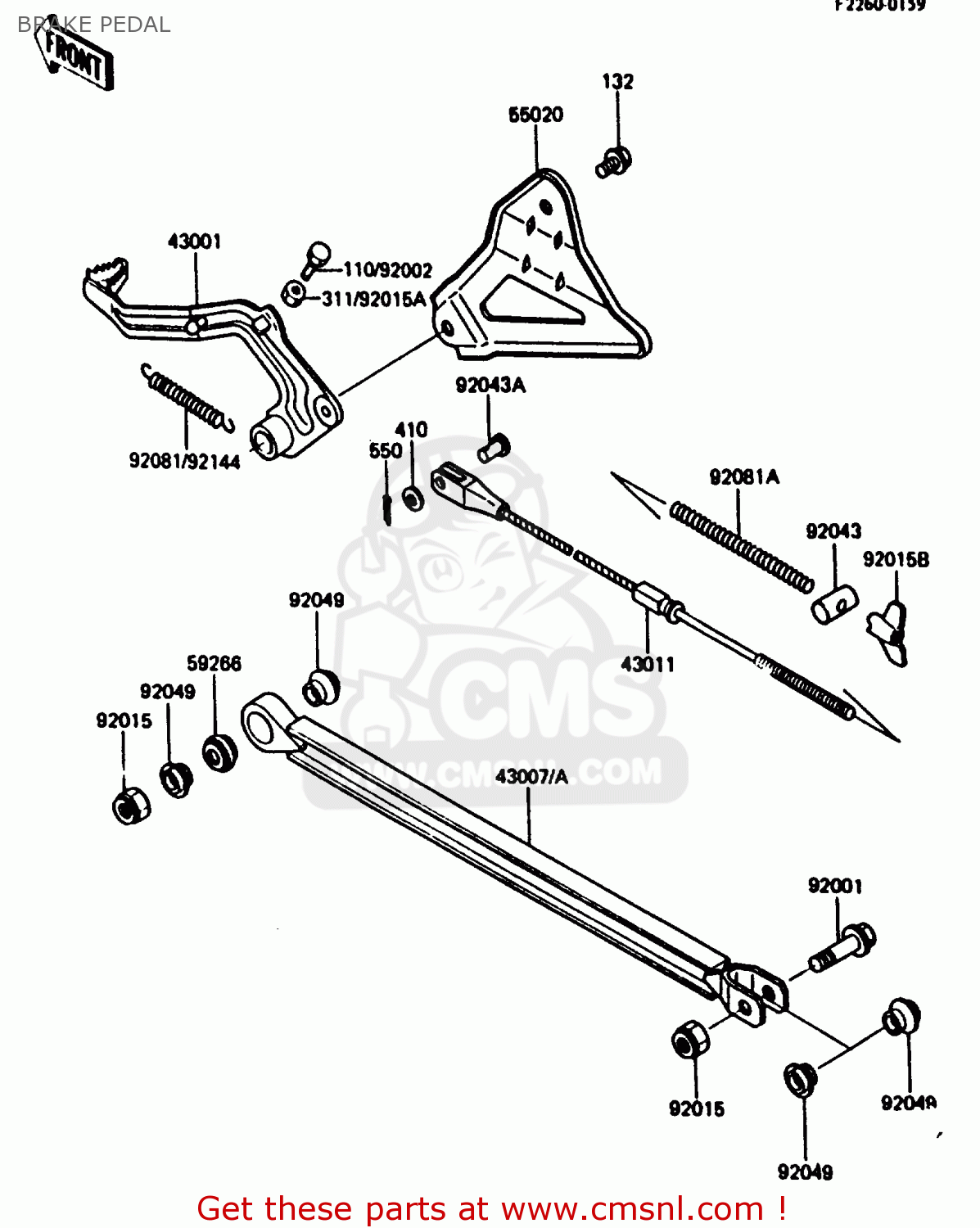

Brake pedal diagram KX80-G1 1986 AL UR
BRAKE PEDAL KX80-G1 1986 AL UR
×
prices are in EUR
ref
part #
description
quantity
43001
430011189
ref: 43001
LEVER-BRAKE,PEDAL
€ 32.50
43007
430071118
ref: 43007
ROD-TORQUE
€ 57.50
43011
430111123
ref: 43011
ROD-BRAKE
€ 15.50
55020
550201200
ref: 55020
GUARD,BRAKE PEDAL
€ 7.50
59266
592661013
ref: 59266
JOINT-BALL,BRAKE PANE
€ 33.00
92001
920011738
ref: 92001
BOLT
€ 2.00
92015
920151134
ref: 92015
NUT,8MM
€ 3.50
92015B
920154004
ref: 92015B
NUT,BRAKE ADJUSTING
€ 4.50
92043
92043039
ref: 92043
PIN,BRAKE ROD
€ 4.50
92043A
92043064
ref: 92043A
PIN-BRAKE ROD FITTING
€ 4.50
92049
920491100
ref: 92049
SEAL-OIL,TORQUE ROD
€ 6.00
92081
920811475
ref: 92081
SPRING,BRAKE PEDAL,RE
€ 4.50
92081A
920811688
ref: 92081A
SPRING,BRAKE ROD
€ 3.00
110
110B0618
ref: 110
BOLT-HEX HEAD,6X18
€ 0.50
132
132G0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
311
311B0600
ref: 311
NUT,6MM
€ 0.50
410
410D0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
