MUFFLER(S)

KX60-B15 1999 EUROPE AS

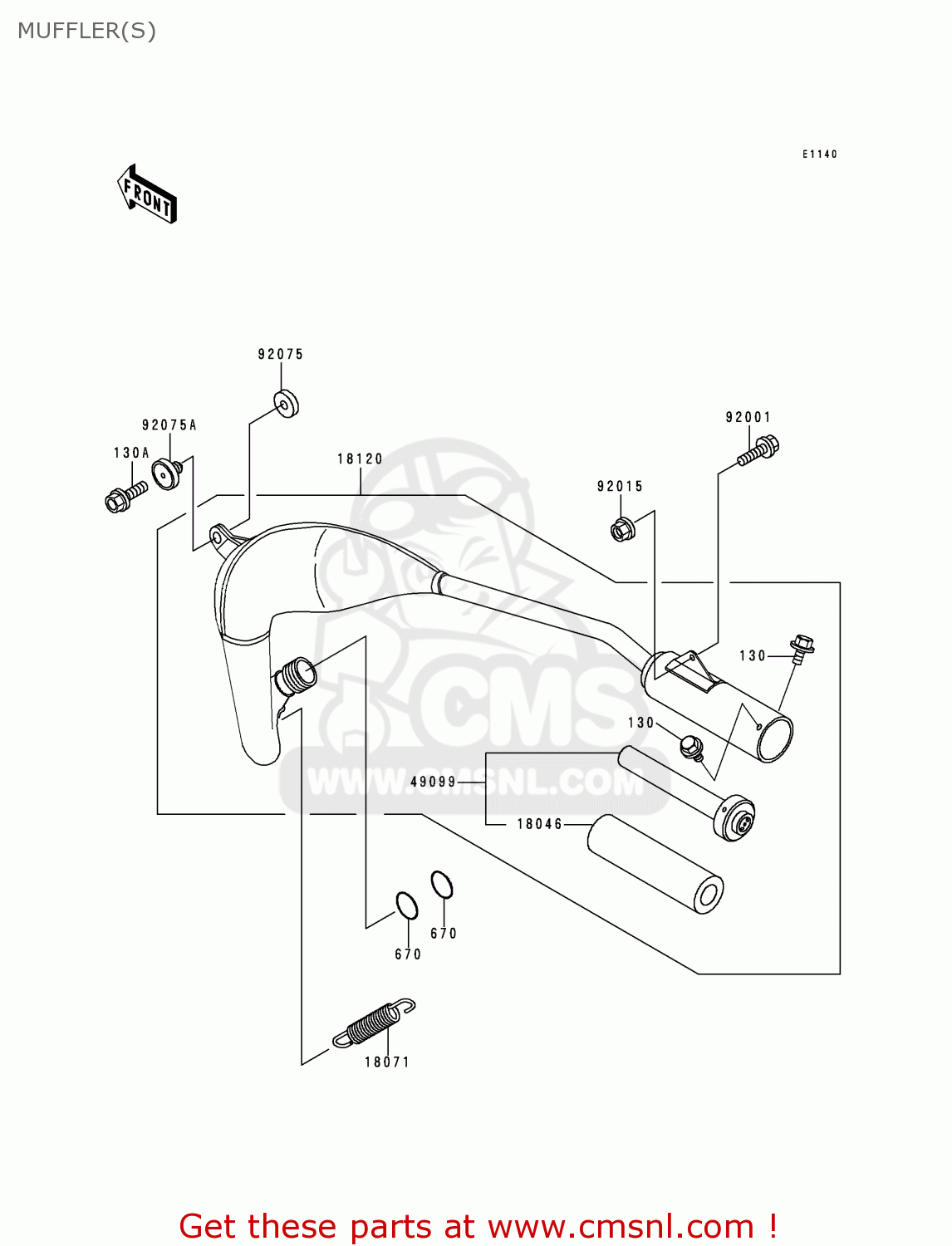

Muffler(s) diagram KX60-B15 1999 EUROPE AS

prices are in EUR

ref

part #

description

quantity

130

130G0508
ref: 130

BOLT-FLANGED

€ 0.50

130A

130G0625
ref: 130A

BOLT,FLANGED,6X25

€ 0.50

670

670E3032
ref: 670

O RING,32MM

€ 9.00

18046

180461094
ref: 18046

WOOL,BAFFLE PIPE

€ 34.00

18071

18071003
ref: 18071

SPRING,MUFFLER CONNEC

€ 7.50

18120

181201075
ref: 18120

CHAMBER-EXHAUST

€ 248.50

49099

490991726
ref: 49099

BAFFLE-PIPE MUFFLER

€ 70.50

92001

920011517
ref: 92001

BOLT,W/WASHER,6X12

€ 3.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92075

920751571
ref: 92075

DAMPER,9.3X28X7

€ 4.00

92075A

920751572
ref: 92075A

DAMPER,MUFFLER

€ 14.50
