FRONT FORK
KX60-B15 1999 EUROPE AS

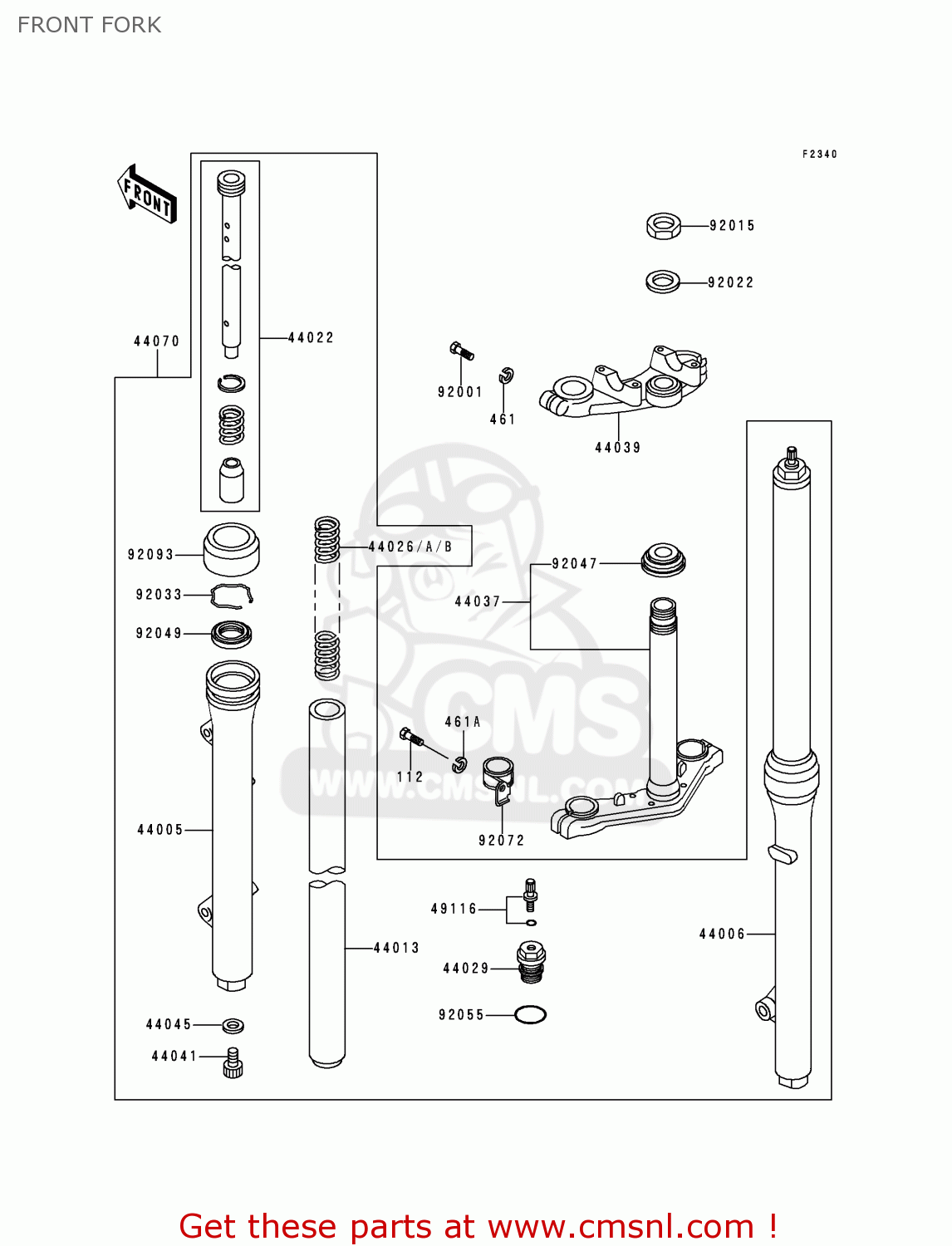

Front fork diagram KX60-B15 1999 EUROPE AS
FRONT FORK KX60-B15 1999 EUROPE AS
×
prices are in EUR
ref
part #
description
quantity
112
112B1035
ref: 112
BOLT-UPSET (Canada)
€ 3.00
461
461F0800
ref: 461
WASHER-SPRING,8MM
€ 0.50
461A
461F1000
ref: 461A
WASHER-SPRING,10MM
€ 0.50
44005
440051101
ref: 44005
PIPE-LEFT FORK OUTER
€ 189.00
44006
440061101
ref: 44006
PIPE-RIGHT FORK OUTER
€ 198.50
44013
440131098
ref: 44013
PIPE-FORK INNER
€ 103.50
44022
440221085
ref: 44022
CYLINDER-FORK
€ 63.00
44026
440261156
ref: 44026
SPRING-FRONT FORK,STD
€ 35.00
44026A
440261174
ref: 44026A
SPRING-FRONT FORK,LIG
€ 35.00
44026B
440261175
ref: 44026B
SPRING-FRONT FORK,HEA
€ 35.00
44029
440291101
ref: 44029
SEAT-FORK SPRING
€ 16.00
44037
440371227
ref: 44037
HOLDER-FORK UNDER
€ 196.50
44039
440391167
ref: 44039
HOLDER-FORK UPPER
€ 199.00
44041
44041078
ref: 44041
BOLT, FORK CYLINDER
€ 6.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
€ 4.00
44070
440705007
ref: 44070
DAMPER-ASSY,FORK
€ 446.00
49116
491161054
ref: 49116
VALVE-ASSY,AIR
€ 19.50
92001
920011643
ref: 92001
BOLT,8X35
€ 3.00
92015
920151224
ref: 92015
NUT,FORK TOP
€ 11.50
92022
920221385
ref: 92022
WASHER,FORK TOP
€ 5.00
92033
920331062
ref: 92033
RING-SNAP
€ 3.50
92047
92047013
ref: 92047
CONE,STRG STM
€ 12.50
92049
920491069
ref: 92049
OIL SEAL
€ 13.00
92055
920551142
ref: 92055
RING-O,FORK SPRING SE
€ 3.00
92072
920721089
ref: 92072
BAND,CABLE
€ 23.50
92093
920931054
ref: 92093
DUST SHIELD
€ 11.50
