FRAME FITTINGS

KX60-B15 1999 EUROPE AS

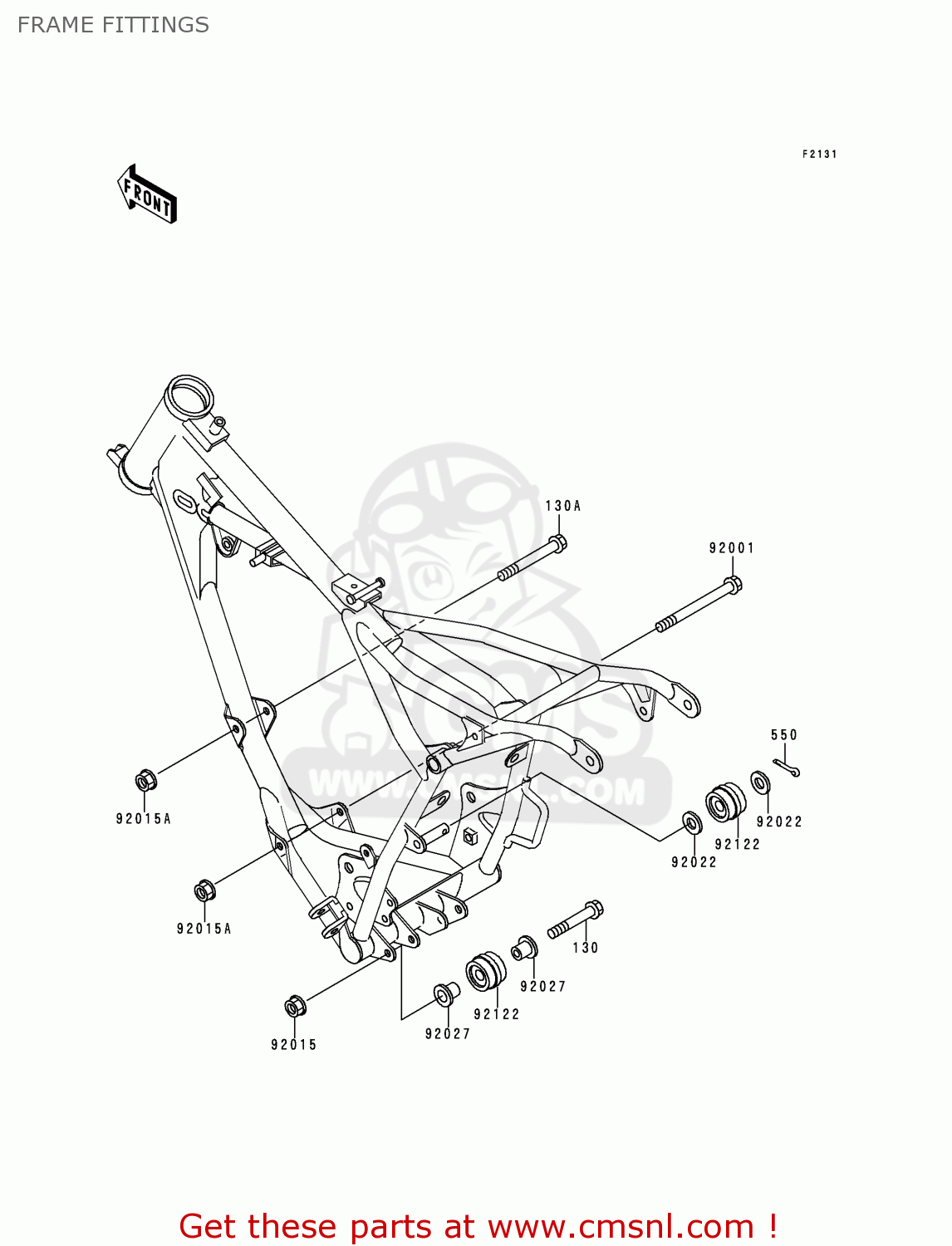

Frame fittings diagram KX60-B15 1999 EUROPE AS

FRAME FITTINGS KX60-B15 1999 EUROPE AS

FRAME FITTINGS KX60-B15 1999 EUROPE AS

prices are in EUR

ref

part #

description

quantity

130

130G0640
ref: 130

BOLT,FLANGED,6X40

€ 0.50

130A

130G0860
ref: 130A

BOLT-FLANGED,8X60

€ 1.00

550

550D2518
ref: 550

PIN,COTTER,2.5X18

€ 0.50

92001

920011367
ref: 92001

BOLT,ENGINE MOUNT

€ 4.50

92015

920151078
ref: 92015

NUT,6M/M

€ 1.50

92015A

920151143
ref: 92015A

NUT,8MM

€ 0.50

92022

92022239
ref: 92022

WASHER-PLAIN

€ 2.50

92027

920271183
ref: 92027

COLLAR,6.5X10X14.1

€ 3.50

92122

921221030
ref: 92122

ROLLER,CHAIN GUIDE

€ 22.50
