REAR HUB
KX500-E1 1989 USA CANADA

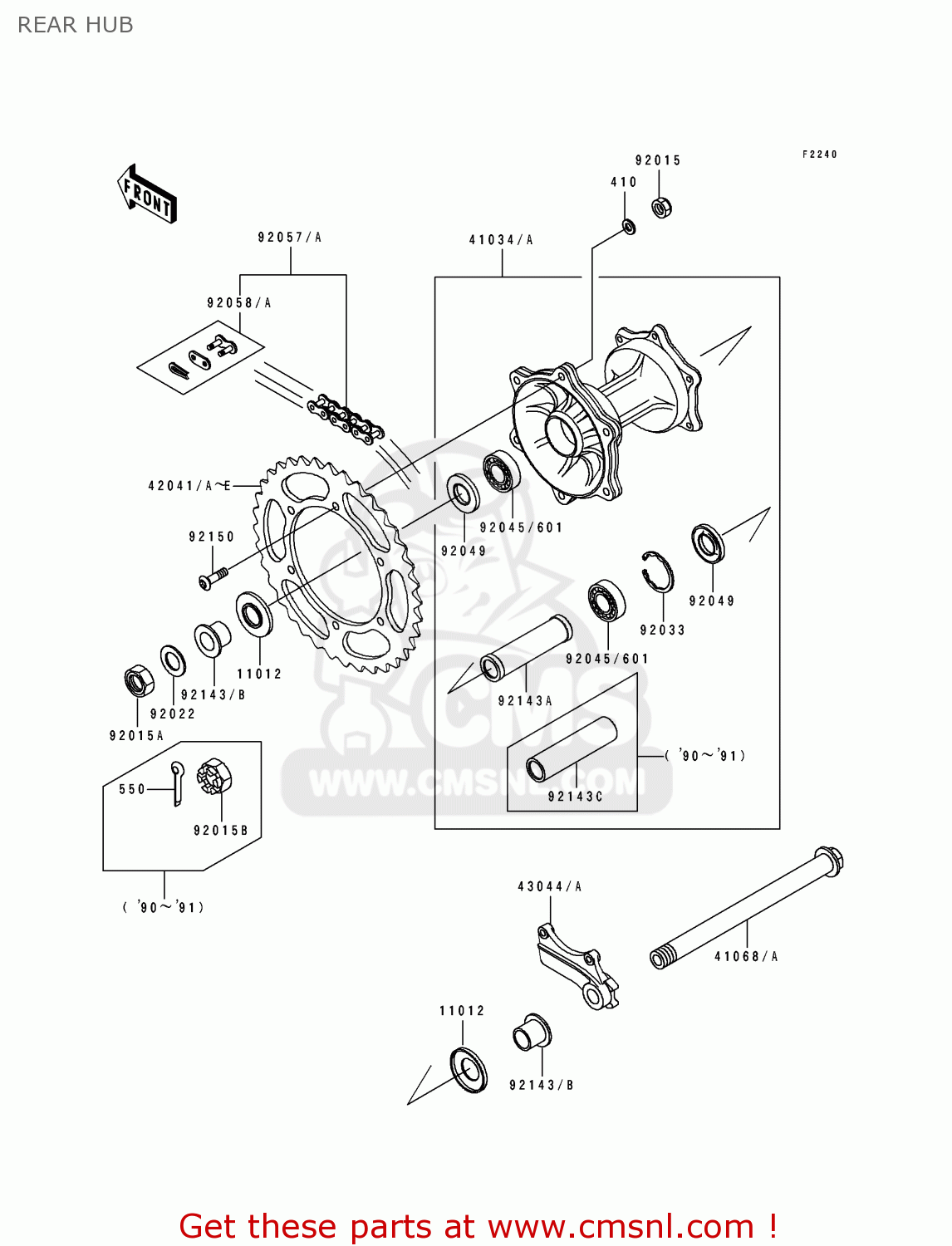

Rear hub diagram KX500-E1 1989 USA CANADA
REAR HUB KX500-E1 1989 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11012
110121581
ref: 11012
CAP,AXLE
€ 4.00
41034
410341184
ref: 41034
DRUM-ASSY,REAR BRAKE
€ 432.00
41068
410681277
ref: 41068
AXLE,RR
€ 55.00
42041
420411154
ref: 42041
SPROCKET-HUB,45T
€ 84.00
42041A
420411256
ref: 42041A
SPROCKET-HUB,49T,AL
€ 75.00
42041B
420411257
ref: 42041B
SPROCKET-HUB,48T,AL
€ 87.50
42041C
420411258
ref: 42041C
SPROCKET-HUB,47T,AL
€ 75.00
42041D
420411259
ref: 42041D
SPROCKET-HUB,46T,AL
€ 105.00
42041E
420411274
ref: 42041E
SPROCKET-HUB
€ 38.50
43044
430441082
ref: 43044
HOLDER-COMP-CALIPER
€ 107.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151770
ref: 92015A
NUT,LOCK,20MM
€ 19.00
92022
920221994
ref: 92022
WASHER,20.1X34X2.0
€ 3.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571202
ref: 92057
CHAIN,DRIVE,DID520DS5
€ 57.50
92058
920581013
ref: 92058
JOINT-CHAIN,DRIVE
€ 6.50
92143
921431259
ref: 92143
COLLAR,RR AXLE,L=22
€ 26.00
92143A
921431260
ref: 92143A
COLLAR,RR BRAKE DRUM,
€ 26.50
92150
921501196
ref: 92150
BOLT,SOCKET,8X28
€ 5.50
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
€ 0.50
601
601B6004UG
ref: 601
BEARING-BALL,#6004U
€ 27.50
