FRONT FORK(KX500-E1)
KX500-E1 1989 USA CANADA

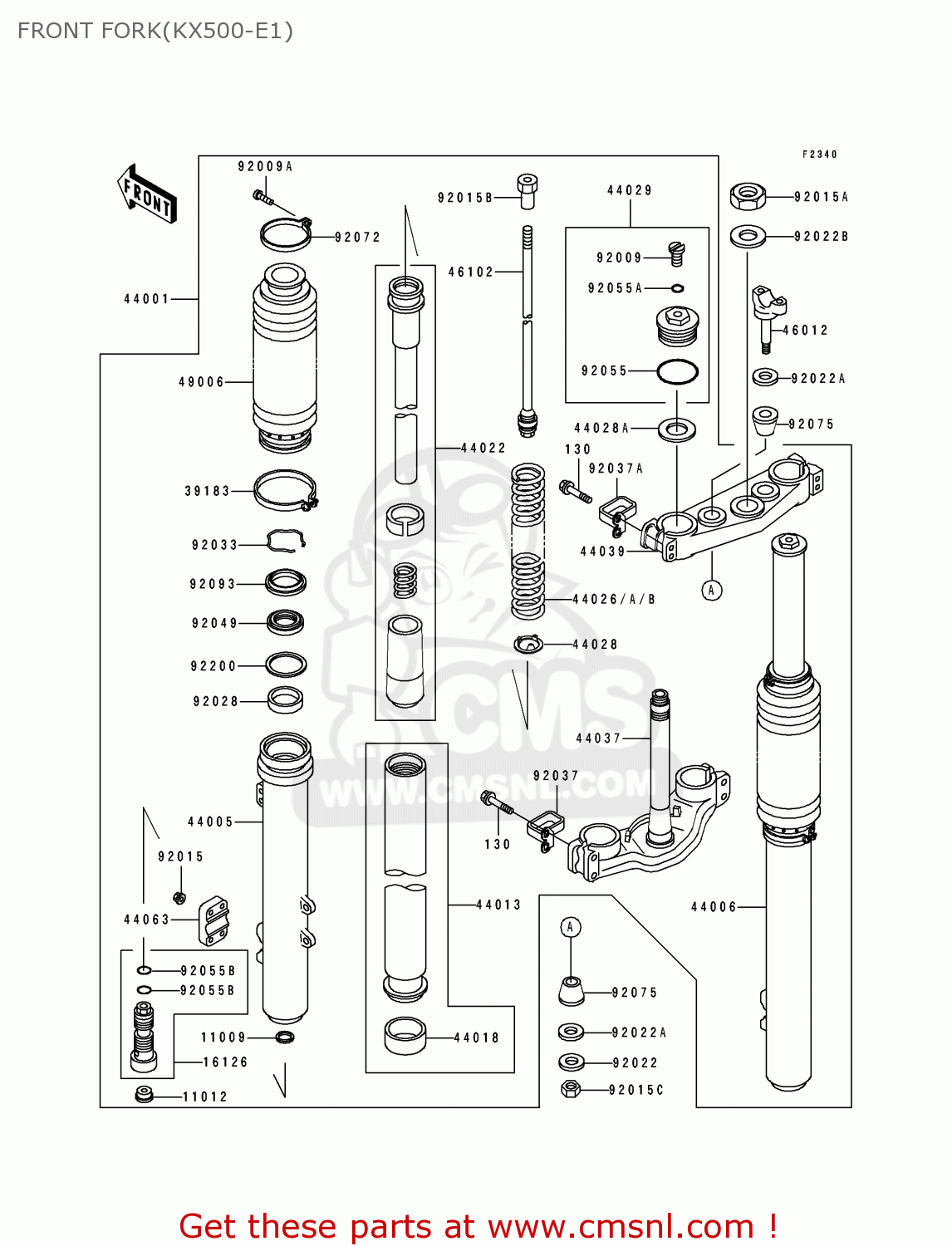

Front fork(kx500-e1) diagram KX500-E1 1989 USA CANADA
FRONT FORK(KX500-E1) KX500-E1 1989 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091791
ref: 11009
GASKET (NAS)
€ 2.50
11012
110121381
ref: 11012
CAP,FORK CYLINDER
€ 3.50
16126
161261221
ref: 16126
VALVE
€ 78.00
39183
391831056
ref: 39183
BOOT BAND ASSEMBLY
€ 6.00
44001
440011730
ref: 44001
FRONT FORK
€ 1,368.50
44005
440051289
ref: 44005
FORK OUTER PIPE,LH
€ 295.00
44006
440061286
ref: 44006
FORK OUTER PIPE,RH
€ 228.50
44013
440131290
ref: 44013
FORK INNER PIPE
€ 280.50
44018
440181055
ref: 44018
INNER PIPE FORK PISTON
€ 17.50
44022
440221237
ref: 44022
FORK CYLINDER
€ 134.00
44026
440261424
ref: 44026
FRONT FORK SPRING,K=0
€ 44.00
44026A
440261425
ref: 44026A
FRONT FORK SPRING,K=0
€ 43.50
44026B
440261427
ref: 44026B
FRONT FORK SPRING,K=0
€ 58.50
44028
440281066
ref: 44028
FORK SPRING,GUIDE
€ 6.50
44028A
440281067
ref: 44028A
FORK SPRING,GUIDE
€ 5.00
44029
440291138
ref: 44029
FORK SPRING,SEAT
€ 52.00
44037
440371257
ref: 44037
HOLDER-FORK UNDER
€ 314.50
44039
440391192
ref: 44039
FORK HOLDER,UPPER
€ 136.50
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
€ 41.50
46012
460121192
ref: 46012
HOLDER-HANDLE,LWR
€ 25.00
46102
461021271
ref: 46102
FORK ROD
€ 113.50
49006
490061256
ref: 49006
FORK BOOT
€ 45.50
92009
920091568
ref: 92009
SCREW
€ 4.50
92009A
920091573
ref: 92009A
SCREW,3.5X10
€ 2.50
92015
920151078
ref: 92015
NUT,6M/M
€ 1.50
92015A
920151653
ref: 92015A
NUT,STEERING STEM,22M
€ 11.50
92015B
920151776
ref: 92015B
NUT
€ 10.50
92015C
92019021
ref: 92015C
NUT,LOCK,10M/M
€ 2.00
92022
920221088
ref: 92022
WASHER,10.2X28X2
€ 3.00
92022A
920221737
ref: 92022A
WASHER
€ 3.50
92022B
920221873
ref: 92022B
WASHER
€ 5.00
92028
920281570
ref: 92028
BUSHING
€ 12.50
92033
920331264
ref: 92033
RING-SNAP
€ 4.00
92037
920371627
ref: 92037
CLAMP
€ 19.50
92037A
920371628
ref: 92037A
CLAMP
€ 12.50
92049
920491341
ref: 92049
OIL SEAL
€ 10.00
92055
920551140
ref: 92055
RING-O,TUBE ASSY
€ 0.50
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92055B
920551462
ref: 92055B
RING-O
€ 2.00
92072
920721247
ref: 92072
BAND
€ 6.00
92075
920751776
ref: 92075
DAMPER
€ 5.00
92093
920931281
ref: 92093
SEAL
€ 10.00
92200
922001006
ref: 92200
WASHER
€ 8.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
€ 1.00
