ENGINE COVER
KX500-B1 1985 EUROPE UK AL

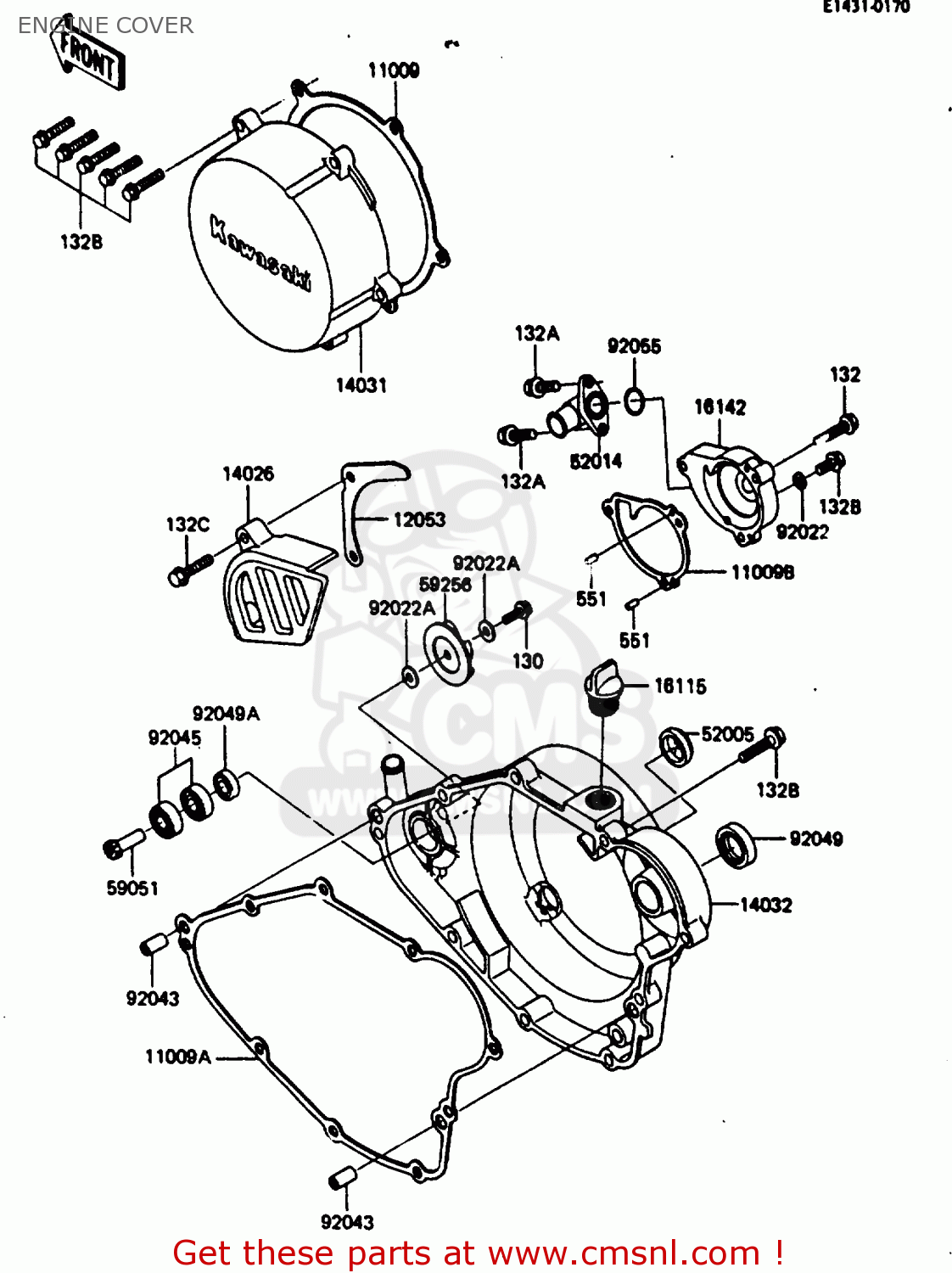

Engine cover diagram KX500-B1 1985 EUROPE UK AL
ENGINE COVER KX500-B1 1985 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091289
ref: 11009
GASKET,GENERATOR COVE (MCA)
€ 15.00
11009A
110091290
ref: 11009A
GASKET,CLUTCH COVER (MCA)
€ 17.50
11009B
110091466
ref: 11009B
GASKET,WATER PUMP COV
€ 5.00
12053
120531172
ref: 12053
GUIDE-CHAIN
€ 9.50
14026
140261119
ref: 14026
COVER-CHAIN
€ 12.50
14031
140311091
ref: 14031
COVER-GENERATOR
€ 57.00
14032
140321184
ref: 14032
COVER-CLUTCH
€ 267.00
16113
16115018
ref: 16113
PLUG,OIL FILLER
€ 7.00
16142
161421060
ref: 16142
COVER-PUMP,WATER
€ 43.00
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
52014
520141004
ref: 52014
ELBOW,CYLINDER
€ 25.50
59051
590511129
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 27.50
59256
592561057
ref: 59256
IMPELLER
€ 24.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92022A
920221380
ref: 92022A
WASHER,5.2X13X1
€ 2.50
92043
92042007
ref: 92043
PIN-DOWEL
€ 4.00
92045
920451048
ref: 92045
BEARING-BALL,#608
€ 11.50
92049
92049012
ref: 92049
OIL SEAL SB20285
€ 8.50
92049A
920491081
ref: 92049A
SEAL-OIL,A9567
€ 12.50
92055
92055035
ref: 92055
O RING
€ 3.00
130
130P0514
ref: 130
BOLT-FLANGED
€ 2.50
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0616
ref: 132A
BOLT-FLANGED-SMALL
€ 1.00
132B
132G0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132G0630
ref: 132C
BOLT-FLANGED-SMALL
€ 1.50
551
551A0408
ref: 551
PIN-DOWEL,4X8
€ 0.50
