CYLINDER HEAD/CYLINDER
KX500-B1 1985 EUROPE UK AL

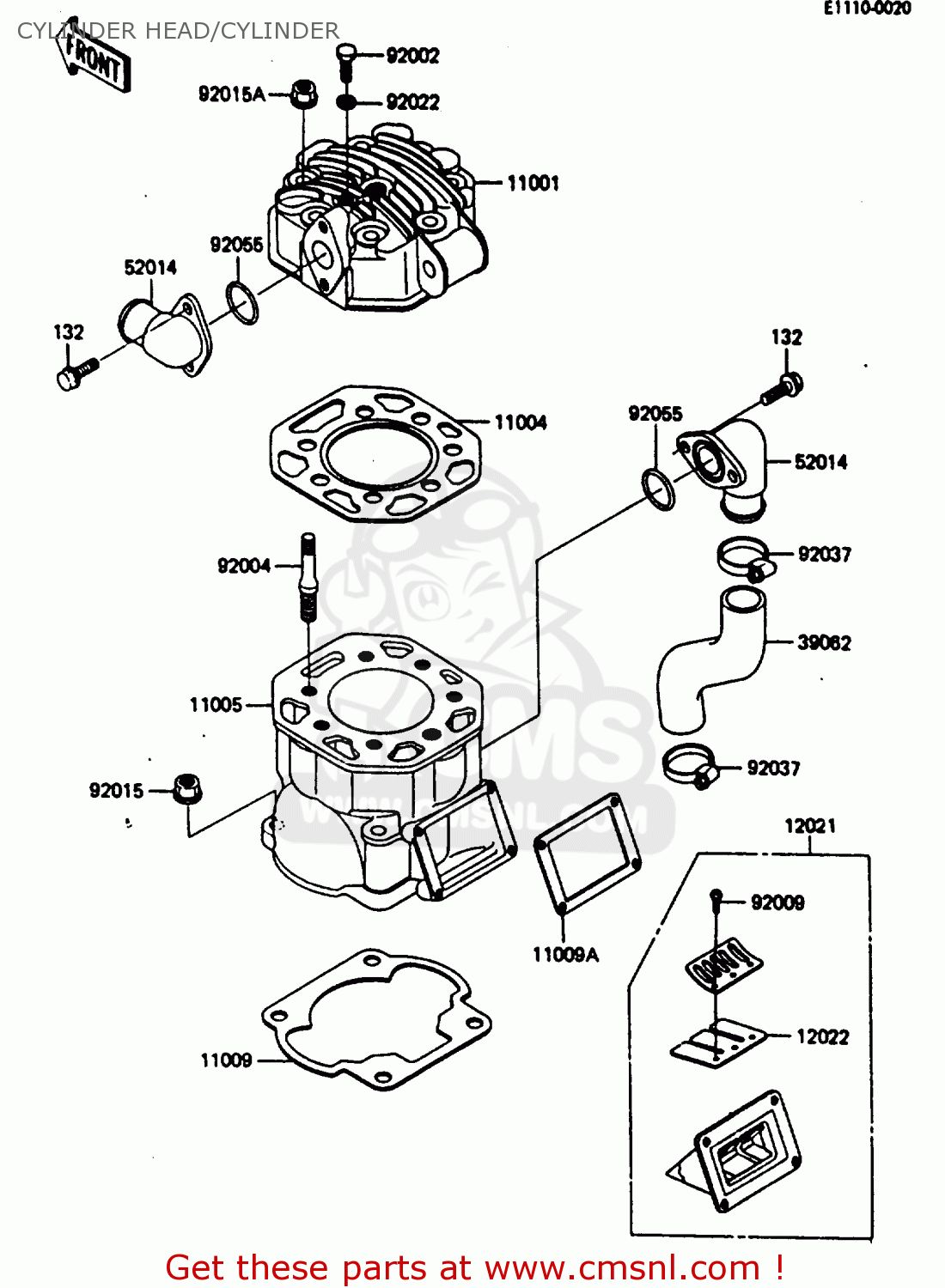

Cylinder head/cylinder diagram KX500-B1 1985 EUROPE UK AL
CYLINDER HEAD/CYLINDER KX500-B1 1985 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11001
110011189
ref: 11001
HEAD-CYLINDER
€ 102.00
11004
110041127
ref: 11004
GASKET-HEAD (MCA)
€ 29.50
11005
110051416
ref: 11005
CYLINDER-ENGINE
€ 799.00
11009
110091288
ref: 11009
GASKET,CYLINDER BASE (MCA)
€ 7.50
11009A
110091360
ref: 11009A
GASKET,REED VALVE (MCA)
€ 5.50
12021
120211057
ref: 12021
VALVE-ASSY-REED
€ 125.00
12022
120221051
ref: 12022
VALVE-REED
€ 10.50
39062
390621097
ref: 39062
HOSE-COOLING
€ 13.00
52014
520141004
ref: 52014
ELBOW,CYLINDER
€ 25.50
92002
920021222
ref: 92002
BOLT,6X10
€ 5.50
92004
920041022
ref: 92004
STUD,CYLINDER
€ 4.50
92009
920091014
ref: 92009
SCREW,REED VALVE
€ 2.00
92019
92015077
ref: 92019
NUT, 10MM
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92037
920371589
ref: 92037
CLAMP,COOLING HOSE
€ 13.00
92035
92055055
ref: 92035
'0'RING
€ 2.50
132
132G0616
ref: 132
BOLT-FLANGED-SMALL
€ 1.00
