CARBURETOR
KX500-B1 1985 EUROPE UK AL

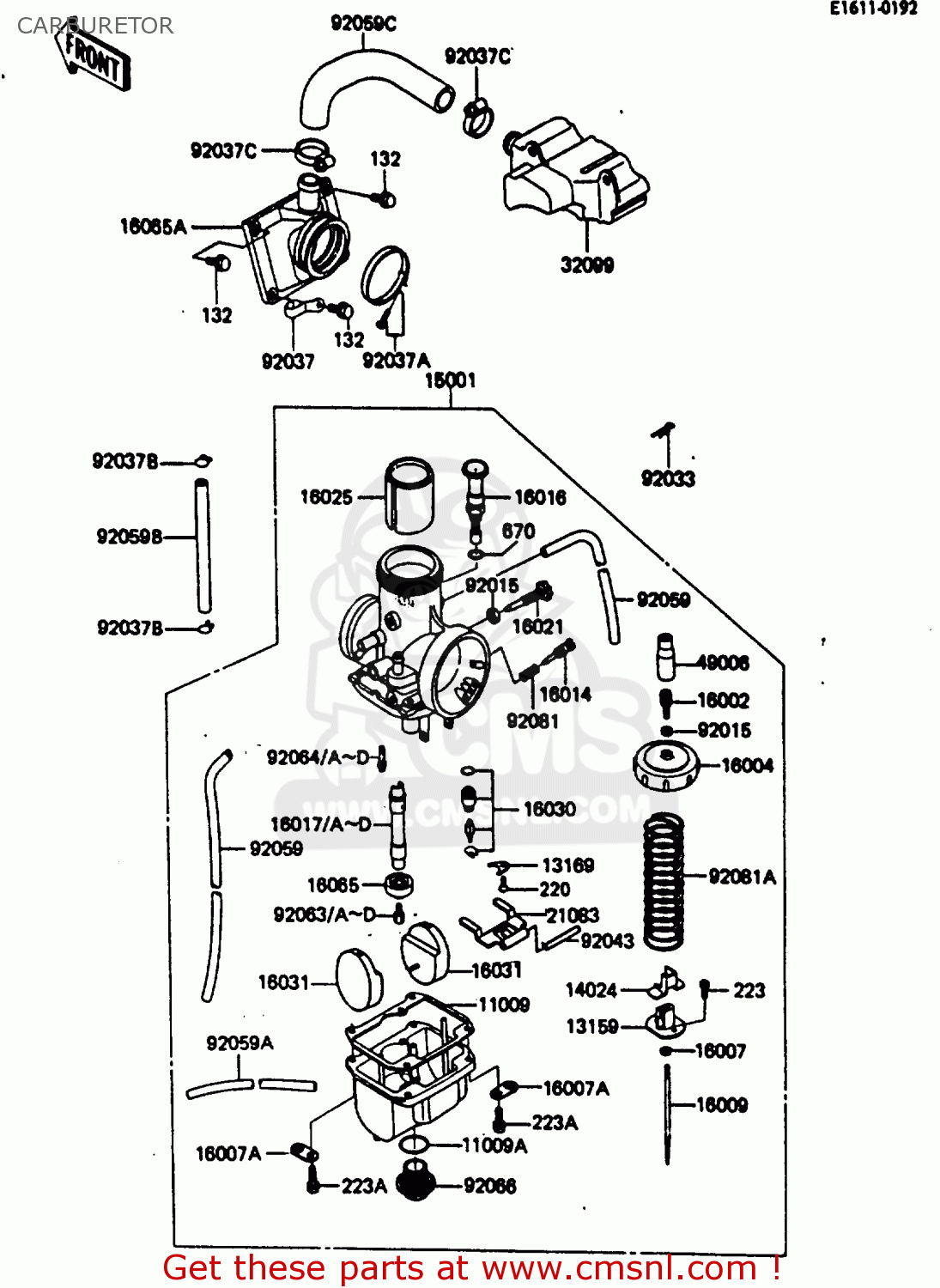

Carburetor diagram KX500-B1 1985 EUROPE UK AL
CARBURETOR KX500-B1 1985 EUROPE UK AL
×
prices are in EUR
ref
part #
description
quantity
11009
110091488
ref: 11009
GASKET,FLOAT CHAMBER
€ 10.00
11009A
16038009
ref: 11009A
GASKET,MAIN JET COVER
€ 5.50
13159
131591004
ref: 13159
CONNECTOR,THROTTLE
€ 9.00
13169
131691190
ref: 13169
PLATE,LOCK
€ 3.50
14024
140251678
ref: 14024
COVER,HEAD LAMP LENS
€ 44.00
19001
150011112
ref: 19001
CARBURETOR-ASSY
€ 249.00
16002
16002011
ref: 16002
CABLE ADJUSTER
€ 9.50
16004
160041056
ref: 16004
CAP-CHAMBER,MIXING
€ 43.50
16007
16007002
ref: 16007
SEAT-SPRING,THROTTLE
€ 8.50
10007A
160071007
ref: 10007A
SEAT-SPRING,THROTTLE
€ 6.50
10009
160091252
ref: 10009
NEEDLE-JET,6DJ2
€ 14.00
16014
16014006
ref: 16014
SCREW-PILOT AIR
€ 9.00
16016
160141064
ref: 16016
SCREW-PILOT AIR
€ 17.00
16017
160171214
ref: 16017
(OPTION)
JET-NEEDLE,R-6
€ 21.00
16017A
160171234
ref: 16017A
JET-NEEDLE,R-2
€ 27.00
16017B
160171235
ref: 16017B
(OPTION)
JET-NEEDLE,R-0
€ 23.00
16017C
160171236
ref: 16017C
(OPTION)
JET-NEEDLE,R-4
€ 26.50
16017D
160171295
ref: 16017D
(OPTION)
JET-NEEDLE,Q-8
€ 25.00
16021
160211104
ref: 16021
SCREW-THROTTLE STOP
€ 12.50
16025
160251118
ref: 16025
VALVE-THROTTLE,CA 3.0
€ 75.50
16030
160301060
ref: 16030
VALVE-FLOAT,3.0
€ 34.00
16031
160311062
ref: 16031
FLOAT
€ 35.50
16065
160651045
ref: 16065
HOLDER-CARBURETOR,NEE
€ 40.50
16065A
160651125
ref: 16065A
HOLDER-CARBURETOR
€ 76.00
21683
210831055
ref: 21683
ARM
€ 8.00
32099
320991080
ref: 32099
CASE,RESONATOR
€ 23.50
49006
490061085
ref: 49006
BOOT,CARBURETOR
€ 22.00
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92033
92036018
ref: 92033
CIRCLIP
€ 2.50
92037
92037016
ref: 92037
CLAMP,WIRING HARNESS
€ 1.50
92037A
920371313
ref: 92037A
CLAMP,CARBURETOR HOLD
€ 7.00
92037B
92037147
ref: 92037B
CLAMP,CHAIN OILER
€ 4.50
92037C
920371589
ref: 92037C
CLAMP,COOLING HOSE
€ 13.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92059
920591142
ref: 92059
TUBE,3.5X6.5X410
€ 16.50
92099A
920591211
ref: 92099A
TUBE,3.5X6.5X350
€ 7.00
92059B
920591431
ref: 92059B
TUBE,5.8X10.8X230
€ 4.50
92059C
920591560
ref: 92059C
TUBE
€ 17.00
92063
92063032
ref: 92063
(OPTION)
JET-MAIN,#360
€ 14.00
92063A
92063033
ref: 92063A
(OPTION)
JET-MAIN,#370
€ 11.50
92063B
92063034
ref: 92063B
JET-MAIN,#380
€ 10.50
92063C
92063032
ref: 92063C
(OPTION)
JET-MAIN,#360
€ 14.00
92063D
92063031
ref: 92063D
(OPTION)
JET-MAIN,#290
€ 8.50
92064
92064022
ref: 92064
(OPTION)
PILOT JET #30 ISO
€ 11.50
92064A
92064023
ref: 92064A
(OPTION)
JET-PILOT,#35
€ 13.00
92064B
92064024
ref: 92064B
JET-PILOT,#40
€ 14.00
92064C
92064044
ref: 92064C
(OPTION)
JET-PILOT,#45
€ 13.00
92064D
920641003
ref: 92064D
(OPTION)
PILOT JET,#15
€ 15.00
92066
920661206
ref: 92066
PLUG,MAIN JET
€ 19.00
92081
16015001
ref: 92081
PILOT AIR SCREW SPRING
€ 5.50
92081A
920811818
ref: 92081A
SPRING,THROTTLE VALVE
€ 8.50
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
€ 2.50
223
223B0307
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223B0516
ref: 223A
SCREW-PAN-WS-CROS
€ 2.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
