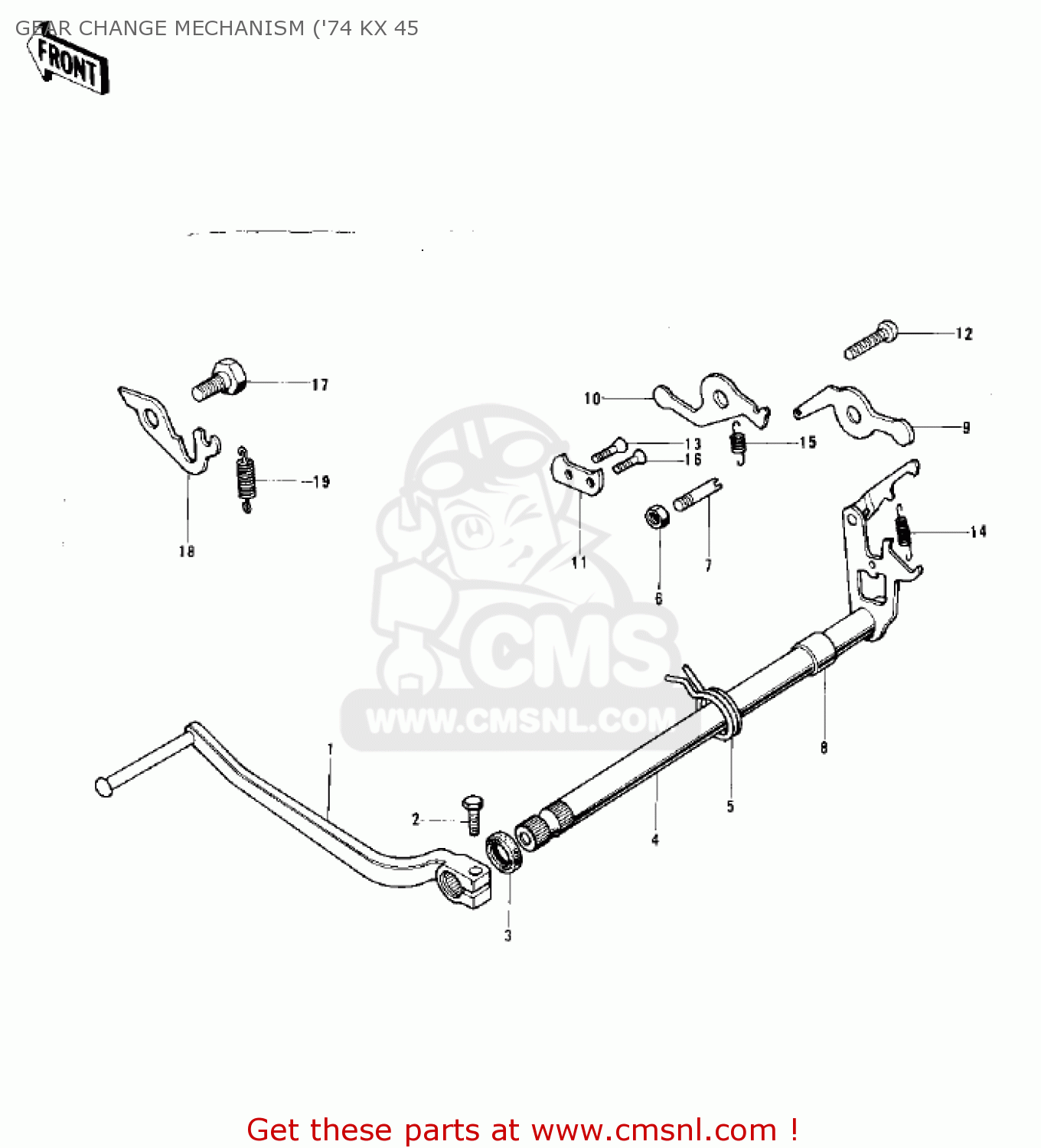

GEAR CHANGE MECHANISM ('74 KX 45
KX450 1974
Gear change mechanism ('74 kx 45 diagram KX450 1974
GEAR CHANGE MECHANISM ('74 KX 45 KX450 1974
×
prices are in EUR
ref
part #
description
quantity
1
13156052
ref: 1
PEDAL,GEAR CHANGE
€ 18.00
2
112G0620
ref: 2
BOLT 6X20
€ 1.00
2
112G0620
ref: 2
BOLT 6X20
€ 1.00
3
92051005A
ref: 3
OIL SEAL,TB13225.5
€ 5.50
4
13161031
ref: 4
LEVER ASSY,GEAR CHNG
€ 32.50
5
920811129
ref: 5
SPRING,TENTION
€ 6.50
6
312B0800
ref: 6
NUT,8MM
€ 0.50
7
920011401
ref: 7
BOLT,RETURN SPRING
€ 3.00
8
92027189
ref: 8
COLLAR,13X18X11.5
€ 6.00
9
13236004
ref: 9
LEVER ASSY,CHNG RETR
€ 14.00
10
13236005
ref: 10
LEVER ASSY,CHNG RETR
€ 5.00
11
13169012
ref: 11
PLATE,CHANGE DRAM
€ 11.50
12
92011023
ref: 12
SCREW-PAN HEAD
€ 2.50
13
220B0614
ref: 13
SCREW-PAN HEAD,6X14
€ 2.00
14
92081011
ref: 14
SPRING-CHANGE LEVER
€ 3.00
15
92081091
ref: 15
SPRING-COIL
€ 3.50
16
221B0614
ref: 16
SCREW-CNTSNK HD,6X14
€ 2.50
17
921501450
ref: 17
BOLT,CHANGE DRUM LEVE
€ 2.50
18
13168027
ref: 18
CHANGE DRUM LEVER
€ 13.50
19
92083023
ref: 19
DRUM LEVER SPRING
€ 9.50
