CRANKCASE ('74 KX 450)
KX450 1974

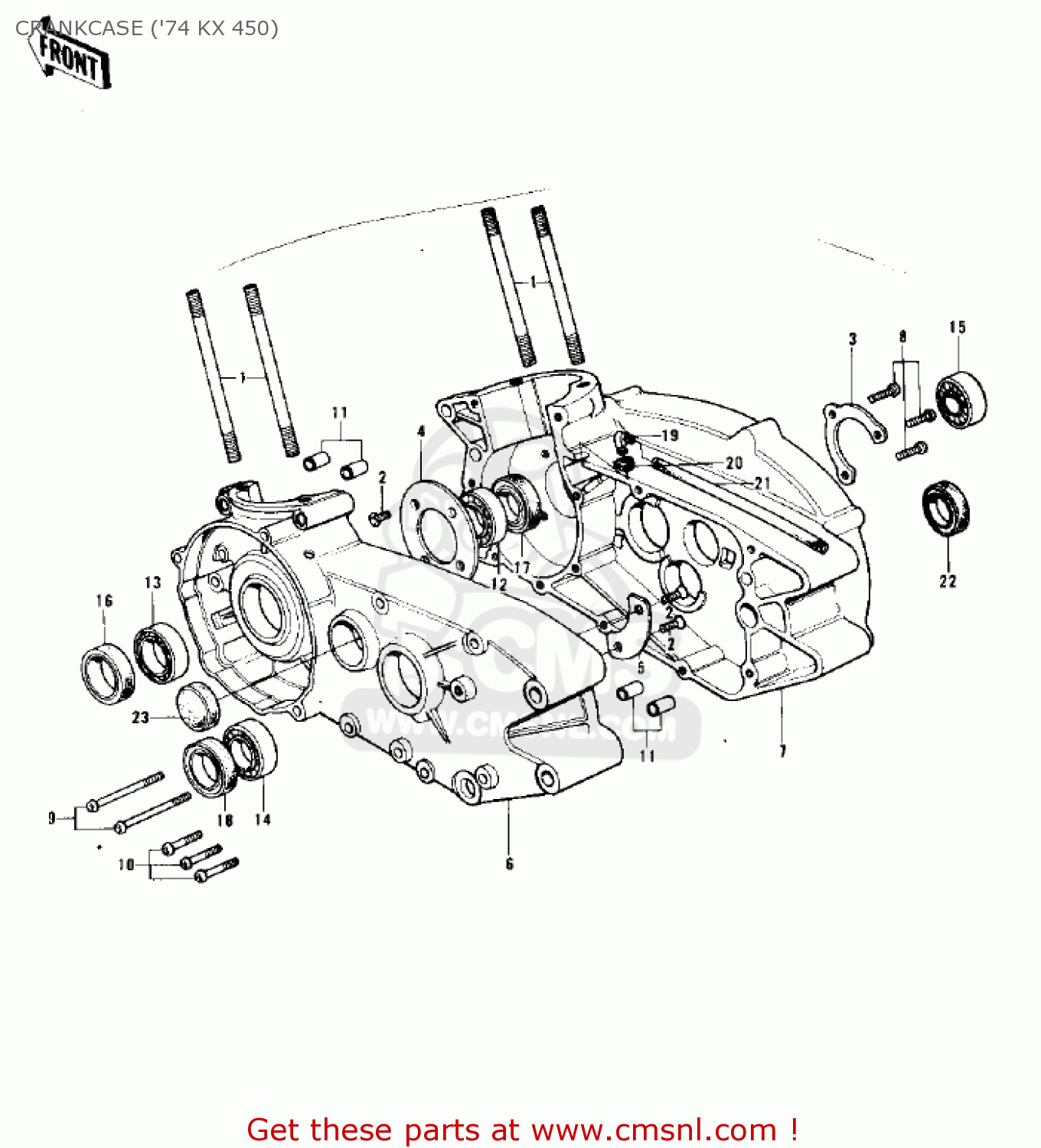

Crankcase ('74 kx 450) diagram KX450 1974
CRANKCASE ('74 KX 450) KX450 1974
×
prices are in EUR
ref
part #
description
quantity
1
172G1090
ref: 1
STUD,10X90
€ 7.50
2
221B0614
ref: 2
SCREW-CNTSNK HD,6X14
€ 2.50
3
14014025
ref: 3
PLATE,CRANK BEARING
€ 1.00
4
14014026
ref: 4
PLATE,CRANK BEARING
€ 2.50
5
14014027
ref: 5
PLATE,CRANK BEARING
€ 1.50
6
14002094
ref: 6
FLAT BLACK
CRANKCASE,L.H
€ 240.50
7
14003067
ref: 7
FLAT BACK
CRANKCASE,R.H
€ 267.50
8
220B0614
ref: 8
SCREW-PAN HEAD,6X14
€ 2.00
9
220B0650
ref: 9
SCREW-PAN HEAD,6X50
€ 2.00
10
220B0670
ref: 10
SCREW-PAN HEAD,6X70
€ 2.50
11
920431037
ref: 11
PIN,DOWEL,10X8.2X14
€ 0.50
12
92045016
ref: 12
BEARING-BALL,#SC0626C
€ 36.00
13
92045037
ref: 13
BEARING-BALL,#6306
€ 40.00
14
601B6205
ref: 14
BEARING-BALL,#6205C3
€ 14.00
15
601B6304
ref: 15
BEARING-BALL,#6304C3
€ 31.00
16
92050057
ref: 16
OIL SEAL,L.H CRNKCASE
€ 14.50
17
653B355008
ref: 17
OIL SEAL,TB35508
€ 6.00
18
92050033
ref: 18
SEAL-OIL,TB3040
€ 14.00
19
140691001
ref: 19
BREATHER
€ 17.50
20
92071042
ref: 20
GROMMET
€ 2.50
21
92059061
ref: 21
PIPE-BREATHER
€ 3.00
22
92028131
ref: 22
O.D=35M/M
BUSHING
€ 28.00
23
92073024
ref: 23
CAP,L.H CRANKCASE
€ 1.50
