SWINGARM
KX250T6F KX250F 2006 USA CANADA

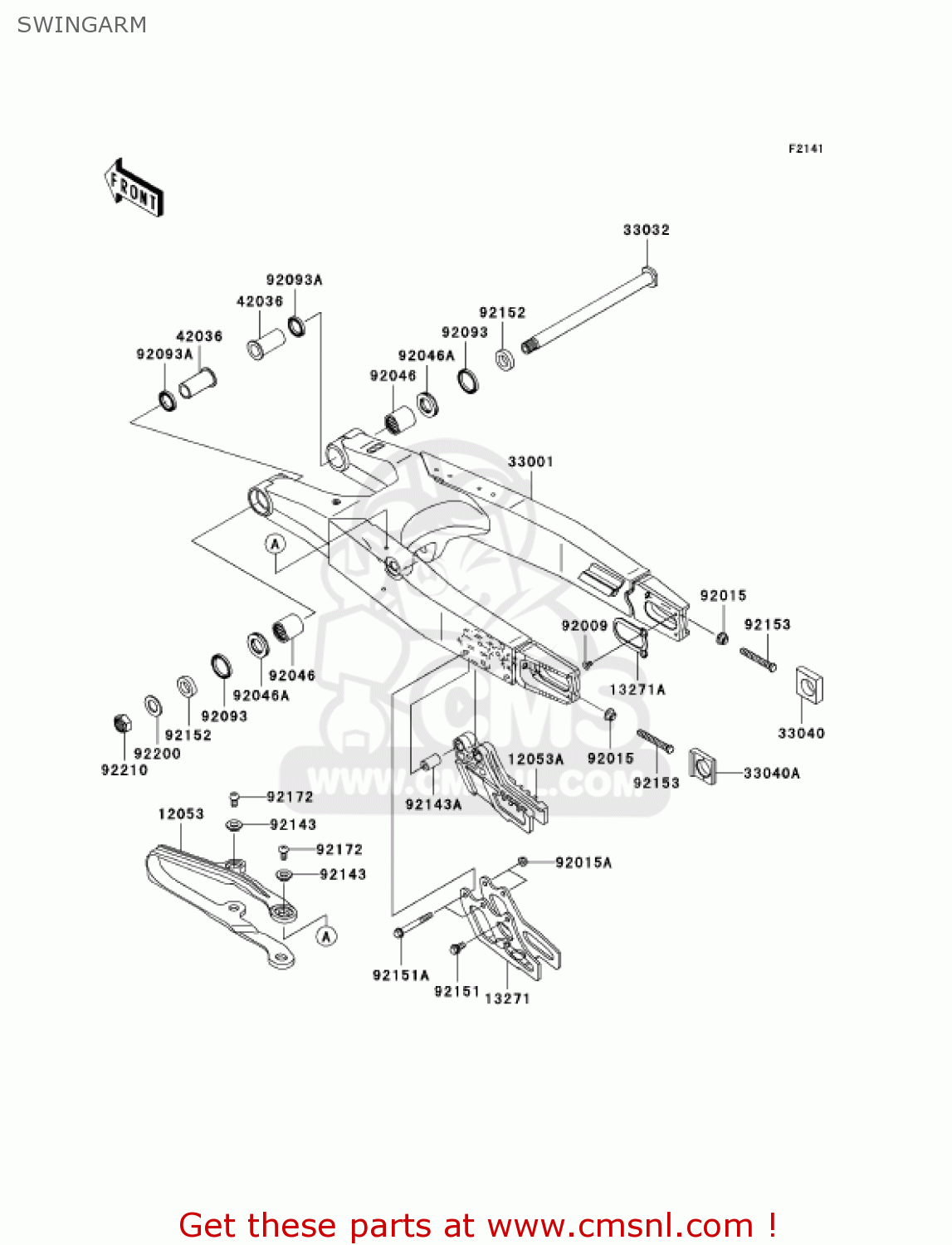

Swingarm diagram KX250T6F KX250F 2006 USA CANADA
SWINGARM KX250T6F KX250F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
12053
120530053
ref: 12053
GUIDE-CHAIN,DRIVE,FR
€ 55.50
12053A
120530061
ref: 12053A
GUIDE-CHAIN
€ 55.50
13271
132710593
ref: 13271
PLATE,CHAIN GUIDE
€ 39.50
13271A
132711833
ref: 13271A
PLATE,AXLE
€ 12.00
33001
330010069
ref: 33001
ARM-COMP-SWING
€ 1,111.50
33032
330320012
ref: 33032
SHAFT-SWING ARM
€ 37.50
33040
330400020
ref: 33040
ADJUSTER-CHAIN,RH
€ 10.50
33040A
330401189
ref: 33040A
ADJUSTER-CHAIN,LH
€ 11.00
42036
420360019
ref: 42036
SLEEVE,SWING ARM,L=47
€ 20.50
92009
920091828
ref: 92009
SCREW
€ 1.50
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151078
ref: 92015A
NUT,6M/M
€ 1.50
92046
920461174
ref: 92046
BEARING-NEEDLE,TA2230
€ 37.50
92046A
920461240
ref: 92046A
BEARING-NEEDLE,NTBR22
€ 18.00
92093
920931434
ref: 92093
SEAL,SDO29X35X4.5
€ 6.00
92093A
920931435
ref: 92093A
SEAL,SDO22X29X5
€ 6.00
92143
921431676
ref: 92143
COLLAR
€ 4.00
92143A
921431867
ref: 92143A
COLLAR,6.5X14X24
€ 4.00
92151
921511133
ref: 92151
BOLT,6X12
€ 1.50
92151A
921511234
ref: 92151A
BOLT,6X50
€ 1.50
92152
921520292
ref: 92152
COLLAR,17.1X29X6
€ 7.50
92153
921530620
ref: 92153
BOLT,8X56
€ 2.50
92172
921720119
ref: 92172
SCREW,5X8
€ 1.50
92200
922000285
ref: 92200
WASHER,17.2X30X2.3
€ 2.50
92210
922100285
ref: 92210
NUT,LOCK,16MM
€ 15.00
