ENGINE COVER(S)
KX250T6F KX250F 2006 USA CANADA

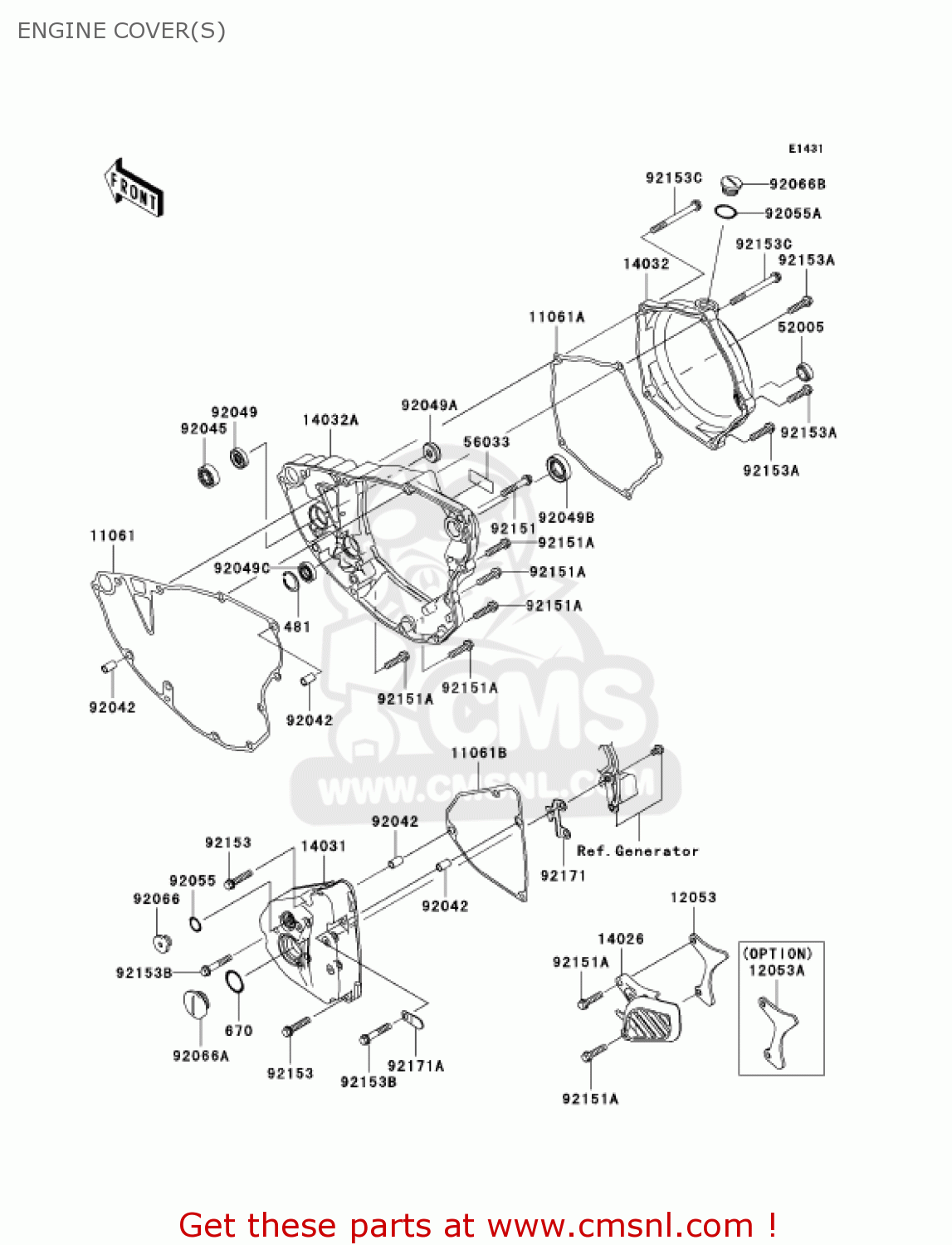

Engine cover(s) diagram KX250T6F KX250F 2006 USA CANADA
ENGINE COVER(S) KX250T6F KX250F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
481
481J2200
ref: 481
CIRCLIP-TYPE-C,22MM
€ 1.00
670
670B2022
ref: 670
O RING,22MM
€ 3.00
11061
110610030
ref: 11061
GASKET,CLUTCH COVER,I (NAS)
€ 28.00
11061A
110610031
ref: 11061A
GASKET,CLUTCH COVER,O (NAS)
€ 17.50
11061B
110610032
ref: 11061B
GASKET,GENERATOR COVE (NAS)
€ 17.50
12053
120530011
ref: 12053
GUIDE-CHAIN,13T
€ 8.50
12053A
120530018
ref: 12053A
(OPTION)
GUIDE-CHAIN,12T
€ 8.50
14026
140260026
ref: 14026
COVER-CHAIN
€ 20.00
14031
140310037
ref: 14031
COVER-GENERATOR
€ 66.50
14032
140320049
ref: 14032
COVER-CLUTCH,OUTER
€ 109.50
14032A
140320057
ref: 14032A
COVER-CLUTCH,INNER
€ 243.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
56033
560330049
ref: 56033
LABEL-MANUAL,OIL CAPA
€ 4.00
92042
92042007
ref: 92042
PIN-DOWEL
€ 4.00
92045
920451123
ref: 92045
BEARING-BALL,#628
€ 23.50
92049
920490060
ref: 92049
SEAL-OIL,8D 8 22 5 ZS
€ 8.50
92049A
920490061
ref: 92049A
SEAL-OIL
€ 8.50
92049B
92049013
ref: 92049B
OIL SEAL,SB18307
€ 9.50
92049C
920491519
ref: 92049C
SEAL-OIL,TC13225.5
€ 9.00
92055
920551011
ref: 92055
O RING,METER GEAR
€ 4.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920660039
ref: 92066
PLUG,12X9.1
€ 8.00
92066A
920660059
ref: 92066A
PLUG,OIL
€ 12.00
92066B
920660060
ref: 92066B
PLUG,OIL
€ 11.50
92151
921511135
ref: 92151
BOLT,6X35
€ 2.50
92151A
921511930
ref: 92151A
BOLT,6X25
€ 2.00
92153
921530601
ref: 92153
BOLT,6X30
€ 1.50
92153A
921530604
ref: 92153A
BOLT,6X25
€ 2.00
92153B
921530826
ref: 92153B
BOLT,6X35
€ 2.50
92153C
921530905
ref: 92153C
BOLT,6X65
€ 2.50
92171
921710195
ref: 92171
CLAMP,HARNESS
€ 5.00
92171A
921710295
ref: 92171A
CLAMP
€ 2.50
