CRANKCASE
KX250T6F KX250F 2006 USA CANADA

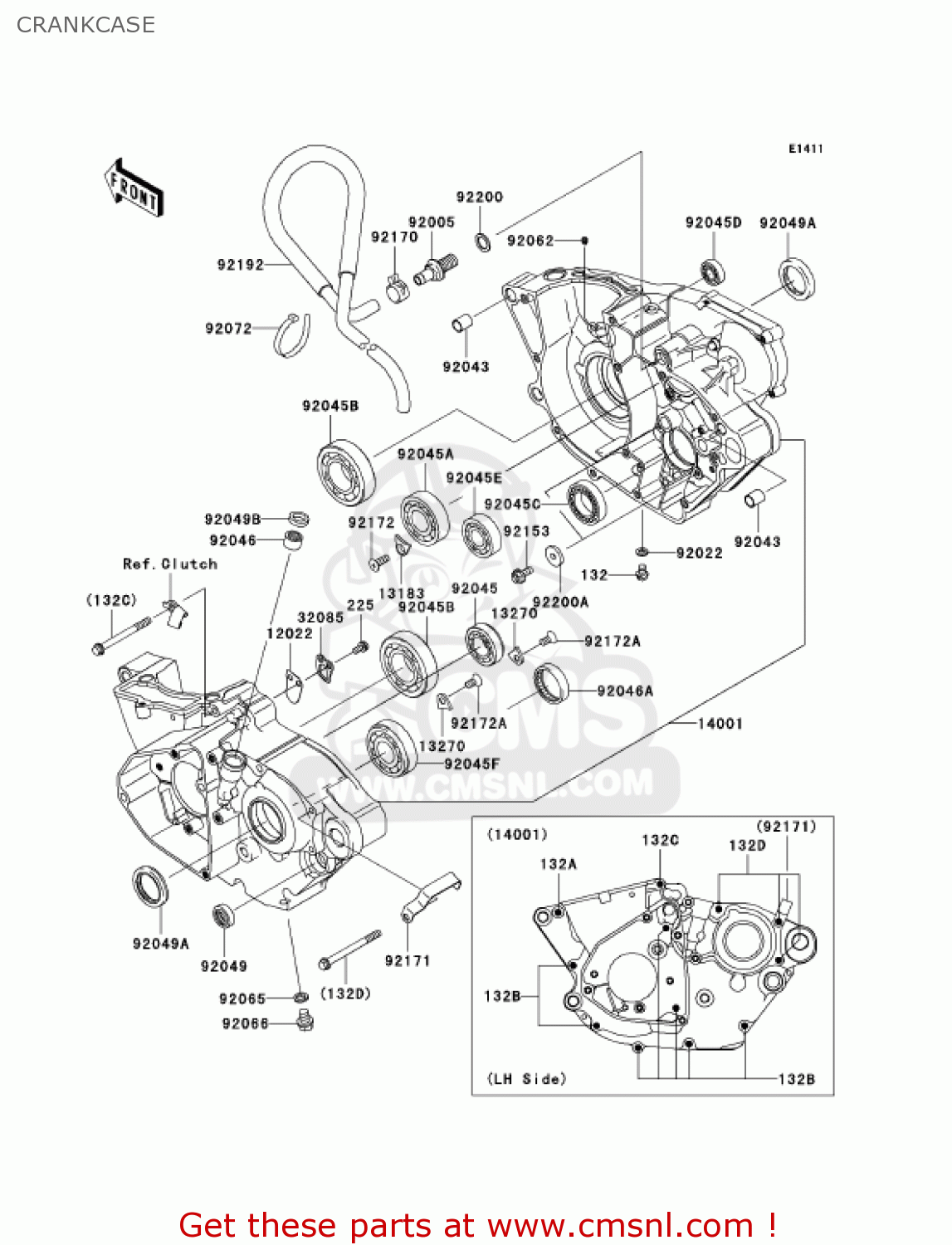

Crankcase diagram KX250T6F KX250F 2006 USA CANADA
CRANKCASE KX250T6F KX250F 2006 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
132
132G0608
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0640
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132G0660
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132G0665
ref: 132C
BOLT-FLANGED-SMALL
€ 2.50
132D
132G0670
ref: 132D
BOLT-FLANGED-SMALL
€ 1.50
225
225D0510
ref: 225
SCREW-PAN-WSP-CROS
€ 0.50
12022
120220006
ref: 12022
VALVE-REED
€ 7.00
13183
131831182
ref: 13183
PLATE
€ 3.00
13270
132701638
ref: 13270
PLATE
€ 2.50
14001
140010070
ref: 14001
SET-CRANKCASE
€ 648.00
32085
320850011
ref: 32085
STOPPER,VALVE-REED
€ 3.00
92005
920050014
ref: 92005
FITTING,BREATHER
€ 17.00
92022
92022304
ref: 92022
WASHER,PLAIN
€ 2.50
92043
920434009
ref: 92043
PIN,10.1X12X14
€ 4.00
92045
920450013
ref: 92045
BEARING-BALL,3TM-SX03
€ 32.00
92045A
920450051
ref: 92045A
BEARING-BALL,22X50X14
€ 32.00
92045B
920450052
ref: 92045B
BEARING, BALL
€ 69.00
92045C
920451058
ref: 92045C
BEARING-BALL,6905Z
€ 36.50
92045D
920451123
ref: 92045D
BEARING-BALL,#628
€ 23.50
92045E
920451291
ref: 92045E
BEARING-BALL,TMB203
€ 19.50
92045F
920451335
ref: 92045F
BEARING-BALL,SX04A81C
€ 66.00
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92046A
920461221
ref: 92046A
BEARING-NEEDLE
€ 30.00
92049
920490015
ref: 92049
SEAL-OIL,SD2 14 22 6-
€ 8.50
92049A
920490030
ref: 92049A
SEAL-OIL
€ 14.00
92049B
920491262
ref: 92049B
SEAL-OIL
€ 4.00
92062
920620004
ref: 92062
NOZZLE
€ 2.50
92065
92065058
ref: 92065
GASKET, 10,5X16X1 (NAS)
€ 2.50
92066
920661437
ref: 92066
PLUG,DRAIN
€ 4.00
92072
920723874
ref: 92072
BAND,L=152
€ 2.50
92153
921530878
ref: 92153
BOLT,6X14
€ 1.50
92170
921701938
ref: 92170
CLAMP
€ 2.50
92171
921710579
ref: 92171
CLAMP
€ 5.50
92172
921720087
ref: 92172
SCREW,6X14
€ 1.50
92172A
921720109
ref: 92172A
SCREW,6X8
€ 1.50
92192
921920102
ref: 92192
TUBE,BREATHER
€ 21.50
92200
922000087
ref: 92200
WASHER,12.5X18X1.6
€ 1.50
92200A
922000120
ref: 92200A
WASHER,6X20X3.2
€ 1.50
