FRONT FORK
KX250-R1 KX250 2005 USA CANADA

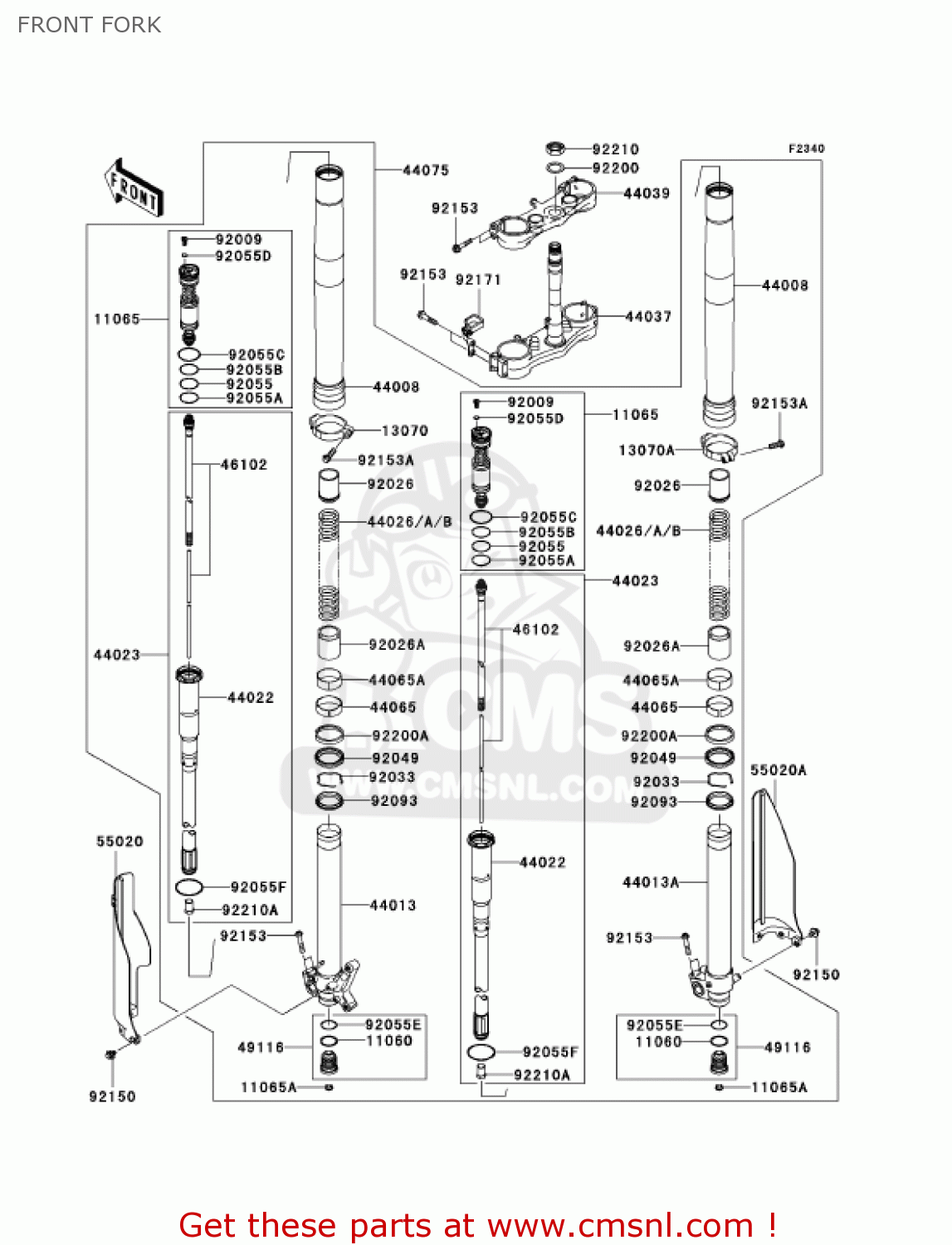

Front fork diagram KX250-R1 KX250 2005 USA CANADA
FRONT FORK KX250-R1 KX250 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11060
110601707
ref: 11060
GASKET (NAS)
€ 3.00
11065
110650094
ref: 11065
CAP
€ 88.00
11065A
110650097
ref: 11065A
CAP
€ 3.50
13070
130700025
ref: 13070
GUIDE,FORK,LH
€ 19.00
13070A
130700027
ref: 13070A
GUIDE,FORK,RH
€ 19.00
44008
440080010JS
ref: 44008
PIPE-FORK OUTER,BRONZ
€ 575.00
44013
440130036
ref: 44013
PIPE-FORK INNER,LH
€ 282.00
44013A
440130037
ref: 44013A
PIPE-FORK INNER,RH
€ 282.00
44022
440220013
ref: 44022
CYLINDER-FORK
€ 446.00
44023
440230030
ref: 44023
CYLINDER-SET-FORK
€ 970.50
44026
440260052
ref: 44026
SPRING-FRONT FORK,K=4
€ 66.00
44026A
440260054
ref: 44026A
(OPTION)
SPRING-FRONT FORK,K=4
€ 66.00
44026B
440260056
ref: 44026B
(OPTION)
SPRING-FRONT FORK,K=4
€ 69.50
44037
440370017
ref: 44037
HOLDER-FORK UNDER
€ 417.00
44039
440390017458A
ref: 44039
HOLDER-FORK UPPER,P.S
€ 144.50
44065
440650006
ref: 44065
BUSHING-FRONT FORK
€ 14.00
44065A
440651140
ref: 44065A
BUSHING-FRONT FORK
€ 15.00
44075
440750075JS
ref: 44075
DAMPER-SET-FORK,BRONZ
€ 2,388.50
46102
461020068
ref: 46102
ROD
€ 521.50
49116
491160011
ref: 49116
VALVE-ASSY
€ 164.50
55020
550200060RZ
ref: 55020
GUARD,FORK,LH,WHITE
€ 39.50
55020A
550200142RZ
ref: 55020A
GUARD,FORK,RH,WHITE
€ 40.50
92009
920091884
ref: 92009
SCREW
€ 4.50
92026
920260072
ref: 92026
SPACER
€ 27.00
92026A
920260073
ref: 92026A
SPACER
€ 18.50
92033
920331329
ref: 92033
RING-SNAP
€ 4.50
92049
920490056
ref: 92049
SEAL-OIL
€ 15.50
92055
920550071
ref: 92055
RING-O
€ 3.50
92055A
920550072
ref: 92055A
RING-O
€ 3.50
92055B
920550075
ref: 92055B
RING-O
€ 6.50
92055C
920550076
ref: 92055C
RING-O
€ 6.00
92055D
920551441
ref: 92055D
RING-O
€ 2.50
92055E
920551547
ref: 92055E
RING-O,FORK VALVE
€ 2.50
92055F
920551677
ref: 92055F
RING-O
€ 6.50
92093
920931566
ref: 92093
SEAL,FORK OUTER TUBE
€ 15.00
92150
921501340
ref: 92150
BOLT,6X14
€ 3.00
92153
921530484
ref: 92153
BOLT,FLANGED,8X40
€ 2.00
92153A
921530689
ref: 92153A
BOLT,FLANGED,6X20
€ 2.00
92171
921710414
ref: 92171
CLAMP,HOSE
€ 15.00
92200
922000023
ref: 92200
WASHER,25X36X1
€ 3.00
92200A
922000067
ref: 92200A
WASHER
€ 9.00
92210
922100066
ref: 92210
NUT,24MM
€ 8.50
92210A
922100196
ref: 92210A
NUT
€ 16.00
