CRANKSHAFT/PISTON(S)

KX250-R1 KX250 2005 USA CANADA

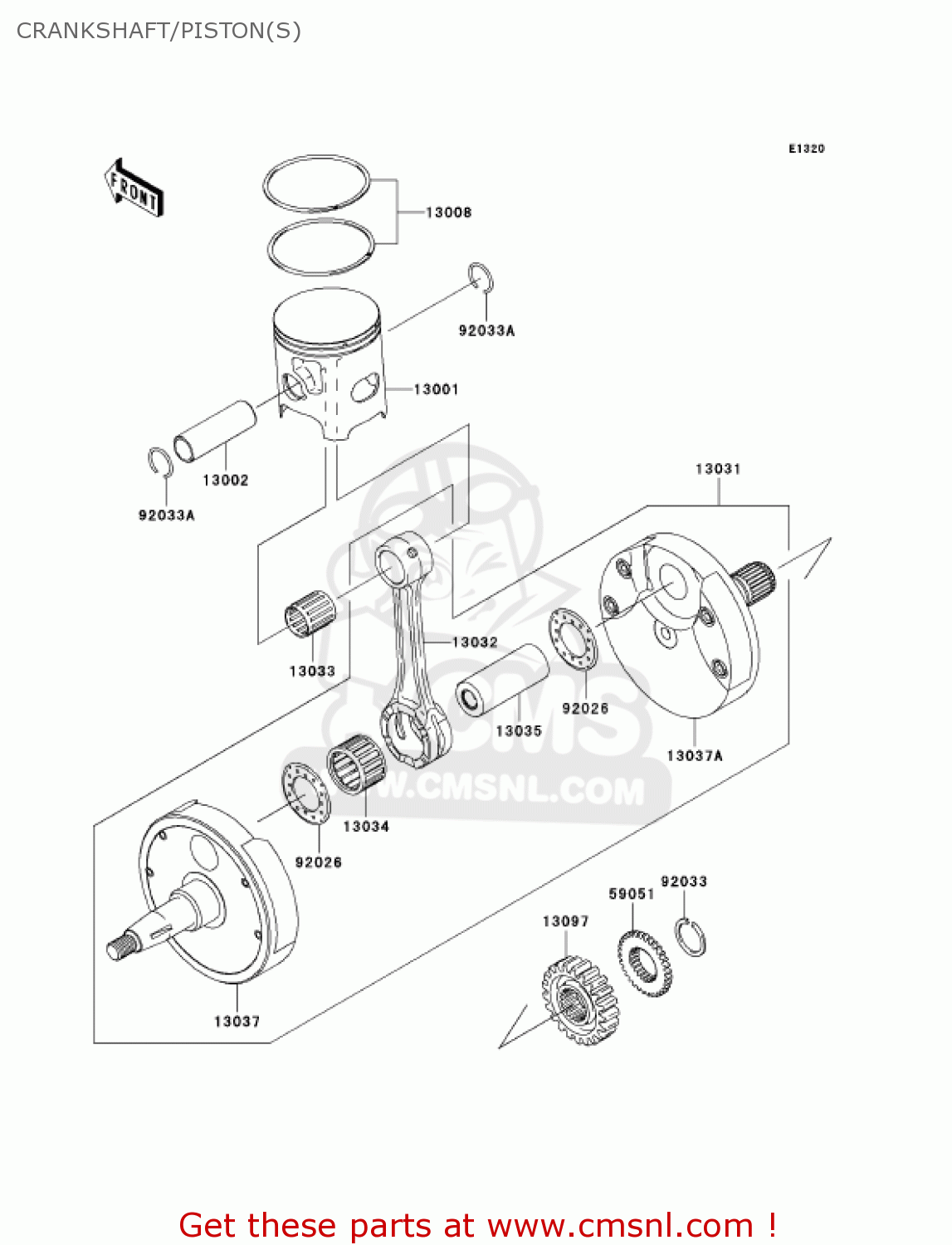

Crankshaft/piston(s) diagram KX250-R1 KX250 2005 USA CANADA

prices are in EUR

ref

part #

description

quantity

13001

130010028
ref: 13001

PISTON-ENGINE,SIZE B

€ 126.00

13002

130021098
ref: 13002

PIN-PISTON

€ 19.00

13008

130080013
ref: 13008

RING-SET-PISTON

€ 37.00

13031

130310025
ref: 13031

CRANKSHAFT-COMP

€ 667.00

13032

130321279
ref: 13032

COD-CONNECTING,SCM420

€ 78.00

13033

130331010
ref: 13033

BEARING-NEEDLE,KBK18X

€ 22.50

13034

130340005
ref: 13034

BEARING-BIG END,B4

€ 60.50

13035

130351089
ref: 13035

PIN-CRANK

€ 17.50

13037

130370032
ref: 13037

CRANKSHAFT,LH

€ 176.00

13037A

130370034
ref: 13037A

CRANKSHAFT,RH

€ 193.50

13097

130970022
ref: 13097

GEAR-PRIMARY SPUR,21T

€ 67.00

59051

590510035
ref: 59051

GEAR-SPUR,32T

€ 30.50

92026

920261607
ref: 92026

SPACER,24X42X1.6

€ 6.50

92033

92033025
ref: 92033

CIRCLIP,25MM

€ 3.00

92033A

920331336
ref: 92033A

RING-SNAP,PISTON PIN

€ 2.00
