CARBURETOR
KX250-R1 KX250 2005 USA CANADA

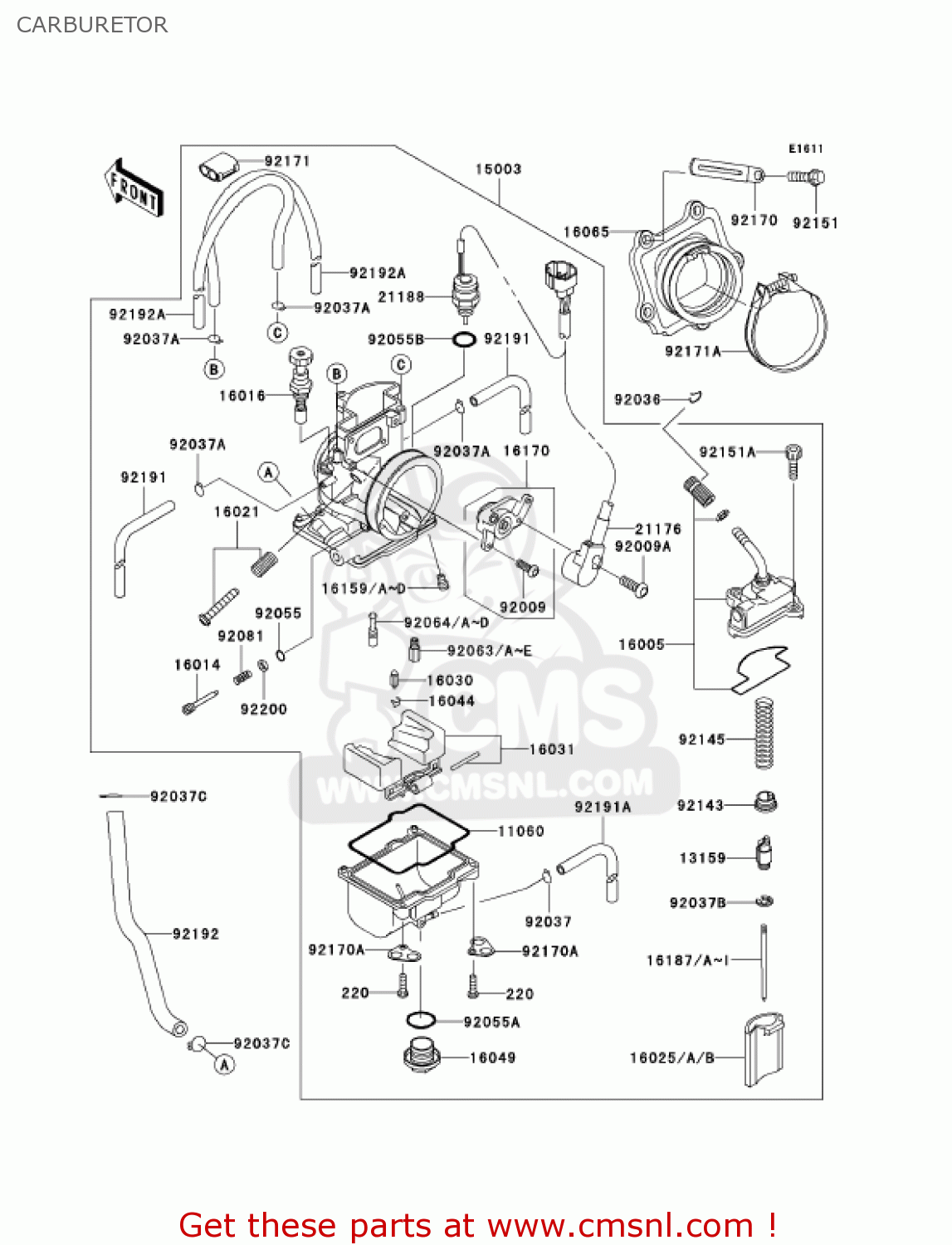

Carburetor diagram KX250-R1 KX250 2005 USA CANADA
CARBURETOR KX250-R1 KX250 2005 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11060
110601254
ref: 11060
GASKET,FLOAT CHAMBER (NAS)
€ 11.50
13159
131591063
ref: 13159
CONNECTOR,THROTTLE CA
€ 13.50
15003
150030045
ref: 15003
CARBURETOR-ASSY
€ 532.00
16005
160051083
ref: 16005
TOP-CHAMBER
€ 38.50
16014
160141058
ref: 16014
SCREW-PILOT AIR
€ 14.00
16016
160161085
ref: 16016
PLUNGER
€ 30.00
16021
160211198
ref: 16021
SCREW-THROTTLE STOP
€ 14.00
16025
160251215
ref: 16025
(OPTION)
VALVE-THROTTLE,#6
€ 89.50
16025A
160251216
ref: 16025A
(OPTION)
VALVE-THROTTLE,#7
€ 85.50
16025B
160251217
ref: 16025B
VALVE-THROTTLE,#8
€ 89.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311100
ref: 16031
FLOAT
€ 40.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16065
160650023
ref: 16065
HOLDER-CARBURETOR
€ 77.00
16159
161591053
ref: 16159
(OPTION)
JET-POWER,#50
€ 10.00
16159A
161591054
ref: 16159A
JET-POWER,#55
€ 9.50
16159B
161591055
ref: 16159B
(OPTION)
JET-POWER,#52
€ 10.00
16159C
161591056
ref: 16159C
(OPTION)
JET-POWER,#58
€ 10.00
16159D
161591057
ref: 16159D
(OPTION)
JET-POWER,#60
€ 9.00
16170
161700001
ref: 16170
LINK-ASSY
€ 74.50
16187
161870157
ref: 16187
(OPTION)
NEEDLE-JET,NFTF
€ 28.00
16187A
161870158
ref: 16187A
NEEDLE-JET,NFTG
€ 25.00
16187B
161870159
ref: 16187B
(OPTION)
NEEDLE-JET,NFTH
€ 25.00
16187C
161870160
ref: 16187C
(OPTION)
NEEDLE-JET,NFTW
€ 25.00
16187D
161870162
ref: 16187D
(OPTION)
NEEDLE-JET,NFUF
€ 25.00
16187E
161870163
ref: 16187E
(OPTION)
NEEDLE-JET,NFUG
€ 28.00
16187F
161870164
ref: 16187F
(OPTION)
NEEDLE-JET,NFUH
€ 25.00
16187G
161870165
ref: 16187G
(OPTION)
NEEDLE-JET,NFUW
€ 26.50
16187H
161870167
ref: 16187H
(OPTION)
NEEDLE-JET,NFTE
€ 25.00
16187I
161870168
ref: 16187I
(OPTION)
NEEDLE-JET,NFUE
€ 25.00
21176
211761114
ref: 21176
SENSOR
€ 76.00
21188
211880002
ref: 21188
SOLENOID
€ 71.00
92009
920091889
ref: 92009
SCREW
€ 1.50
92009A
920091981
ref: 92009A
SCREW,THROTTLE SENSOR
€ 1.50
92036
92036018
ref: 92036
CIRCLIP
€ 2.50
92037
920371142
ref: 92037
CLAMP,TUBE
€ 2.50
92037A
920371396
ref: 92037A
CLAMP,TUBE
€ 3.50
92037B
920371401
ref: 92037B
CLAMP,JET NEEDLE
€ 2.50
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
€ 4.50
92055
920551002
ref: 92055
O RING,PILOT ADJUST
€ 2.50
92055A
920551167
ref: 92055A
RING-O,MAIN JET COVER
€ 6.50
92055B
920551580
ref: 92055B
RING-O
€ 1.50
92063
920631366
ref: 92063
(OPTION)
JET-MAIN,#155
€ 10.00
92063A
920631367
ref: 92063A
(OPTION)
JET-MAIN,#158
€ 10.00
92063B
920631368
ref: 92063B
JET-MAIN,#160
€ 10.00
92063C
920631369
ref: 92063C
(OPTION)
JET-MAIN,#162
€ 9.50
92063D
920631370
ref: 92063D
(OPTION)
JET-MAIN,#165
€ 9.50
92063E
920631372
ref: 92063E
(OPTION)
JET-MAIN,#170
€ 9.50
92064
920641130
ref: 92064
(OPTION)
JET-PILOT,#52
€ 11.00
92064A
920641142
ref: 92064A
(OPTION)
JET-PILOT
€ 11.50
92064B
920641143
ref: 92064B
(OPTION)
JET-PILOT,#48
€ 11.50
92064C
920641144
ref: 92064C
JET-PILOT
€ 11.00
92064D
920641145
ref: 92064D
(OPTION)
JET-PILOT,#55
€ 11.50
92081
920811555
ref: 92081
SPRING,ADJUST SCREW
€ 3.50
92143
921431201
ref: 92143
COLLAR,THROTTLE VALVE
€ 15.00
92145
921450012
ref: 92145
SPRING,THROTTLE VALVE
€ 12.50
92151
921511252
ref: 92151
BOLT,FLANGED-SMALL,6X
€ 1.00
92151A
921511507
ref: 92151A
BOLT
€ 2.00
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
92170
921701514
ref: 92170
CLAMP
€ 2.50
92170A
921701582
ref: 92170A
CLAMP
€ 2.50
92171
921710246
ref: 92171
CLAMP
€ 4.50
92171A
921711105
ref: 92171A
CLAMP
€ 9.00
92191
921911254
ref: 92191
TUBE,4X7X480
€ 11.00
92191A
921911256
ref: 92191A
TUBE,3.5X6.5X330
€ 7.00
92192
921920129
ref: 92192
TUBE,L=190.2
€ 8.50
92192A
921920203
ref: 92192A
TUBE,4X7X580
€ 14.00
92200
922001466
ref: 92200
WASHER
€ 1.50
