REAR HUB

KX250-N1 KX250F 2004 USA CANADA

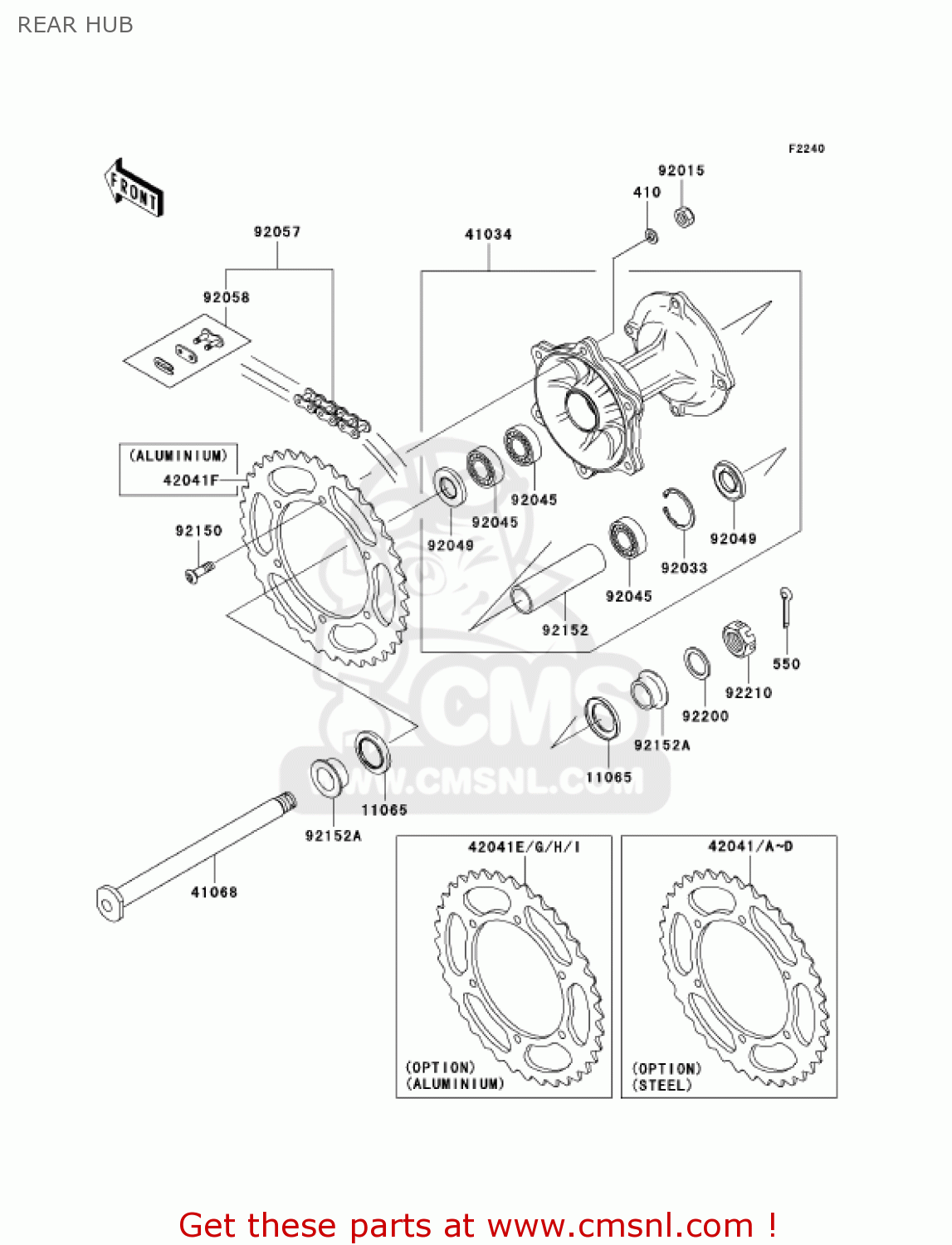

Rear hub diagram KX250-N1 KX250F 2004 USA CANADA

REAR HUB KX250-N1 KX250F 2004 USA CANADA
REAR HUB KX250-N1 KX250F 2004 USA CANADA
REAR HUB KX250-N1 KX250F 2004 USA CANADA
prices are in EUR
ref
part #
description
quantity
410
410B0800
ref: 410
WASHER-PLAIN-SMALL,8M
410B0800
€ 0.50
550
550D3035
ref: 550
PIN-COTTER,3.0X35
€ 2.00
11065
110651253
ref: 11065
CAP,AXLE
110651253
€ 4.50
41034
410340004
ref: 41034
DRUM-ASSY,REAR BRAKE
410340004
€ 392.00
41068
410681466
ref: 41068
AXLE,RR
410681466
€ 74.50
42041
420411381
ref: 42041
(OPTION)
SPROCKET-HUB,46T
420411381
€ 38.50
42041A
420411382
ref: 42041A
(OPTION)
SPROCKET-HUB,47T
420411382
€ 38.50
42041B
420411383
ref: 42041B
(OPTION)
SPROCKET, HUB, 48T
420411383
€ 38.50
42041C
420411384
ref: 42041C
(OPTION)
SPROCKET-HUB,49T
420411384
€ 38.50
42041D
420411408
ref: 42041D
(OPTION)
SPROCKET-HUB,50T
420411408
€ 37.00
42041E
420411447
ref: 42041E
(OPTION)
SPROCKET-HUB,47T,AL
420411447
€ 80.00
42041F
420411448
ref: 42041F
SPROCKET-HUB,48T,AL
420411448
€ 80.00
42041G
420411449
ref: 42041G
(OPTION)
SPROCKET-HUB,49T,AL
420411449
€ 80.00
42041H
420411450
ref: 42041H
(OPTION)
SPROCKET-HUB,50T,AL
420411450
€ 80.00
42041I
420411501
ref: 42041I
(OPTION)
SPROCKET-HUB,46T,AL
420411501
€ 74.50
92015
920151432
ref: 92015
NUT,8MM
920151432
€ 4.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92045
920451446
ref: 92045
BEARING-BALL,69052RS
920451446
€ 33.50
92049
920491614
ref: 92049
SEAL-OIL
920491614
€ 10.00
92057
920571541
ref: 92057
CHAIN,DRIVE,DID520DMA
920571541
€ 103.50
92058
920581074
ref: 92058
JOINT-CHAIN,DRIVE
920581074
€ 6.50
92150
921501978
ref: 92150
BOLT
921501978
€ 5.50
92152
921521427
ref: 92152
COLLAR,REAR BRAKE DRU
921521427
€ 23.00
92152A
921521473
ref: 92152A
COLLAR,RR AXLE,L=17
921521473
€ 20.00
92200
922001623
ref: 92200
WASHER,22.5X35X2.3
922001623
€ 1.00
92210
922101411
ref: 92210
NUT,CASTLE,22MM
922101411
€ 8.00
