CARBURETOR
KX250-N1 KX250F 2004 USA CANADA

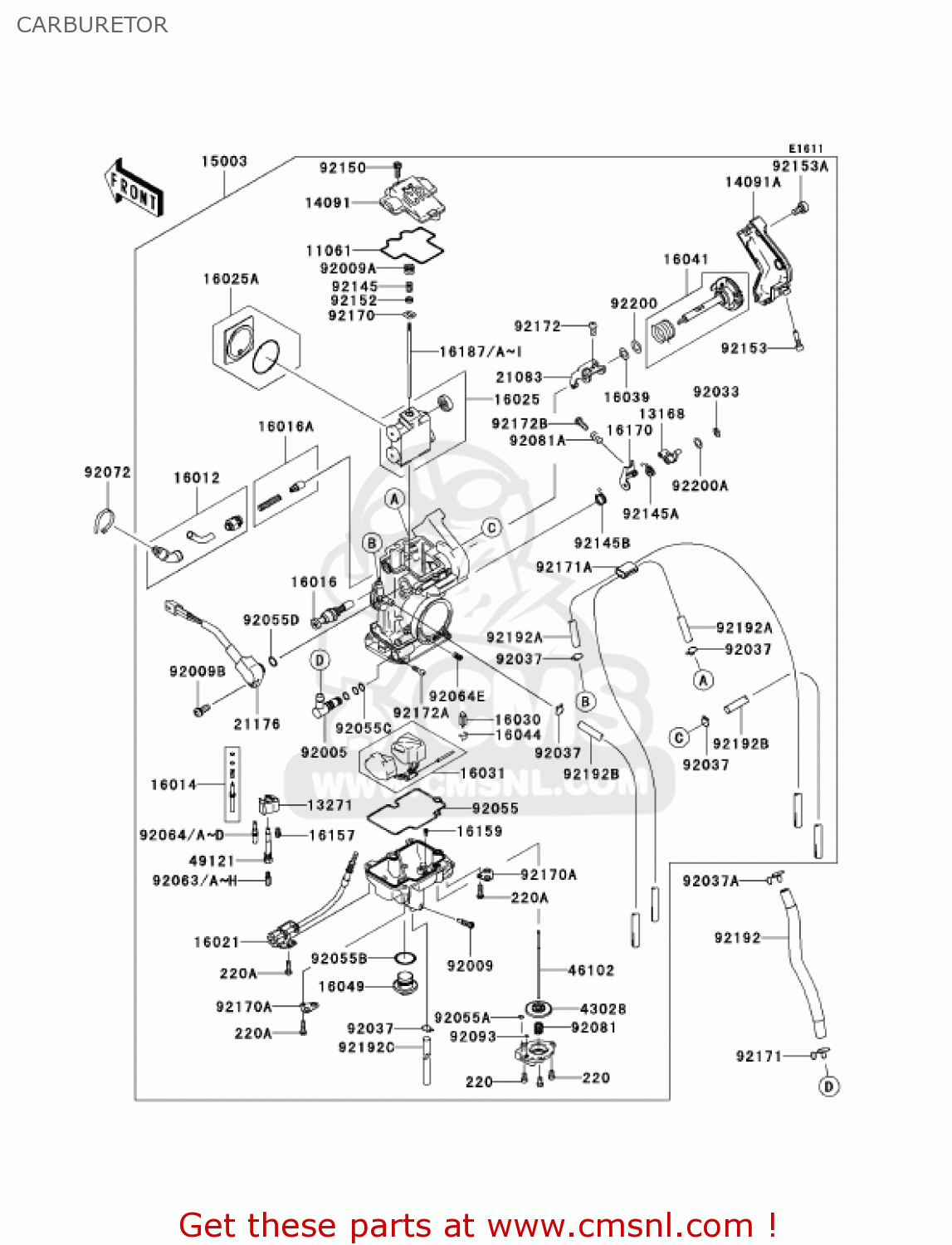

Carburetor diagram KX250-N1 KX250F 2004 USA CANADA
CARBURETOR KX250-N1 KX250F 2004 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
11061
110610077
ref: 11061
GASKET (NAS)
€ 8.50
13168
131680051
ref: 13168
LEVER
€ 21.00
13271
132710241
ref: 13271
PLATE
€ 12.00
14091
140910208
ref: 14091
COVER,TOP
€ 23.00
14091A
140910209
ref: 14091A
COVER
€ 42.50
15003
150030022
ref: 15003
CARBURETOR-ASSY
€ 1,108.00
16012
160120002
ref: 16012
CAP-STARTER PLUNGER
€ 15.00
16014
160140004
ref: 16014
SCREW-PILOT AIR
€ 13.00
16016
160160009
ref: 16016
PLUNGER
€ 31.50
16016A
160160012
ref: 16016A
PLUNGER
€ 12.50
16021
160210005
ref: 16021
SCREW-THROTTLE STOP
€ 37.50
16025
160250008
ref: 16025
VALVE-THROTTLE
€ 283.00
16025A
160250009
ref: 16025A
VALVE-THROTTLE
€ 110.50
16030
160301057
ref: 16030
VALVE-FLOAT
€ 37.00
16031
160311100
ref: 16031
FLOAT
€ 40.00
16039
160390230
ref: 16039
WASHER
€ 1.50
16041
160410002
ref: 16041
SHAFT-CARBURETOR
€ 146.50
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16049
160491051
ref: 16049
COVER-MAIN JET
€ 23.50
16157
161570001
ref: 16157
JET-STARTER,#68
€ 17.00
16159
161591057
ref: 16159
JET-POWER,#60
€ 9.00
16170
161700003
ref: 16170
LINK-ASSY
€ 12.00
16187
161870068
ref: 16187
(OPTION)
NEEDLE-JET,OBEKQ
€ 27.50
16187A
161870069
ref: 16187A
(OPTION)
NEEDLE-JET,OBEKR
€ 26.00
16187B
161870070
ref: 16187B
NEEDLE-JET,OBEKS
€ 26.50
16187C
161870071
ref: 16187C
(OPTION)
NEEDLE-JET,OBEKT
€ 26.00
16187D
161870072
ref: 16187D
(OPTION)
NEEDLE-JET,OBEKU
€ 27.50
16187E
161870092
ref: 16187E
(OPTION)
NEEDLE-JET,OBELQ
€ 27.50
16187F
161870093
ref: 16187F
(OPTION)
NEEDLE-JET,OBELR
€ 24.00
16187G
161870094
ref: 16187G
(OPTION)
NEEDLE-JET,OBELS
€ 26.00
16187H
161870095
ref: 16187H
(OPTION)
NEEDLE-JET,OBELT
€ 26.00
16187I
161870096
ref: 16187I
(OPTION)
NEEDLE-JET,OBELU
€ 27.50
21083
210830004
ref: 21083
ARM
€ 17.50
21176
211760016
ref: 21176
SENSOR
€ 74.00
43028
430280001
ref: 43028
DIAPHRAGM
€ 15.50
46102
461020033
ref: 46102
ROD
€ 18.00
49121
491210001
ref: 49121
NOZZLE-MAIN
€ 28.50
92005
920050016
ref: 92005
FITTING
€ 18.00
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92009A
920091876
ref: 92009A
SCREW
€ 9.50
92009B
920091981
ref: 92009B
SCREW,THROTTLE SENSOR
€ 1.50
92033
920330018
ref: 92033
RING-SNAP
€ 2.00
92037
920371396
ref: 92037
CLAMP,TUBE
€ 3.50
92037A
92037147
ref: 92037A
CLAMP,CHAIN OILER
€ 4.50
92055
920550066
ref: 92055
RING-O
€ 13.50
92055A
920551004
ref: 92055A
O RING
€ 2.50
92055B
920551167
ref: 92055B
RING-O,MAIN JET COVER
€ 6.50
92055C
920551223
ref: 92055C
RING-O,FUEL FITTING
€ 3.50
92055D
920551671
ref: 92055D
RING-O,THROTTLE SENSO
€ 2.50
92063
920631371
ref: 92063
(OPTION)
JET-MAIN,#168
€ 10.00
92063A
920631372
ref: 92063A
(OPTION)
JET-MAIN,#170
€ 9.50
92063B
920631373
ref: 92063B
(OPTION)
JET-MAIN,#172
€ 10.50
92063C
920631374
ref: 92063C
(OPTION)
JET-MAIN,#175
€ 9.50
92063D
920631375
ref: 92063D
JET-MAIN,#178
€ 10.50
92063E
920631376
ref: 92063E
(OPTION)
JET-MAIN,#180
€ 11.00
92063F
920631377
ref: 92063F
(OPTION)
JET-MAIN,#182
€ 11.00
92063G
920631378
ref: 92063G
(OPTION)
JET-MAIN,#185
€ 11.50
92063H
920631379
ref: 92063H
(OPTION)
JET-MAIN,#188
€ 9.50
92064
920641138
ref: 92064
(OPTION)
JET-PILOT,#35
€ 11.50
92064A
920641139
ref: 92064A
(OPTION)
JET-PILOT,#38
€ 11.50
92064B
920641140
ref: 92064B
JET-PILOT,#40
€ 11.50
92064C
920641141
ref: 92064C
(OPTION)
JET-PILOT,#42
€ 11.50
220
220D0408
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0414
ref: 220A
SCREW-PAN-CROS
€ 2.00
92064D
920641142
ref: 92064D
(OPTION)
JET-PILOT
€ 11.50
92064E
920641160
ref: 92064E
JET-PILOT,#100
€ 12.50
92072
920723875
ref: 92072
BAND,L=100
€ 2.00
92081
920811092
ref: 92081
SPRING,DIAPHRAGM
€ 8.00
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92093
920931046
ref: 92093
SEAL-"U"RING
€ 4.00
92145
921450164
ref: 92145
SPRING
€ 12.50
92145A
921450166
ref: 92145A
SPRING
€ 12.50
92145B
921450167
ref: 92145B
SPRING
€ 12.50
92150
921501426
ref: 92150
BOLT,SOCKET,4X12
€ 3.50
92152
921520141
ref: 92152
COLLAR
€ 7.00
92153
921530638
ref: 92153
BOLT
€ 4.00
92153A
921530639
ref: 92153A
BOLT
€ 4.00
92170
921701204
ref: 92170
CLAMP,JET NEEDLE
€ 2.00
92170A
921701582
ref: 92170A
CLAMP
€ 2.50
92171
921710149
ref: 92171
CLAMP
€ 2.50
92171A
921710246
ref: 92171A
CLAMP
€ 4.50
92172
921720127
ref: 92172
SCREW
€ 3.50
92172A
921720128
ref: 92172A
SCREW
€ 3.50
92172B
921720129
ref: 92172B
SCREW
€ 3.50
92192
921920031
ref: 92192
TUBE,FUEL
€ 12.00
92192A
921920083
ref: 92192A
TUBE
€ 5.00
92192B
921920084
ref: 92192B
TUBE
€ 5.00
92192C
921920085
ref: 92192C
TUBE
€ 4.50
92200
922000107
ref: 92200
WASHER
€ 2.00
92200A
922001434
ref: 92200A
WASHER,LINK ARM,STAIN
€ 1.50
