KICKSTARTER MECHANISM

KX250-N1 KX250F 2004 USA CANADA

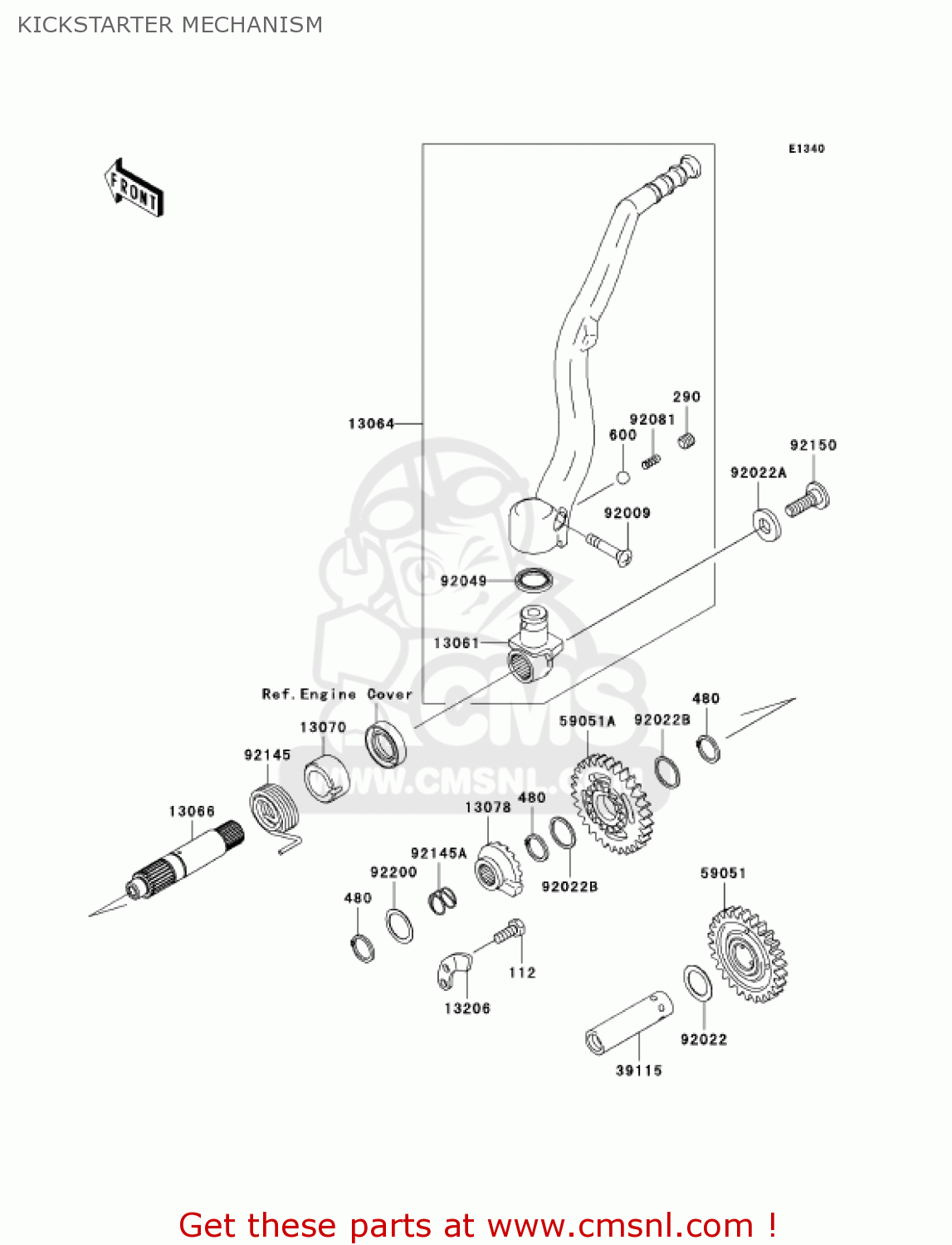

Kickstarter mechanism diagram KX250-N1 KX250F 2004 USA CANADA

KICKSTARTER MECHANISM KX250-N1 KX250F 2004 USA CANADA
KICKSTARTER MECHANISM KX250-N1 KX250F 2004 USA CANADA
KICKSTARTER MECHANISM KX250-N1 KX250F 2004 USA CANADA
prices are in EUR
ref
part #
description
quantity
112
112G0616
ref: 112
BOLT UPSET,6X16
112G0616
€ 1.00
290
290P0808
ref: 290
SCREW-SET-SOCKET
290P0808
€ 2.00
480
480J1800
ref: 480
CIRCLIP-TYPE-C,18MM
480J1800
€ 1.00
600
600A0800
ref: 600
BALL-STEEL,1/4
600A0800
€ 0.50
13061
130610052
ref: 13061
BOSS
130610052
€ 64.00
13064
130640015
ref: 13064
LEVER-ASSY-KICK
130640015
€ 185.00
13066
130660004
ref: 13066
SHAFT-KICK
130660004
€ 90.50
13070
130700011
ref: 13070
GUIDE
130700011
€ 14.00
13078
130780005
ref: 13078
RATCHET
130780005
€ 61.00
13206
132060003
ref: 13206
GUIDE-KICK
€ 8.00
39115
391150005
ref: 39115
SHAFT-IDLER,KICK
391150005
€ 28.00
59051
590510006
ref: 59051
GEAR-SPUR,KICK STARTE
590510006
€ 102.50
59051A
590510033
ref: 59051A
GEAR-SPUR,KICK STARTE
590510033
€ 105.00
92009
920091607
ref: 92009
SCREW,6X27
920091607
€ 5.50
92022
920221614
ref: 92022
WASHER,17.3X25X0.5
920221614
€ 2.50
92022A
920221944
ref: 92022A
WASHER,10X22X3.2
920221944
€ 3.00
92022B
92022271
ref: 92022B
WASHER,PLAIN
92022271
€ 3.50
92049
920491387
ref: 92049
SEAL-OIL
920491387
€ 4.00
92081
92081020
ref: 92081
SPRING-KICK PEDAL
92081020
€ 2.50
92145
921450051
ref: 92145
SPRING,KICK STARTER
921450051
€ 18.00
92145A
921450162
ref: 92145A
SPRING
921450162
€ 9.00
92150
921501858
ref: 92150
BOLT,DISC PLATE,8X25
921501858
€ 5.00
92200
922000075
ref: 92200
WASHER,18.3X24X0.5
922000075
€ 1.50
